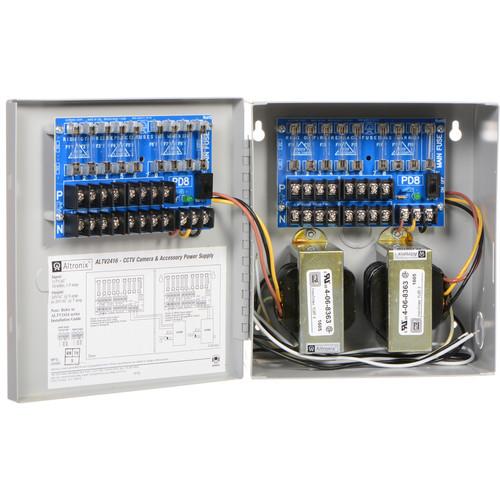

User Manual for ALTRONIX 16-Output Power Supply Click to enlarge the picture
Contents of the user manual for the ALTRONIX 16-Output Power Supply
- Product category: Power Supplies ALTRONIX
- Brand: ALTRONIX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ALTRONIX Power Supplies
|
User manual for the ALTRONIX 16-Output Power Supply contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ALTRONIX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ALTRONIX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ALTRONIX product will considerably shorten its lifespan!
|
Product description Power up to 16 CCTV cameras and accessories with the 16-Output Power Supply from ALTRONIX. This power supply provides 24 or 28 VAC power distributed over 16 fused-protected outputs with a total output supply current of 3.5A with surge suppression. Spare fuses are included with this power supply. - Provides 24 or 28 VAC power to up to 16 CCTV cameras and accessories
- 16 fuse-protected outputs
- Maximum supply current of 3.5A
UPC: 782239930166 In the Box ALTRONIX 16-Output Power Supply (24 VAC @ 8A / 28 VAC @ 7A) Spare Fuses Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ALTRONIX 16-Output Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersALTRONIX ALTV2416 Specs | | | Power | 115 VAC, 50/60 Hz, 1.9 A | | | | Power | 24 or 28 VAC | | Quantity | 16 x outputs (fuse-protected) | | Supply Current | 24 VAC @ 8 A (192 VA) supply current (0.5 A per device, 3.5 A maximum) or 28 VAC @ 7 A (196 VA) supply current (0.438 A per device, 3.5 A maximum) | | Output Rating | 3.5 A | | Functions | Surge suppression | | | | Operating Temperature | 32 to 120°F (0 to 49°C) | | BTU/h | 24 VAC: 98.27
- 28 VAC: 100.32 | | Requirements | System AC Input: 218.5 VA | | Fuse Rating | Secondary: 10 A, 250 V | | | | Indicators | AC power LED indicator | | Mounting | Wall-mountable, 1/2 and 3/4" (12.7 and 19 mm) knockouts | | Dimensions | 8.5 x 7.5 x 3.5" (216 x 191 x 83 mm) | | Weight | 9.1 lb (4.1 kg) | | | | Package Weight | 10.245 lb | | Box Dimensions (LxWxH) | 9.45 x 8.25 x 5.05" |
