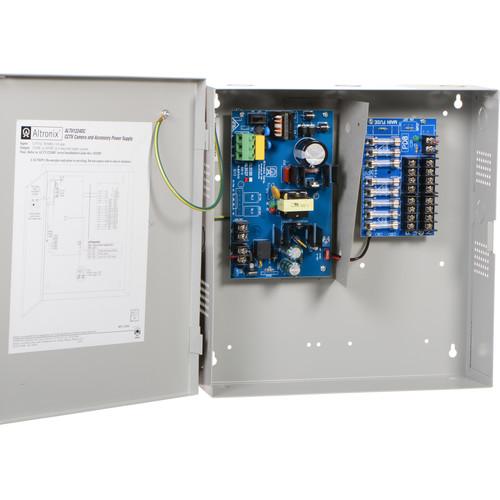

User Manual for ALTRONIX 8-Output Power Supply Click to enlarge the picture
Contents of the user manual for the ALTRONIX 8-Output Power Supply
- Product category: Power Supplies ALTRONIX
- Brand: ALTRONIX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ALTRONIX Power Supplies
|
User manual for the ALTRONIX 8-Output Power Supply contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ALTRONIX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ALTRONIX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ALTRONIX product will considerably shorten its lifespan!
|
Product description Power up to 8 CCTV cameras and accessories with the 8-Output Power Supply from ALTRONIX. This power supply provides 12 or 24 VDC power distributed over eight fuse-protected outputs with a total output supply current of 4A. Power outputs are filtered and electronically regulated. This unit is housed in a NEMA 1 enclosure for use indoors. - Provides 12 or 24 VDC power to up to 8 CCTV cameras and accessories
- Maximum supply current of 4A
- Filtered and electronically regulated outputs
UPC: 782239930814 In the Box ALTRONIX 8-Output Power Supply Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ALTRONIX 8-Output Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersALTRONIX ALTV1224DC Specs | | | Power | 115 VAC, 50/60 Hz, 1.45 A | | | | Power | 12 or 24 VDC field adjustable | | Quantity | 8 x outputs (fuse-protected) | | Supply Current | Continuous: 4 A total (0.5 A per device, 3.5 A maximum) | | Output Rating | 3.5 A | | Functions | Filtered, electronically regulated | | | | Operating Temperature | 32 to 120°F (0 to 49°C) | | BTU/h | 24.57 to 49.13 | | Requirements | 166.75 VA | | | | Indicators | AC input and DC output LED indicators | | Enclosure | NEMA 1-rated | | Mounting | Wall-mountable, 1/2 and 3/4" (12.7 and 19 mm) knockouts | | Dimensions | 13.5 x 13 x 3.25" (343 x 330 x 82.6 mm) | | Weight | 7.8 lb (3.5 kg) | | | | Package Weight | 8.25 lb | | Box Dimensions (LxWxH) | 14.6 x 13.1 x 4.2" |
