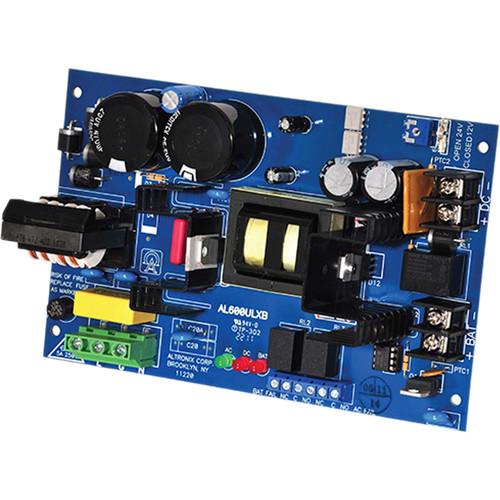

User Manual for ALTRONIX AL600ULXB Power Supply Board Click to enlarge the picture
Contents of the user manual for the ALTRONIX AL600ULXB Power Supply Board
- Product category: Power Supplies ALTRONIX
- Brand: ALTRONIX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ALTRONIX Power Supplies
|
User manual for the ALTRONIX AL600ULXB Power Supply Board contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ALTRONIX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ALTRONIX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ALTRONIX product will considerably shorten its lifespan!
|
Product description The AL600ULXB Power Supply Board from Altronix is a power supply/charger that converts a 115 VAC / 60 Hz input into a 12/24 VDC selectable non power-limited output. It offers AC failure and low battery supervision, along with short-circuit and thermal overload protection. The backup battery is available separately. - AC failure and low battery supervision (battery available separately)
- Short-circuit and thermal overload protection
- LED indicators for when VAC input is present, when DC output is powered, and when battery is discharged or not connected
UPC: 782239932542 In the Box ALTRONIX AL600ULXB Power Supply Board Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ALTRONIX AL600ULXB Power Supply Board in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersALTRONIX AL600ULXB Specs | Input | Voltage: 115 VAC 60 Hz, 3.5 A Maximum
Fusing: 5 A / 250 V | | Output | Voltage: 12 or 24 VDC Selectable
Current: 6 A Continuous Supply Current
Other: Short-Circuit and Thermal Overload Protection (Filtered and Regulated) | | Backup Battery | Type: Sealed Lead Acid or Gel Type (Available Separately)
Failover: Upon AC Loss, Instantaneous | | Supervision | AC Failure: Form C Contacts
Battery: Form C Contacts | | LED Indicators | Input: 115 VAC is Present
DC Output: Powered
Battery: Discharged or Not Connected | | Operating Temperature | 32 to 120°F / 0 to 49°C | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Relative Humidity | 85% (±5%) | | Agency Listing | UL: Access Control (UL294), Burglar Alarm (UL603), Fire Alarm (UL1481)
cUL: Signal Equipment: CSA C22.2 No.205-M1983 | | Btu | 12 VDC: 37 Btu/Hour
24 VDC: 74 Btu/Hour | | Dimensions (L x W x H) | 7.1 x 4.5 x 2" / 180.3 x 114.3 x 50.8 mm | | Weight | 0.8 lb / 0.36 kg | | | | Package Weight | 1.14 lb | | Box Dimensions (LxWxH) | 9.65 x 5.85 x 3.35" |
