User Manual for ALTRONIX eBridge 16-Port Managed IP Ethernet Transceiver with Coaxial Inputs over CAT5e Data and POE POE Click to enlarge the picture
Contents of the user manual for the ALTRONIX eBridge 16-Port Managed IP Ethernet
- Product category: Signal Extenders ALTRONIX
- Brand: ALTRONIX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ALTRONIX Signal Extenders
|
User manual for the ALTRONIX eBridge 16-Port Managed IP Ethernet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ALTRONIX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ALTRONIX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ALTRONIX product will considerably shorten its lifespan!
|

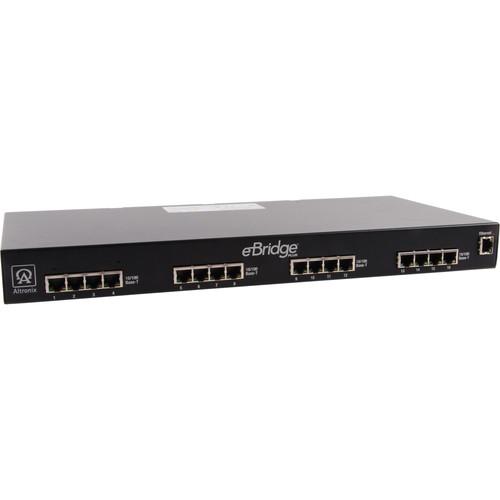

Product description Provided by third party: eBridge16PCRX is a CAT5 to Coax cable Managed Ethernet Midspan receiver. The receiver enables fast 10/100Base-T Ethernet digital communication to be received over Coax cable. eBridge16PCRX receiver sends power over the coax to the eBridge1PCT 15.4 W (PoE), eBridge1PCTX 30 W (PoE+) or eBridge1ST 30 W (PoE+) transmitter under PoE protocol. eBridge1PCT/1PCTX/1ST, in turn, delivers that power to a PoE enabled cameras or devices. eBridge16PCRX will not deliver power to non-compliant devices. These Plug-and-Play units facilitate system upgrades from analog to IP cameras/devices utilizing existing legacy Coax and eliminating the costs and labor associated with installing new network cabling. In addition, data transmission and power over the Coax is possible up to 500 m in comparison to 100 m Ethernet maximum distance. A maximum range from head end to the PoE camera/device is 700 m, taking into consideration that up to 100 m of structured cable may be deployed at each end. Altronix offers model VertiLine563 Rack Mount Power Supply/Charger which provides 56 VDC output which will power one eBridge16PCRX receiver with a maximum of sixteen PoE cameras/devices or twelve PoE+ cameras/devices.
Table of Contents
|
Upload User Manual
Have you got an user manual for the ALTRONIX eBridge 16-Port Managed IP Ethernet Transceiver with Coaxial Inputs over CAT5e Data and POE POE in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersALTRONIX EBRIDGE16PCRX Specs | | | Device Type | Network extender | | Form Factor | External - 1U | | | | Ports Qty | 16 | | Connectivity Technology | Wired | | Cabling type | 10Base-T, 100Base-TX | | Data Link Protocol | 10Mb LAN, 100Mb LAN | | Max Transfer Distance | 1640 ft | | Status Indicators | Power, link/activity | | Features | Auto-negotiation, half duplex mode, full duplex mode | | Compliant Standards | IEEE 802.3af, IEEE 802.3at | | | | Interfaces | 16 x Ethernet 10Base-T/100Base-TX - RJ-45 female
16 x network - BNC | | | | Compliant Standards | C-Tick, cUL, RoHS, UL 60950-1 | | | | Power Over Ethernet (PoE) | PoE+ | | Power Device | External power adapter | | Power Consumption Operational | 1.5 Watt | | | | Width | 19.1 in | | Depth | 8.5 in | | Height | 1.7 in | | Weight | 7.21 lbs | | | | Service & Support | Limited warranty - lifetime | | | | Min Operating Temperature | 14
