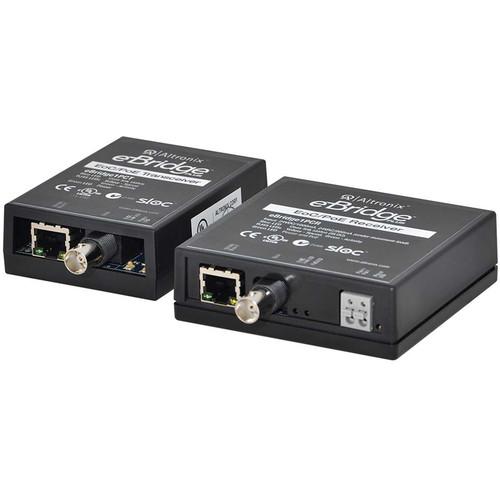

Product description The EBRIDGE1PCRT from Altronix consists of an EoC receiver and transceiver. They work in tandem to transmit data and power over a coaxial cable. The receiver generates PoE power to the transceiver, while the transceiver delivers PoE-compliant power to a network camera or device. Data transmission distance is up to 1640', which is 5 times farther than conventional Cat 5e Ethernet distances. Cameras up to 1080p in resolution are supported. - Suitable for retail establishments, casinos, airports, schools, and hospitals
- Eliminates the expense and labor of installing network cables
- Throughput rated to pass 25 Mb/s of data at distances up to 1640'
- Retrofits network cameras in an analog CCTV installation
- Automatically detects and offers protection of legacy non-PoE cameras/devices
- Works with 1080p, 720p, and VGA (SD) cameras
- SLOC (security link over coax) compatible
- Maximum range from headend to PoE camera or device up to 2297', with 328' of structured cabling deployed at each end
- LED indicators for status
- C-Tick, UL/cUL, and CE certified
UPC: 782239949496 In the Box ALTRONIX eBridge1PCRT IP and PoE over Coax EoC Kit eBridge1PCR Receiver IP over Coaxial EoC Transceiver csfuufccusbwdusxwaawzryryvyd Lifetime Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ALTRONIX eBridge1PCRT IP and PoE over Coax EoC Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersALTRONIX EBRIDGE1PCRT Specs | | | Receiver | 24 VDC / 1000 mA from Class 2 power supply or 24 VAC / 900 mA from Class 2 plug-in transformer | | Transceiver | Powered by eBridge1PCR receiver | | | | Connectivity | RJ45 with automatic crossover | | Wire Type | 4-pair Cat 5 or better structured cable | | Distance | Up to 328' / 100 m | | | | Throughput | Rated to pass 25 Mb/s of data at distances up to 1640.4' / 500 m
With proper head end equipment, multiple megapixel cameras can be used | | Speed | 10/100Base-T, half/full duplex, auto negotiation | | Connectivity | BNC, RG59/U, or similar | | | | Receiver | Coax link connection (blue LED)
PoE on (green LED)
Power on (green LED)
RJ45 IP link status, 10/100Base-T active (yellow and green LED) | | Transceiver | Coax link connection (blue LED)
PoE from receiver (green LED) | | | | BTU/h | Receiver:
24 VDC: 12 Btu/h
24 VAC 11 Btu/h | | Operating Temperature | Receiver: -4 to 140°F / -20 to 60°C
Transceiver: -40 to 167°F / -40 to 75°C | | Storage Temperature | -22 to 167° / -30 to 75°C | | Relative Humidity | 85% ±5% | | Operating Altitude | -1000 to 6562' / -305 to 2000 m | | Certifications | UL/cUL (60950-1), CE, C-Tick | | Dimensions (W x L x H) | Receiver: 3.5 x 4.375 x 1" / 88.9 x 111.1 x 25.4 mm
Transceiver: 2.5 x 4.375 x 1" / 63.5 x 111.1 x 25.4 mm | | Weight | 0.4 lb / 0.18 kg | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 9.6 x 5.8 x 3.2" |
