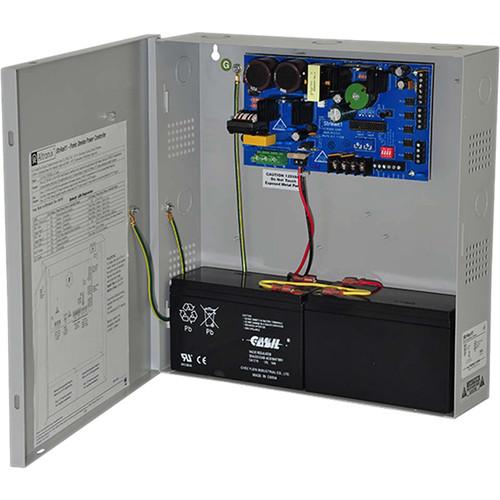

User Manual for ALTRONIX StrikeIt1 Panic Device Power Controller Click to enlarge the picture
Contents of the user manual for the ALTRONIX StrikeIt1 Panic Device Power Controller
- Product category: Power Supply Accessories ALTRONIX
- Brand: ALTRONIX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ALTRONIX Power Supply Accessories
|
User manual for the ALTRONIX StrikeIt1 Panic Device Power Controller contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ALTRONIX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ALTRONIX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ALTRONIX product will considerably shorten its lifespan!
|
Product description Provided by third party: StrikeIt1 will operate up to two (2) 24VDC panic hardware devices simultaneously. It is designed to handle the high current surge panic hardware locking devices demand. Each lock output has an adjustable relock delay timer. It will control a pair of doors simultaneously or independently control two individual doors. It has a follower relay for each output to trigger external relays, ADA push plate switches, etc. Delayed follower relays control automatic door operators for doors that are always locked or for doors that are unlocked during the business day. In addition, two un-switched auxiliary voltage outputs are provided for powering card readers, keypads, REX PIRs, electronic timers, relays, etc. A configurable FACP interface will either provide power or remove power to the lock outputs when activated. LED status indicators are provided to monitor AC power, FACP status and for lock output wiring supervision. Intelligent logic provides protection against accidental shorting of lock outputs. - Agency Listings
- UL Listed for Access Control Systems (UL294),
- CUL Listed - CSA Standard C22.2 No.205-M1983, Signal Equipment.
- File# BP6714.
- CSFM - California State Fire Marshal Approved.
- File# 3774-1335:114.
- MEA - NYC Department of Buildings Approved.
Features/Specifications
- Two (2) 24VDC individually or simultaneously controlled lock outputs rated @ 15 amp for 300ms.
- One (1) 12VDC filtered regulated auxiliary output rated @ .75 amp continuous supply current.(Not affected by FACP trigger)
- One (1) 24VDC filtered regulated auxiliary output rated @ .75 amp continuous supply current.(Not affected by FACP trigger)
- Two (2) delayed follower form "C" relay outputs rated @ 0.6 amp/28VDC. Delay time is selectable .5 seconds or 1 second.
- Energized duration is 1 second.
- Two (2) follower form "C" relay outputs rated @ 0.6 amp/28VDC.
- Relays energize while input is closed.
- Input 115VAC 50/60Hz, 6.3 amp.
- Two (2) N/O Trigger Inputs.
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
- Maximum charge current .3 amp.
- Green LED indicates input 115VAC present.
- Green LED indicates panic device status (short, open or triggered).
- Red LED indicates when FACP disconnect is triggered.
Fire Alarm Disconnect:
- Normally Closed FACP trigger input.
Programmable Fire Alarm Disconnect options:
a) Removes power to outputs and disables delayed follower relays.
b) Connects power to lock outputs and enables delayed follower relays.
- LK1 and LK2 adjust the panic device release time for the lock outputs from 300ms to 30 sec.
- Lifetime Warranty.
Enclosure
- Accommodates up to two (2) 12VDC/7AH batteries.
- Dimensions: 13.5"H x 13"W x 3.25"D.
- 1/2" and 3/4" combination knockouts.
In the Box ALTRONIX StrikeIt1 Panic Device Power Controller Lifetime Limited Warranty Brochure PDF 156kb Table of Contents
|
Upload User Manual
Have you got an user manual for the ALTRONIX StrikeIt1 Panic Device Power Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersALTRONIX STRIKEIT1 Specs | | | Height | 13.5" | | Width | 13" | | Depth | 3.3" | | | | Environmentally Friendly | Yes | | Environmental Certification | RoHS | | | | Box Dimensions (LxWxH) | 13.5 x 13.0 x 3.25" |
