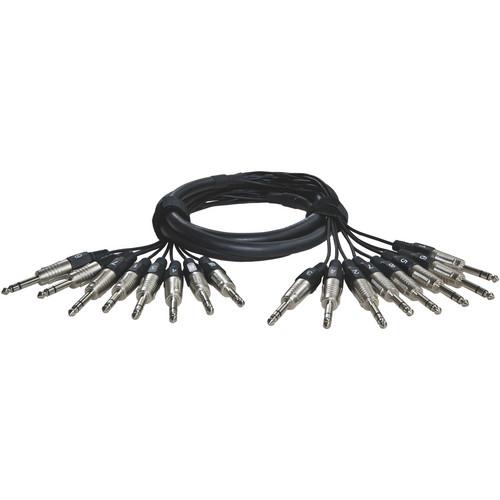

Product description The Alva 8 x TRS to 8 x TRS Analog Breakout Cable (2 m) is designed for RME products such as USB & FireWire Audio Interface and converters. Table of Contents
|
Upload User Manual
Have you got an user manual for the ALVA 8 x TRS to 8 x TRS Analog Breakout Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersALVA T8T8PRO2 Specs | Diameter | Cable: 0.59" (15 mm) | | Cable | 6.3 mm stereo male to 6.3 mm stereo male | | Length | 6.5' (2 m) | | D-SUB | Pin-Out Diagram
Channel 1: Pin 24= (+) & Pin 12= (-)
Channel 2: Pin 10= (+) & Pin 23= (-)
Channel 3: Pin 21= (+) & Pin 9= (-)
Channel 4: Pin 7 = (+) & Pin 20= (-)
Channel 5: Pin 18= (+) & Pin 6= (-)
Channel 6: Pin 4= (+) & Pin 17= (-)
Channel 7: Pin 15= (+) & Pin 3= (-)
Channel 8: Pin 1 = (+) & Pin 14= (-) GND is connected to Pins: 2, 5, 8, 11, 16, 19, 22, 25. Pin 13 is not connected. | | Compatibility | Fireface UFX, Fireface UCX, Fireface 800, Fireface UC, ADI-8 DS, ADI-8 QS, M-32 AD, M-16 AD, M-32 DA, M-16 DA, and OctaMic II |
