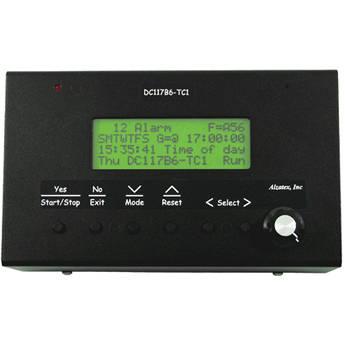

User Manual for alzatex DC117B6_TC1_MP3 Time-of-Day Clock with Integrated Count Up Down Timer Click to enlarge the picture
Contents of the user manual for the alzatex DC117B6_TC1_MP3 Time-of-Day Clock with Integrated
- Product category: Presentation Timers & Displays alzatex
- Brand: alzatex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for alzatex Presentation Timers & Displays
|
User manual for the alzatex DC117B6_TC1_MP3 Time-of-Day Clock with Integrated contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any alzatex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official alzatex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a alzatex product will considerably shorten its lifespan!
|
Product description The Alzatex Inc. DC117B6_TC1_MP3 Time-of-Day Clock with Integrated Count Up/Down Timer helps you store multiple events to be triggered at specific times of the day or on specific days of the week. It controls up 1,023 different events on up to 256 different devices. The Time-of-Day Clock with an integrated count up/down timer outputs data to drive large remote displays and/or indicator lights.
With the MP3 player, you can play your music, voice announcements, and other sound clips at pre-programmed times. This time-of-day clock and count up/down timer with an integrated MP3 player will play your stored audio sounds. In addition, remote commands can be sent to this unit to cause audio clips or background music to be played at your command. - MP3 Player Features
-
- SD card memory is capable of storing many hours of audio in MP3 format
- Supports both FAT12 and FAT16 file formats
- Load up to 255 audio files onto the SD memory card
- Play MP3 audio files at user programmed times
- Set up playlists to play long sequences of music and/or voice announcements
- Play announcements in any language or in multiple languages
- Line output to feed to an external amplifier
- Speaker output with volume control
- Headphone output with volume control
- Time Clock Features
-
- 1,023 alarm / event memories
- SD card memory to store up to 99 alarm files
- Each file can hold 255 or more alarms
- Supports both FAT12 and FAT16 file formats
- Program 1-week or multi-week cycles
- Program events for any combination of days of the week
- Settable for 12 or 24 hour mode
- Integrated count up/down timer includes 3 user-definable presets
- User settable yellow warning and blink times
- Ground closure inputs to remotely start, stop, or reset the timer
- Backlit LCD display with 4 lines of 20 characters
- Applications
-
- Program coffee breaks and shift changes
- Program school bells to signal class changes
- Set up production TAKT times to operate the countdown timer to run and pause for coffee breaks, lunch breaks and shift changes
- Sound an alert horn, generate voice announcements, and/or operate visual indicators
- Start and stop machinery, lights, or any other device at pre-programmed times
- Connect to your PLC or machine with serial port or ground closure inputs
In the Box alzatex DC117B6_TC1_MP3 Time-of-Day Clock with Integrated Count Up/Down Timer Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the alzatex DC117B6_TC1_MP3 Time-of-Day Clock with Integrated Count Up Down Timer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersalzatex DC117B6_TC1_MP3 Specs | Power Requirements | 10 to 18 VAC or 12 to 24 VDC | | Current Consumption | 480 MA (maximum) | | Interfaces | 2x RJ-45 modular connectors for RS-422 serial data transmission and reception
1x RJ-11 modular connector for remote start, stop and reset inputs | | Dimensions | 6.0 x 4.5 x 2.0" (152.4 x 114.3 x 50.8 mm) |
