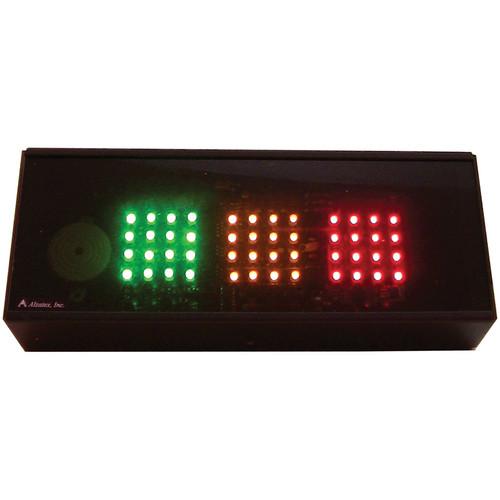

User Manual for alzatex RYG200A Large Red-Yellow-Green Indicator Click to enlarge the picture
Contents of the user manual for the alzatex RYG200A Large Red-Yellow-Green Indicator
- Product category: Presentation Timers & Displays alzatex
- Brand: alzatex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for alzatex Presentation Timers & Displays
|
User manual for the alzatex RYG200A Large Red-Yellow-Green Indicator contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any alzatex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official alzatex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a alzatex product will considerably shorten its lifespan!
|
Product description The black RYG200A Large Red-Yellow-Green Indicator from Alzatex Inc. is equipped with 2 x 2" LED clusters. It supports manual controlled input, which is controlled by ground closure or external buttons. This unit comes in a metal enclosure. This Electronic Digital timer unit consists of red, yellow, and green indicator lights. It is designed to be connected to the TimeKeeper series Electronic Digital Timers using a standard modular phone cord and complements Alzatex Inc. counters, timers, and displays. - Red-yellow-green audience signal lights
- Works with The TimeKeeper, Alzatex, Inc.'s 0 to 99.59 minute count up / down timers
- Can be powered using AC or DC power
- LED Indicators: Green for Talk; yellow for Wrap-It-Up; and red for Done
- Audio output (2W) for an external speaker that will generate user-programmable audible tones
- RJ45 modular connector for RS422 serial data input
- RJ11 modular connectors for serial data input
- Ground closure inputs to manually operate the green, yellow, and red indicators, and the beeper
- Power connector (2.1 x 5.5mm)
- Screw terminal connector for loud beeper and 8Ω speaker
- Construction: Metal enclosure, black powder-coated finish
- Applications
- City council, courts, and other public meetings
School board or corporate meetings
Speech and debate classes, mock trials
Manufacturing and production timing and/or counting
Hospital emergency rooms, ICU, and patient care compliance - Benefits
- RJ11 / 45 connectors are convenient and easy to use and any indicator can be plugged into any TimeKeeper unit
Large, easily-readable indicators
Indicators can be permanently mounted on wall for greater visibility UPC: 788581651278 In the Box alzatex RYG200A Large Red-Yellow-Green Indicator (Black) Wiring Diagram Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the alzatex RYG200A Large Red-Yellow-Green Indicator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersalzatex RYG200A Specs | Power Requirement | 10 to 13 VAC or 12 to 15 VDC | | Current Consumption | 250 mA | | Dimensions | 11.0 x 4.5 x 2.5" (279.4 x 114.3 x 63.5 mm) | | Weight | 2.35 lb (1.07 kg) |
