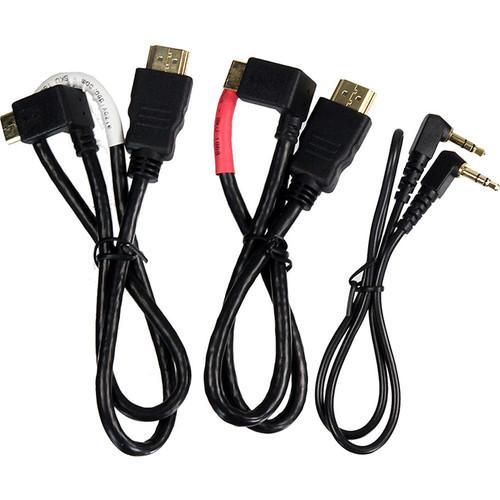

Product description The HDMI & Stereo Audio Cord Set from ALZO includes two 21" right-angled offset mini-HDMI cords and an 18" right-angled stereo audio cord. The cords have gold-plated contacts and right angle connectors provide for unobstructed camera port access.
The HDMI cord is specifically designed for DSLR cameras with rear-facing mini-HDMI connectors, allowing for a vertical up connection. The white cord is compatible with the Canon 5D Mk II & III, 7D, T2i, T3i, as well as the Nikon D3100, D7000, D5100, D800, and Sony SLT-A77, and SLT-A65 cameras. The red cord is compatible with the Canon 60D and Sony A580. The HDMI cable also works with DSLRs having lens-facing mini-HDMI connectors providing a vertical down connection.
The 18” Stereo Audio Cord is a short cord suitable for DSLR video rig recording, allowing you to connect a DSLR camera to an audio mixer. The cable features right-angled gold-plated 3.5mm connectors on both ends. It attaches to the microphone jack of the DSLR. Additionally, the cord features a rubber jacket for added flexibility and durability. - 21" Right-Angled Offset Mini-HDMI Cable for Select DSLR Cameras (Right-Orientation, White) The right-oriented, white 21” Right-Angled Offset Mini-HDMI Cable from ALZO allows you to connect a DSLR rig to an LCD monitor with an HDMI connection. It is specifically designed for DSLR cameras with rear-facing mini-HDMI connectors, allowing for a vertical up connection. The right-angled connector provides for unobstructed camera port access. This cable also works with DSLRs having lens-facing mini-HDMI connectors for a vertical down connection.
- Compatibility
- Canon 5D Mark II & III, 7D, T2i, T3i, and T4i
Nikon D3100, D7000, D5100, and D800
Sony SLT-A77, -A65, -A55, and -A35
Panasonic GH2 - Suitable for connecting a DSLR to LCD monitors via HDMI
- Right-angled connectors improve connection reliability
- Side jog prevents blocking of the other camera ports
UPC: 013964333336 - 21" Right-Angled Offset Mini-HDMI Cable for Canon 60D & Sony A580 (Left-Orientation, Red) The left-oriented, red 21” Right-Angled Offset Mini-HDMI Cable from ALZO allows you to connect a DSLR rig to an LCD monitor with an HDMI connection. It is specifically designed for DSLR cameras with lens-facing mini-HDMI connectors, allowing for a vertical up connection. The right-angled connector provides for unobstructed camera port access. This cable also works with DSLRs having rear-facing mini-HDMI connectors for a vertical down connection.
- Compatibility
- Canon 60D and Sony A580
- Suitable for connecting a DSLR to LCD monitors via HDMI
- Right-angled connectors improve connection reliability
- Side jog prevents blocking of the other camera ports
UPC: 013964333343 - Video Stereo Audio Cord (Right-Angled, 18") The right-angled Video Stereo Audio Cord from Alzo Digital is a gold-plated cable used to connect an audio mixer to a DSLR camera. Moreover, the cable has a 3.5mm stereo jack on both ends and it is 18" in length. Therefore, the cord is long enough to reach other devices while on a video rig and short enough to prevent cable snags.
- Gold-plated 3.5mm Stereo Jacks
- 18" right-angled cord on both ends
- Compatible with audio mixers and other devices with a 3.5mm female port
UPC: 013964333350 In the Box Bundle Items 21" Right-Angled Offset Mini-HDMI Cable for Select DSLR Cameras (Right-Orientation, White) dsbqcrfsyvtbtvaweeavxyzdazutq 21" Right-Angled Offset Mini-HDMI Cable for Canon 60D & Sony A580 (Left-Orientation, Red) Video Stereo Audio Cord (Right-Angled, 18") Table of Contents
|
Upload User Manual
Have you got an user manual for the ALZO HDMI & Stereo Audio Cord Set for DSLR Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 21" Right-Angled Offset Mini-HDMI Cable for Select DSLR Cameras (Right-Orientation, White)
| | | Box Dimensions (LxWxH) | 5.0 x 4.0 x 0.4" | - 21" Right-Angled Offset Mini-HDMI Cable for Canon 60D & Sony A580 (Left-Orientation, Red)
| | | Box Dimensions (LxWxH) | 6.4 x 2.0 x 0.5" | - Video Stereo Audio Cord (Right-Angled, 18")
| Connection | 3.5 mm stereo jack | | Cable Length | 18" (46 cm) | | | | Box Dimensions (LxWxH) | 4.3 x 1.2 x 0.6" |
