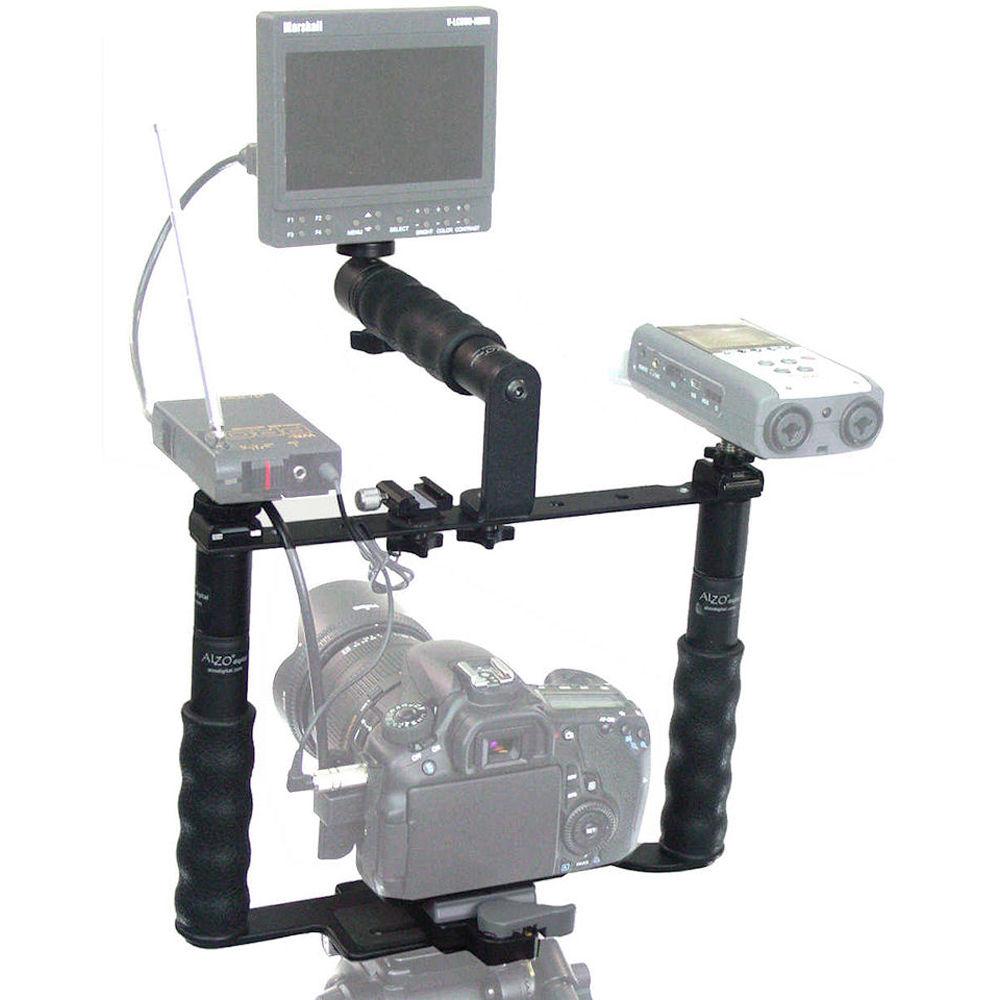

Product description The Transformer DSLR Rig, Handle, & Extenders Kit from ALZO Digital provides an extendable frame (with a top handle) for mounting your DSLR and accessories. In addition to the Transformer DSLR Rig, this kit includes two height extenders and a bracket handle. This tripod-mountable bracket also functions as a handheld rig and has two integrated, rubber-padded handgrips. Use the two included extenders to add 1.5" to the bracket height when using a large battery or other bulky accessories with your DSLR. The top rail of the bracket includes nine mounting holes which can be used with the three included shoe mounts. The two end shoe mounts can be removed and 1/4"-20–mountable accessories can be attached in their place.

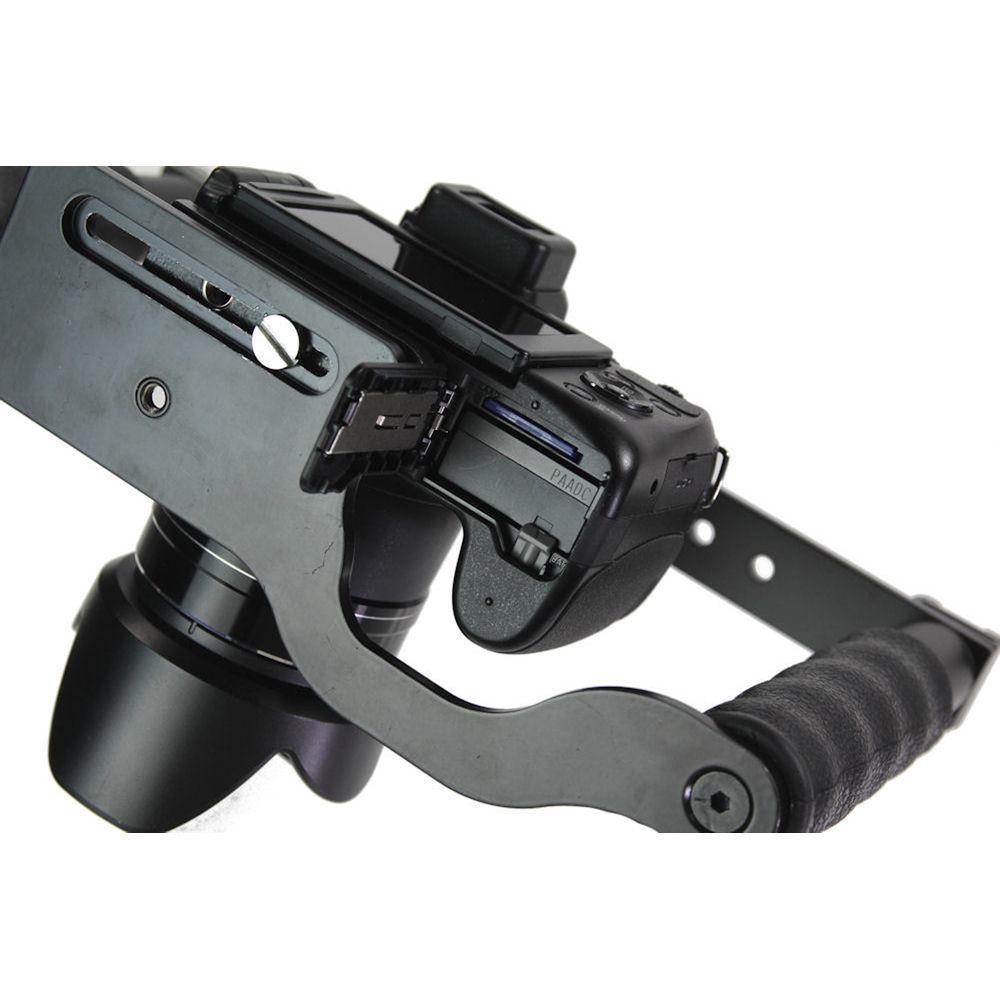

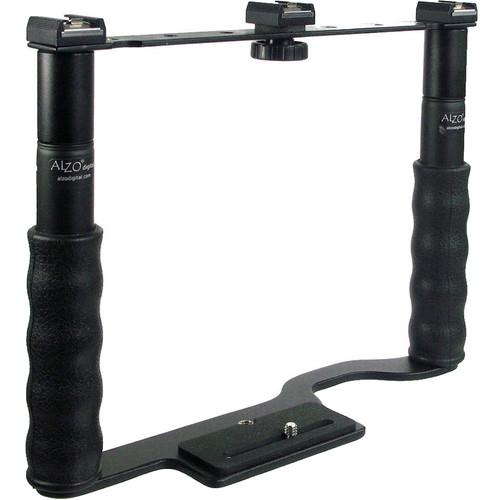

The Transformer DSLR Rig's camera baseplate is offset to the rear for better balance when using a zoom (or other heavy lens) and also to accommodate side-attached camera cables. The rig's baseplate features a sliding mounting screw for balancing the camera. The Transformer DSLR Rig provides unobstructed battery access for most DSLRs, including the Canon 5D/7D/60D, and Nikon D7000/D3100/D5100. - Transformer DSLR Rig The Transformer DSLR Rig from ALZO converts your DSLR in a fully featured Pro Custom Video Camera with adjustable unobstructed camera battery access. It includes three shoe mounts, one of which can be repositioned or removed. There are 1/4"-20 screen threads for mounting optional accessories as well. The base plate allows for solid flush mounting of bracket to a video tripod, and the slot-adjustable screw mount allows for camera balance adjustment. In addition, the base plate camera mount offset allows for cable access to the left connector side of the camera. The rig is textured from aluminum and has rubber hand grips.
- Sturdy lightweight aluminum construction
- Three shoe mounts, including one that can be re-positioned or removed.
- Base design allows for unobstructed battery compartment access for many Canon and Nikon DSLRs
- slot-adjustable screw mount allows for camera balance adjustment
- Base plate camera mount offset allows for cable access to the left connector side of the camera
- Base plate allows for solid flush mounting of bracket to a video tripod
- Camera mount rear offset improves overall balance with a zoom lens
- Textured rubber hand grips
- Stainless steel 1/4"-20 tripod mount in base

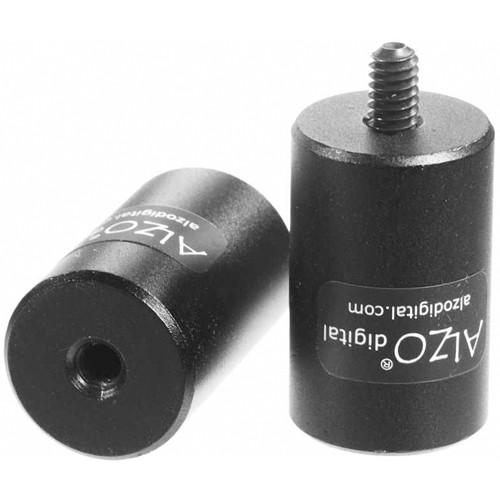

UPC: 013964333169 - Transformer Rig Height Extender (Set of 2) Provided by third party: The ALZO Transformer Rig Height Extenders add 1.5 inches to the rig height; simply screw them onto the rig handle bars. This extra space allows you to use battery packs, additional base plates, audio mixers and other DSLR gear with your DSLR camera and your ALZO Transformer Rig. UPC: 013964333244
In the Box Bundle Items Transformer DSLR Rig bqdsedeyewxvarfxfsyfuxeedxbw Transformer Rig Height Extender (Set of 2)

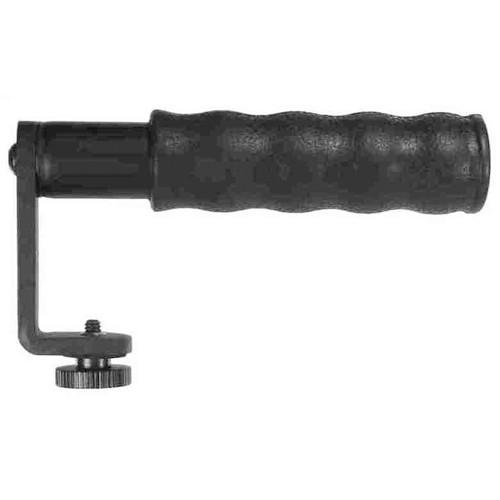

Also Includes - Transformer Bracket Handle
- Limited 3-Year Warranty
ASSEMBLY GUIDE PDF 199.7kbbqdsedeyewxvarfxfsyfuxeedxbw Table of Contents
|
Upload User Manual
Have you got an user manual for the ALZO Transformer DSLR Rig, Handle, & Extenders Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Transformer DSLR Rig
| Dimensions (W x H x D) | 11 x 6.5 x 3" / 28 x 16 x 8 cm | | Weight | 1 lb / 0.5 kg | | | | Box Dimensions (LxWxH) | 10.8 x 5.1 x 1.4" | - Transformer Rig Height Extender (Set of 2)
| | | Attachment Size | 0.25" Female Thread
0.25" Screw | | | | Material | Aluminum
Steel - Thread | | Height | 1.5" | | | | Compatibility | ALZO Transformer DSLR Rig Handles | | | | Box Dimensions (LxWxH) | 2.7 x 2.7 x 2.7" |
