User Manual for Ambient Recording ACL 204 - Lockit Sync Box Click to enlarge the picture
Contents of the user manual for the Ambient Recording ACL 204 - Lockit
- Product category: Time Code Generators & Readers Ambient Recording
- Brand: Ambient Recording
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ambient Recording Time Code Generators & Readers
 |
User manual for the Ambient Recording ACL 204 - Lockit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ambient Recording product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ambient Recording user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ambient Recording product will considerably shorten its lifespan!
|

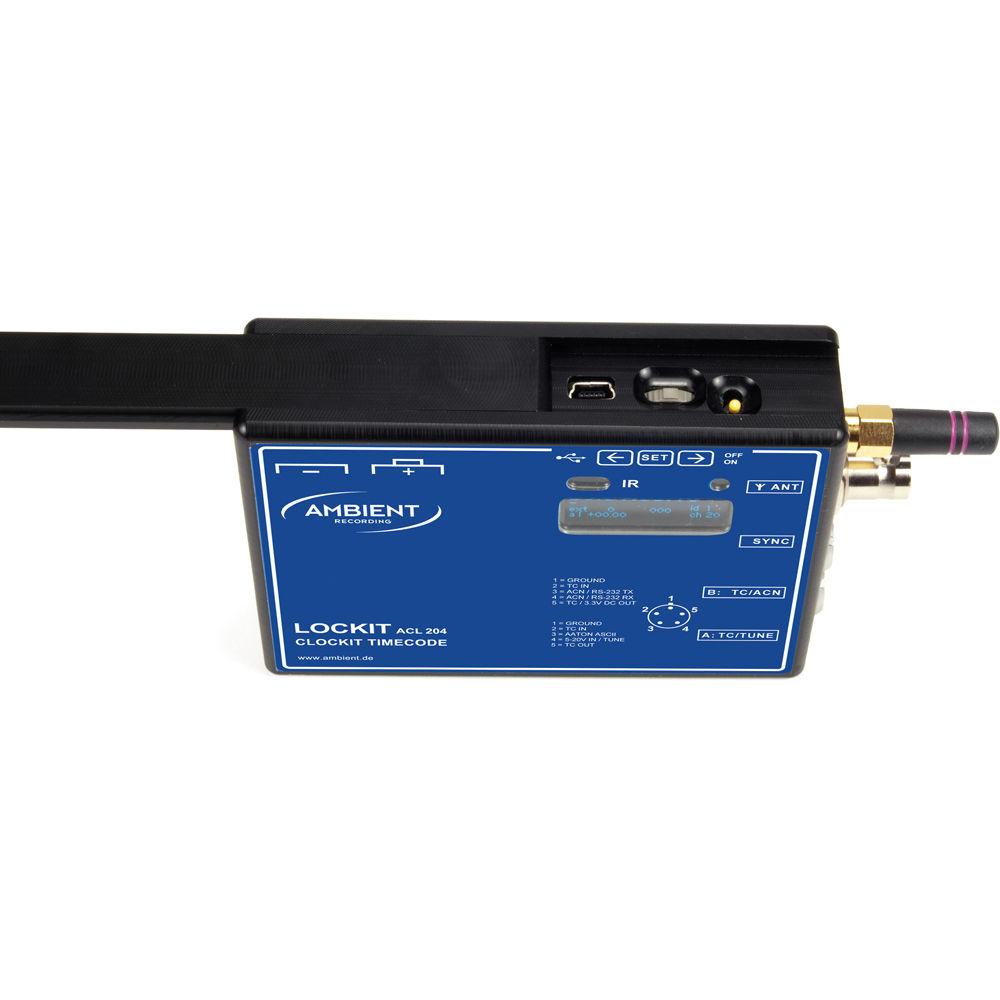

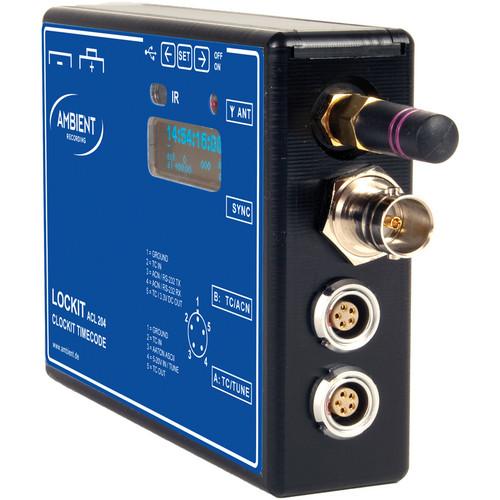

Product description The ACL204 from Ambient Recording is a portable synchronizer and the first in a new generation of Clockit products which fully utilizes the Ambient Clockit Network System (ACN). The company hopes that ACN becomes an industry standard, a system that is as open as possible, and which simultaneously merges real-time and file embedded metadata from various camera manufacturers along with a global time code reference.
The unit supports all Timecode rates and sync formats and allows the user to apply an offset to the Timecode output to compensate for the processing delay created in some HD cameras. Additionally, 3-D camera rigs can be lighter and neater by utilizing the second Timecode output, while the sync output can be switched to drive a dual load. An integrated transceiver and the second Lemo socket can be used to interface with the Clockit Network System.

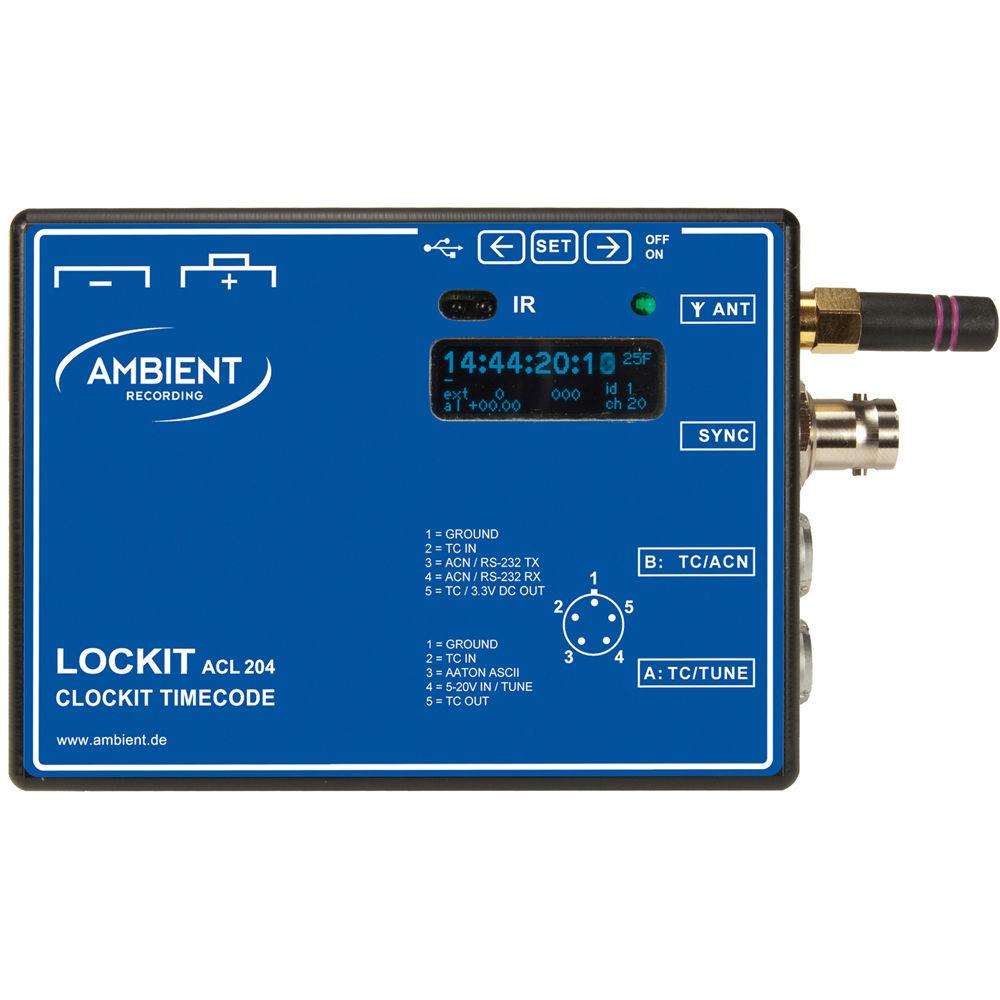

An OLED display provides instant visual feedback about the unit's current configuration and assists in navigating through the menu. This can be done on the fly with one-finger without the need for screwdrivers or power cycling the unit. An intelligent algorithm prevents configuration of improper, mismatched Timecode and sync rates, or unintended alterations to the setup.
The hardware has been completely revised to provide a flexible, fully programmable FPGA architecture. Powered by a pair of AA batteries, the portable synchronizer is housed in a compact but rugged housing, ensuring many years of reliable operation, while opening the door to the extensive use of metadata that has become essential for an effective work flow in today's multi-camera film and multimedia productions. - Portable Timecode synchronizer
- Ambient Clockit Network System support for embedding metadata into a comprehensive shot list containing start and stop times of each and every recording and machine in a multi-camera setup
- OLED display for on the fly menu changes
- Wireless access to Mesh Network
- Powered by 2 AA batteries
In the Box Ambient Recording ACL 204 - Lockit Sync Box One (1) Year Warranty User Manual PDF 2.6mbzewuttweaczrcfvsdbvzuf Table of Contents
|
Upload User Manual
Have you got an user manual for the Ambient Recording ACL 204 - Lockit Sync Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmbient Recording ACL 204 Specs | Supported Settings | | 720p | 23.98, 24, 25, 29.97, 30, 59.94, 50, 60 | | 1080i / PsF | 23.98, 24, 25(50i), 29.97(59.94i), 30(60i) | | 1080p | 23.98, 24, 25, 29.97, 30, 59.94, 60 | | PAL | 25 fps | | NTSC | 29.97, 30 fps | | Wordclock | 32, 44.1, 48, 88.2, 96, 176.4, 192kHz, pull-up/pull-down | | AES3 Black | 24-bit, sample rates as above |
| | Power Requirements | 2 x AA batteries | | Dimensions (WxDxH) | 3.9 x 1.4 x 2.9" (100 x 36 x 74mm) | | Weight | 8.8 oz (250g) | | | | Package Weight | 1.195 lb | | Box Dimensions (LxWxH) | 9.9 x 6.05 x 2.3" |
