User Manual for Ambient Recording ACN-LS Lockit Slate Modular Timecode Slate and Display Click to enlarge the picture
Contents of the user manual for the Ambient Recording ACN-LS Lockit Slate Modular
- Product category: Time Code Generators & Readers Ambient Recording
- Brand: Ambient Recording
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ambient Recording Time Code Generators & Readers
 |
User manual for the Ambient Recording ACN-LS Lockit Slate Modular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ambient Recording product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ambient Recording user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ambient Recording product will considerably shorten its lifespan!
|

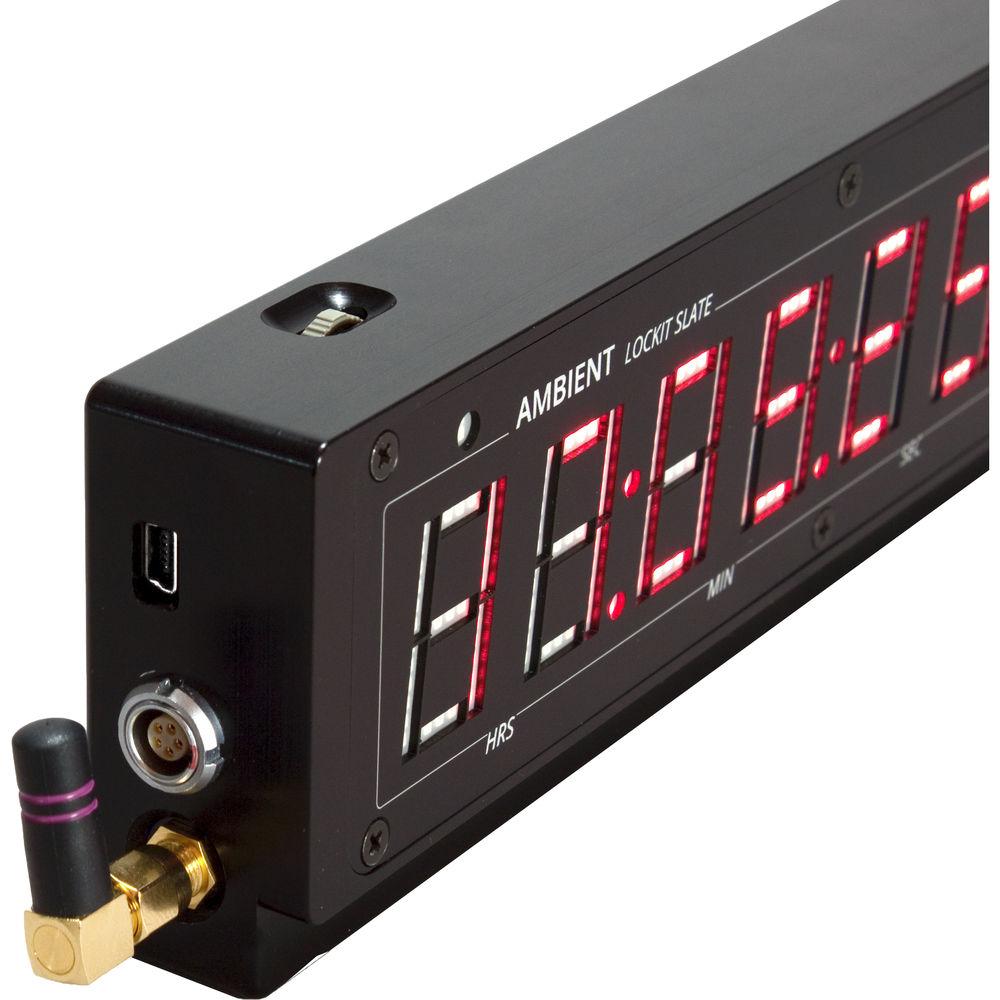

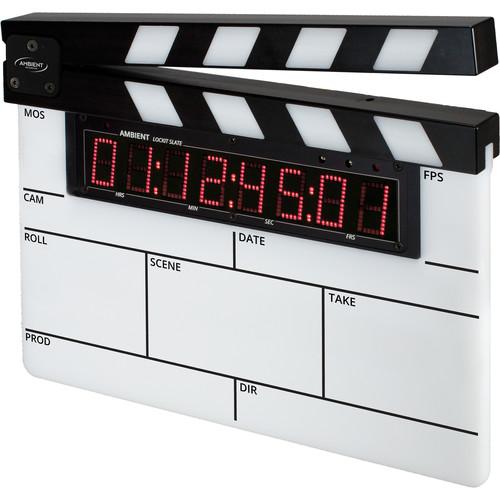

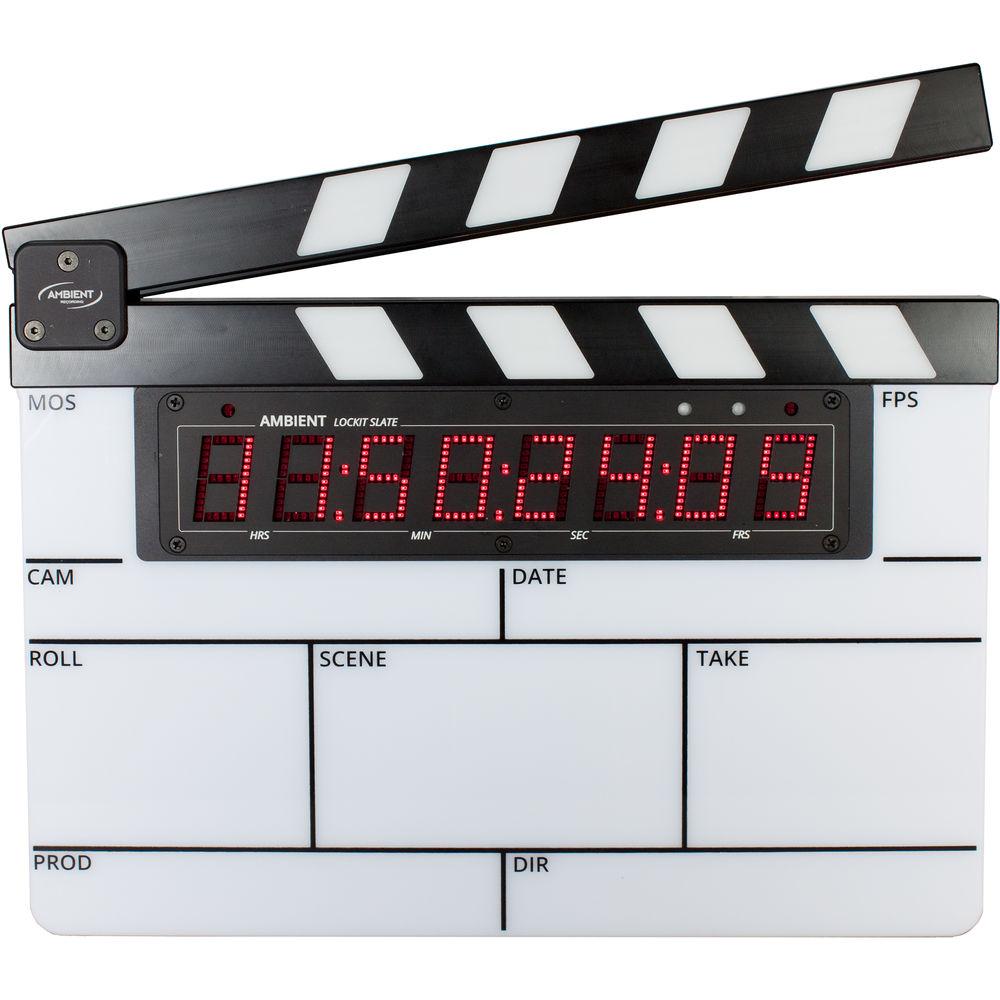

Product description The Ambient Recording ACN-LS Lockit Slate is a modular timecode slate and display, and an accurate, temperature-compensated, timecode generator. The completely revised LED timecode display features double the brightness with the use of only four AA batteries.
The slate includes ACN (Ambient Clockit Network) support, metadata, clap time transfer, and logging. These network capabilities also allow the Lockit Slate to be a fully functional, generator-buffered, timecode transceiver. This provides the stability of a Clockit generator with the flexibility of a wireless TC system, but without the fear of dropouts.
In addition, it offers a variable timecode offset to compensate for processing delays of digital cameras. Plugged into a computer, the Lockit Slate transforms into a highly accurate MIDI timecode interface with LTC / MIDI timecode conversion and a TC LED display. This function allows the ACN-LS, for example, to sync multiple cameras with a Pro Tools workstation. The user interface is easy and intuitive to use.

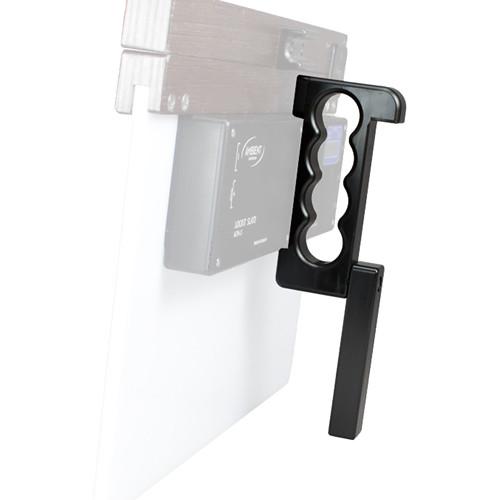

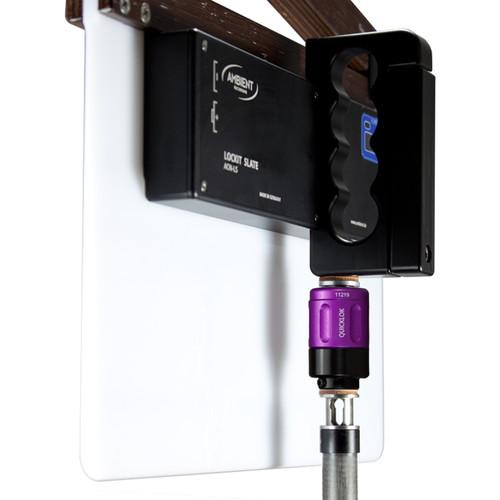

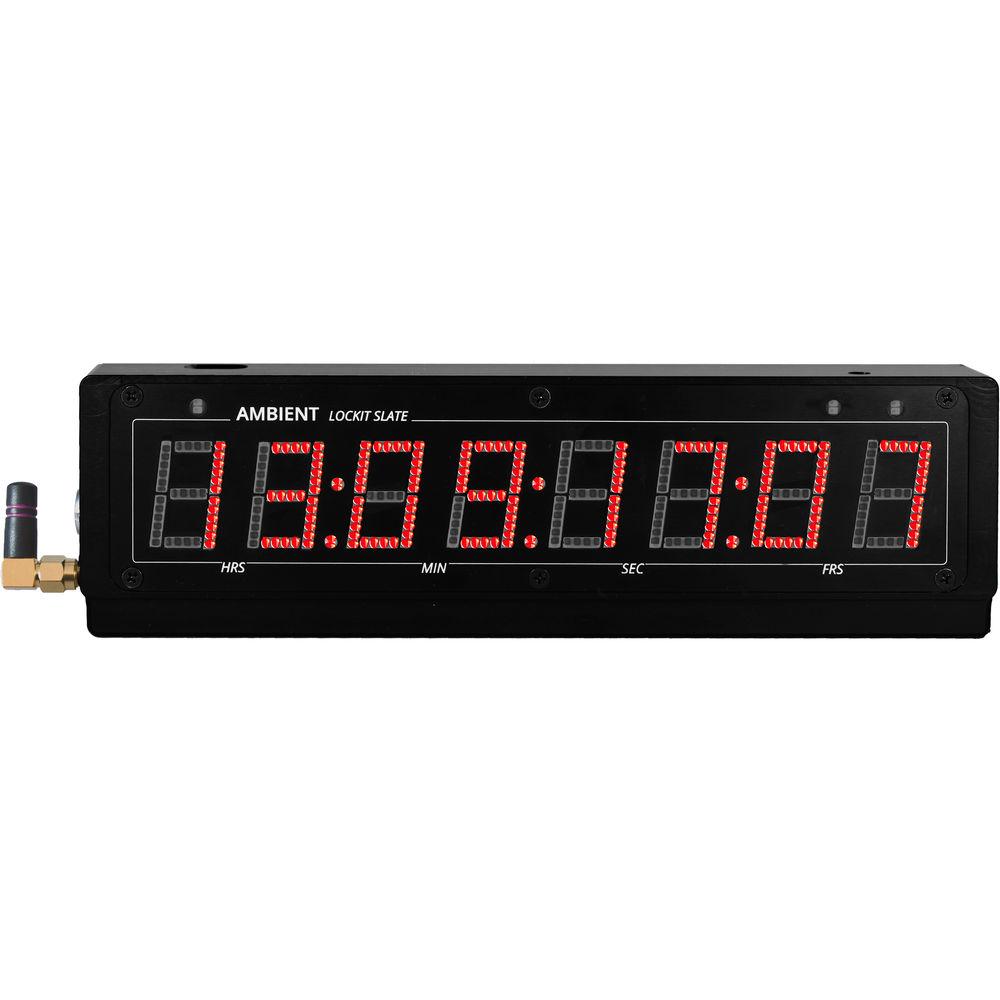

Thanks to the modular construction, the electronic section of the Lockit Slate can also serve as a fully functional, compact, standalone display for documentary or desktop use. Housed in a machined, pearl blasted, anodized aluminum body it can easily withstand rough production conditions. Interchangeable slate bodies allow for customization and allow the user to choose the look. A travel bag and Lockit Slate handle with kickstand is also included. Note: Batteries and interchangeable slate bodies are sold separately. - Accurate timecode generator
- Supports all used frame rates
- Generator-buffered timecode transceiver
- Full Ambient Clockit Network support
- Clap time transmission via ACN
- Drift of less than 1 frame a day (approximately 0, 1 ppm, 0, 0 ppm within ACN)
- Bright OLED display for configuration
- Conversion between LTC and MTC (via USB)
- RS232, USB, and GP I/O Port
- Uses only 4 x AA batteries 1

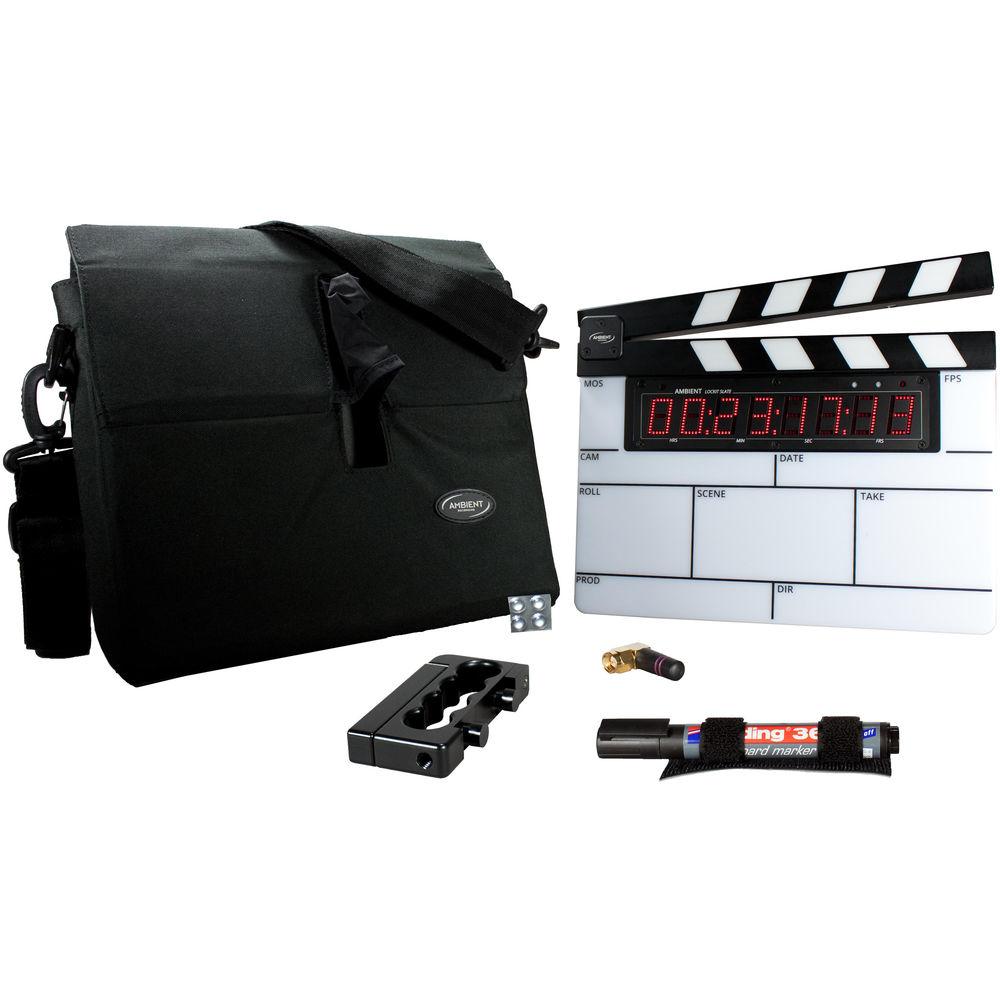

Please Note: Sold separately. close In the Box Ambient Recording ACN-LS Lockit Slate Modular Timecode Slate and Display ACN-LD Lockit LED Display ACN-LCP POM Clapstick with Inlaid Rhombs ACN-LB Polycarbonate Board ANT-2.4-SMA-M90 Antenna SMA Right Angle Board Marker with Hook-and-Loop Fasteners Lockit Slate Handle Assembly with Kick-Stand Bag for ACN-LS Lockit Slate Limited 1-Year Warranty User Manual PDF 4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Ambient Recording ACN-LS Lockit Slate Modular Timecode Slate and Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmbient Recording ACN-LS Specs | Batteries & Power | 4 x AA batteries (not included) | | Drift | Approximately 0, 1 ppm, 0, 0 ppm within ACN | | Port | RS232, USB, and GP I/O Port | | Dimensions | 8.26 x 2.48 x 1.10" (210.00 x 63.00 x 28.00 mm) without slate body | | Weight | 15.8 oz (450 g) without batteries | | | | Package Weight | 6.0 lb | | Box Dimensions (LxWxH) | 17.7 x 13.3 x 3.8" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 22 owners. Add your rating and experience with the product.
