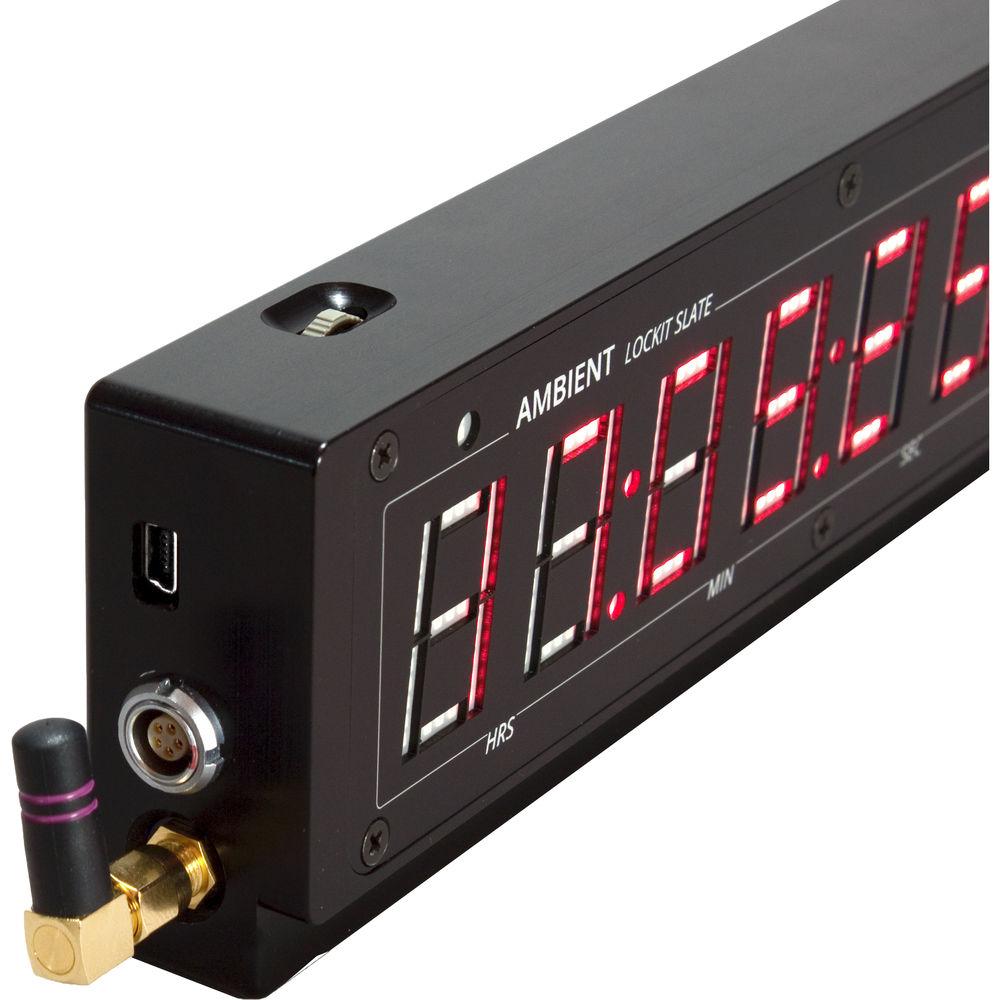

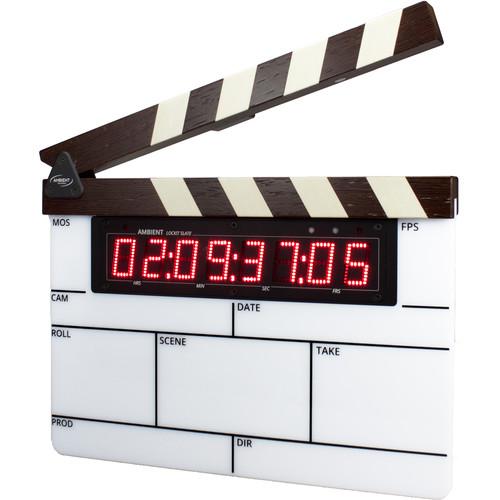

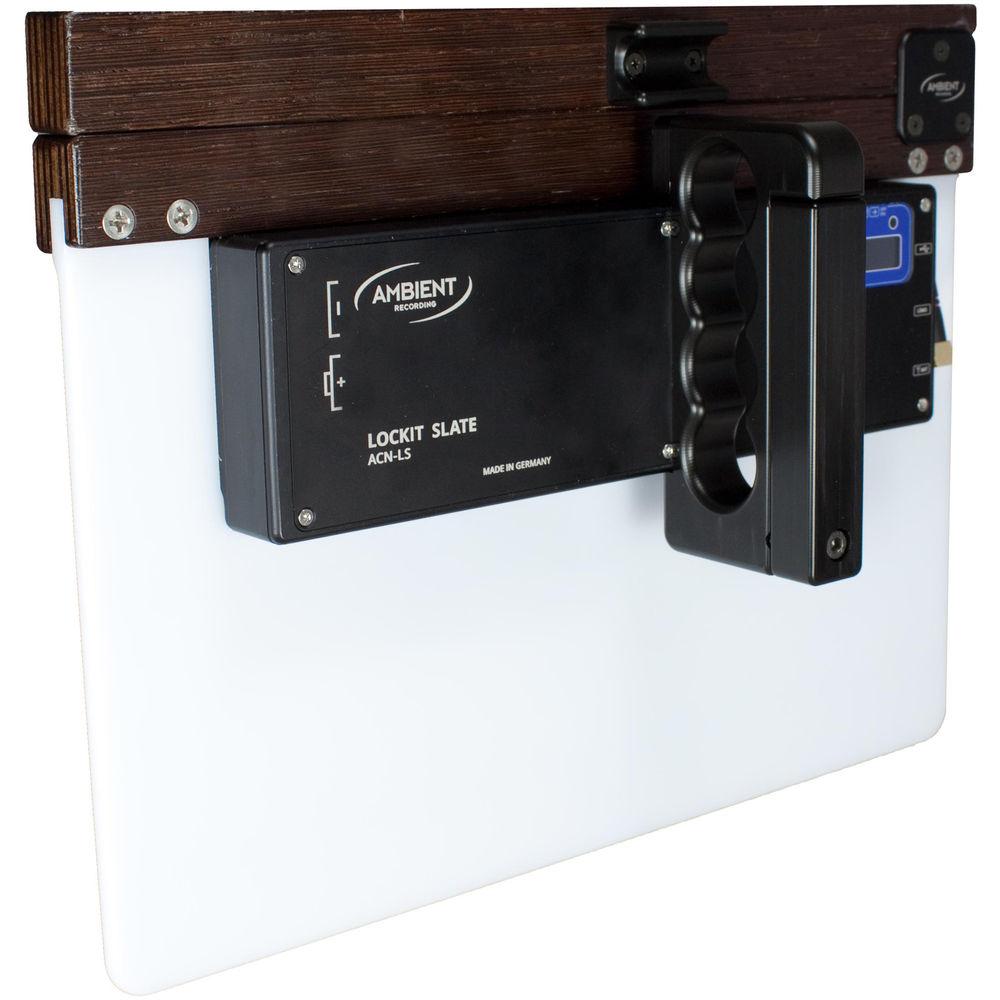

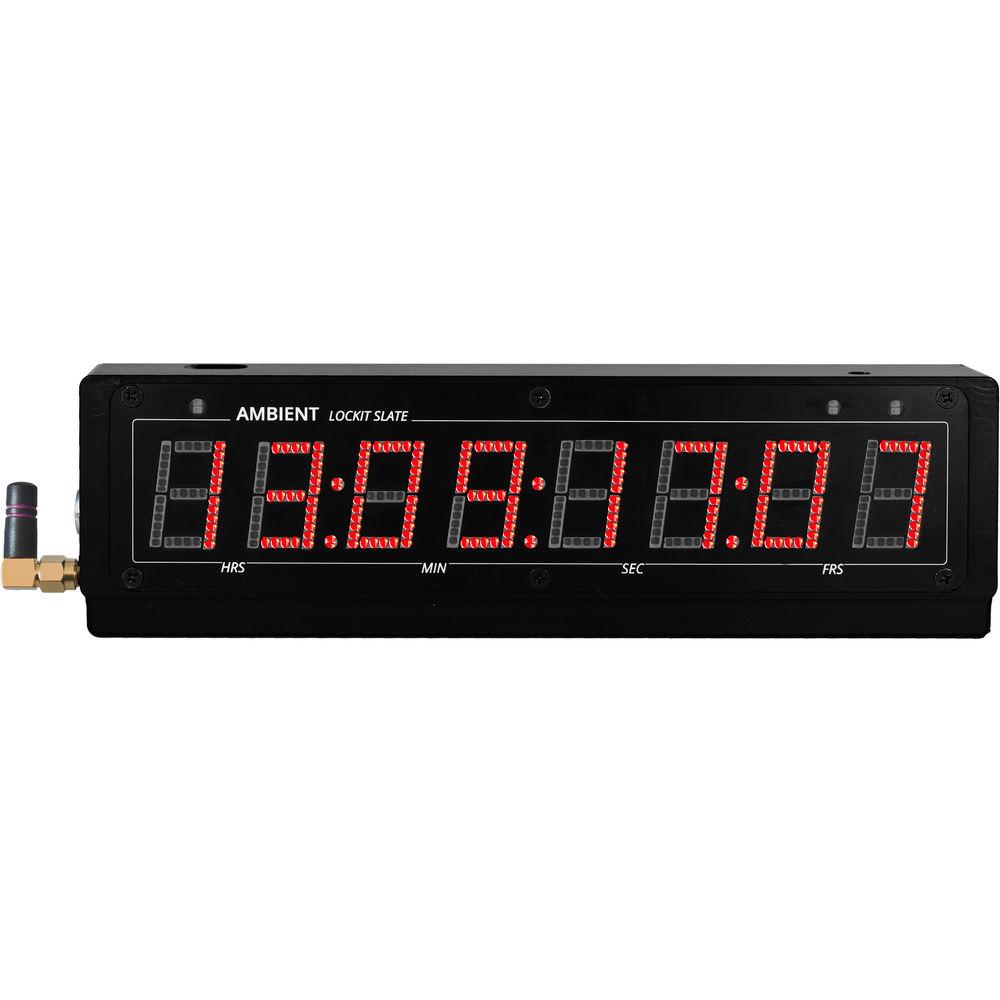

Product description The maple wood, ACN-LSW Lockit Slate with Modular Timecode and Display by Ambient Recording provides a rock solid, accurate, temperature-compensated timecode generator. It features double the brightness with the use of four AA batteries. The slate includes ACN (Ambient Clockit Network) support, metadata, clap time transfer, and logging. These network capabilities also allow the Lockit Slate to be a fully functional, generator-buffered, timecode transceiver. This provides the stability of a Clockit generator with the flexibility of a wireless TC system but without the fear of dropouts.In addition, it offers a variable timecode offset to compensate for processing delays of digital cameras. Plugged into a computer, the Lockit Slate transforms into a highly accurate MIDI timecode interface with LTC / MIDI timecode conversion and a TC LED display. This function allows the ACN-LS, for example, to sync multiple cameras with a Pro Tools workstation. The user interface is easy and intuitive to use.Thanks to the modular construction, the electronic section of the Lockit Slate can also serve as a fully functional, compact, standalone display for documentary or desktop use. It is built with a USB connector, external antenna connector, LEMO 5-pin socket for timecode in and out, ASCII, tune signal, and DC-in. Housed in a machined, pearl-blasted, and anodized aluminum body, it can easily withstand rough production conditions. In addition, a Lockit Slate handle with kickstand and travel bag is also included. In the Box Ambient Recording ACN-LSW Lockit Slate with Modular Timecode and Display (Maple Wood) ACN-LD Lockit LED Display Maple Clapstick with Inlaid Rhombs ACN-LB Polycarbonate Board ANT-2.4-SMA-M90 Antenna SMA Right Angle Board Marker with Hook-and-Loop Fasteners Bag for ACN-LS Lockit Slate Lockit Slate Handle Assembly with Kick-Stand Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ambient Recording ACN-LSW Lockit Slate with Modular Timecode and Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmbient Recording ACN-LSW Specs | Clapper | Material: Maple wood | | Antenna | SMA-F | | USB | Mini-B | | Power Consumption | 70 to 600 mA (6 V) | | Connectors | LEMO: LEMO series 0B 5‐pin (matching connector FGG/JGG.0B.305.CLADxx)
Pin 1: Ground
Pin 2: LTC IN
Pin 3: ASCII IN / OUT
Pin 4: Tune reference 1.92 MHz out / DC‐IN 6 to 18 V
Pin 5: LTC OUT | | Dimensions (L x W x H) | 80 x 2.5 x 1.1" (210 x 63 x 28 mm)
(Legal pad size) | | Weight | 15.8 oz (450 g) | | | | Package Weight | 5.7 lb | | Box Dimensions (LxWxH) | 17.7 x 13.3 x 3.8" |
