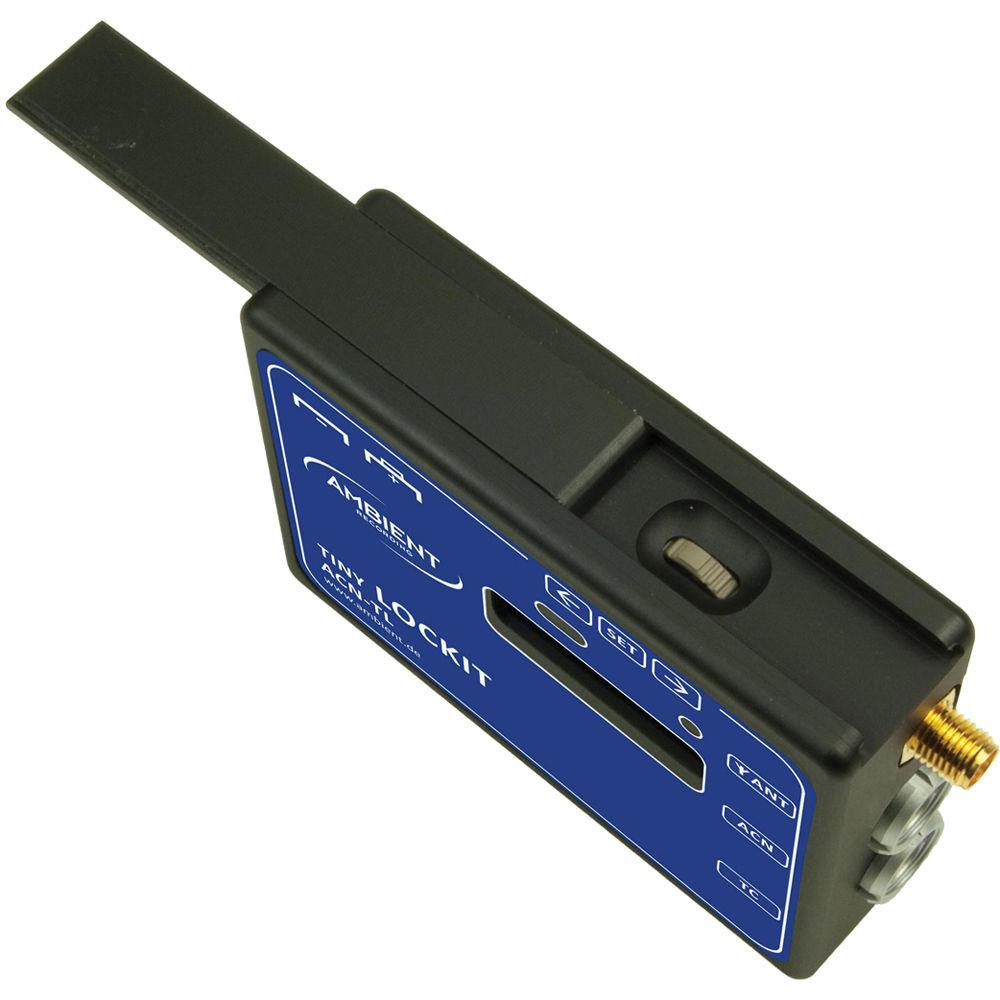

User Manual for Ambient Recording ACN-TL Tiny Lockit Timecode Generator & Transceiver Click to enlarge the picture
Contents of the user manual for the Ambient Recording ACN-TL Tiny Lockit Timecode
- Product category: Time Code Generators & Readers Ambient Recording
- Brand: Ambient Recording
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ambient Recording Time Code Generators & Readers
 |
User manual for the Ambient Recording ACN-TL Tiny Lockit Timecode contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ambient Recording product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ambient Recording user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ambient Recording product will considerably shorten its lifespan!
|

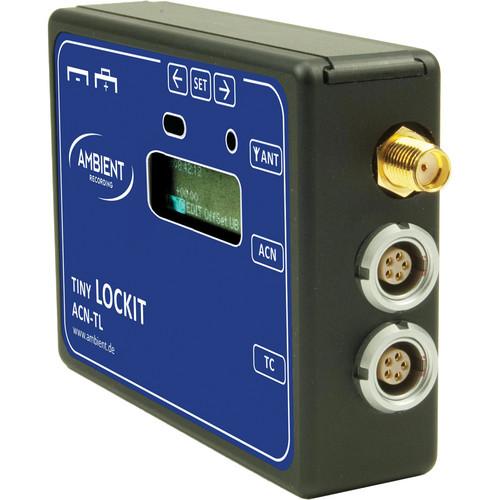

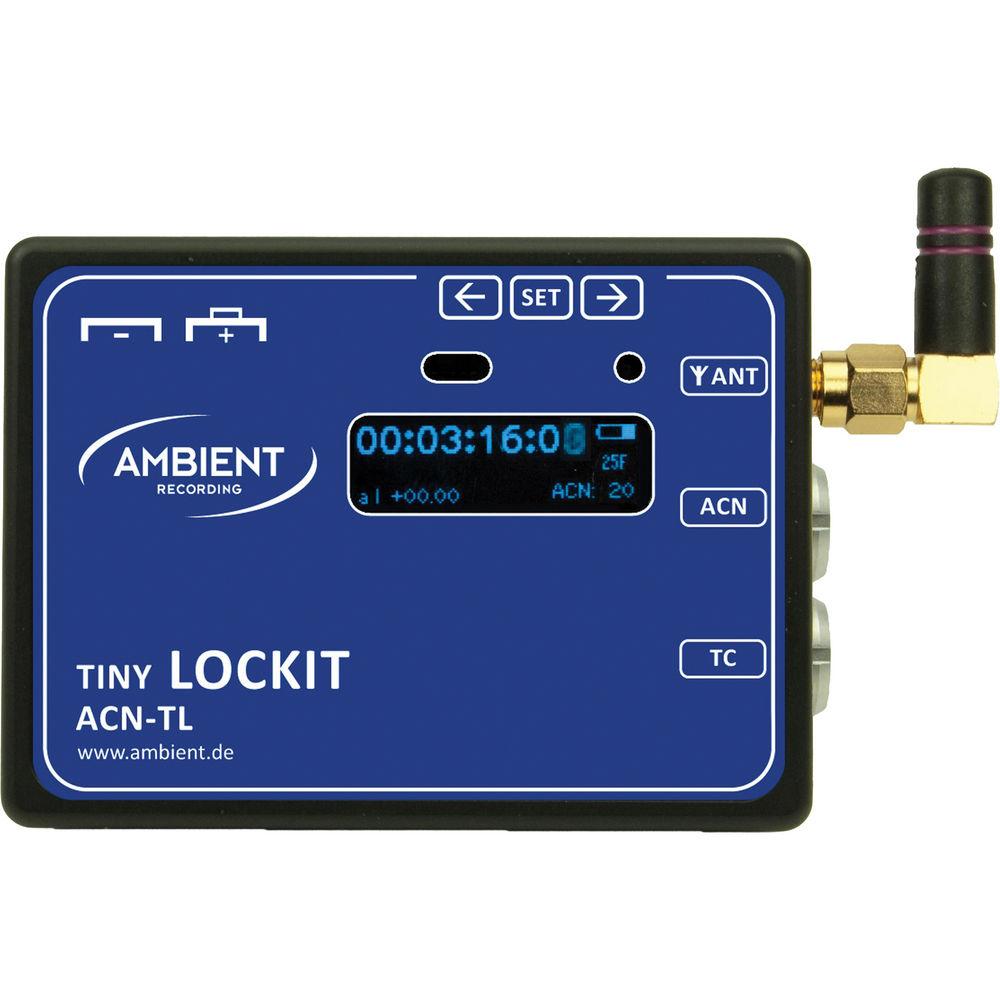

Product description The ACN-TL Tiny Lockit Timecode Generator & Transceiver from Ambient Recording is a temperature compensating timecode generator. Ambient Clockit Network support enables full generator-buffered timecode transceiver functionality. Connections consist of an antenna F connector and two 5-pin Lemos that can be configured for timecode in/out, RS232, USB, GPIO, switching, DC in/out, ASCII, tune signal, and PPF. Drift is less than a frame a day. -
- Temperature compensating timecode generator
- Generator buffered timecode transceiver
- Drift of less than 1 frame a day (~0,1ppm)
- Supports all used frame rates
- OLED display readable even in bright sunlight
- Adjustable timecode output for recording TC on audio track
- Conversion between LTC and MTC (via USB)
- Built-in antenna
- RS232, USB and GPIO port
- Full Ambient Clockit Network support
- Works 12 hours on 2 optional AAA batteries
- Machined and anodized aluminum body
In the Box Ambient Recording ACN-TL Tiny Lockit Timecode Generator & Transceiver 1-Year Limited Warranty User Manual PDF 2.2mbxssfbewcrztwvxszddwvbauvvdzarwd Table of Contents
|
Upload User Manual
Have you got an user manual for the Ambient Recording ACN-TL Tiny Lockit Timecode Generator & Transceiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmbient Recording ACN-TL Specs | Connections | External antenna F connector
Lemo 5-pin Lemo/ACN: timecode in/out, RS232 serial port TX-RX, USB, GPIO, switch function, DC out
Lemo 5-pin Lemo/TC: timecode in/out, ASCII, tune signal, PPF, DC in | | Drift | Less than 1 frame a day (~0,1 ppm) | | Power | Works on 2 AAA batteries, not included | | Housing | Machined and anodized aluminum | | Dimensions | 2.8 x 2.2 x .8" (7.2 x 5.6 x 2 cm) | | Weight | .26 lb (118 g) | | | | Package Weight | 0.84 lb | | Box Dimensions (LxWxH) | 9.9 x 5.95 x 2.3" |
Rating86% users recommend this product to others. And what about you?
This product has already been rated by 12 owners. Add your rating and experience with the product.
