User Manual for Ambient Recording ATE 208 SET Emesser Figure-8 Microphone with Accessories Click to enlarge the picture
Contents of the user manual for the Ambient Recording ATE 208 SET Emesser
- Product category: Stereo & Specialty Microphones Ambient Recording
- Brand: Ambient Recording
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ambient Recording Stereo & Specialty Microphones
|
User manual for the Ambient Recording ATE 208 SET Emesser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ambient Recording product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ambient Recording user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ambient Recording product will considerably shorten its lifespan!
|
Product description The ATE 208 Emesser from Ambient Recording is a compact condenser microphone that converts any standard boom mic into an M/S stereo mic system. The Emesser has a Figure-8 pickup pattern and operates on standard 48V phantom power. The mic is designed to deliver an enhanced dynamic range and it has a custom-tailored frequency response that's designed to match the acoustic pattern of a typical boom mic at 90°.
The mic has a standard TA3M connector, and comes with a Y-loom cable that allows you to connect the Emesser and any standard 3-pin XLR mic, and output both mics to a balanced 5-pin XLR output. This allows you to output both mono and stereo signals. The mic set also comes with a mounting clip and rubber rings, a foam windscreen, and a zippered carrying case. - Converts any standard boom mic into an M/S stereo mic system
- Provides seamless transitions between mono and stereo without altering sound characteristics
- Operates on standard 48V phantom power
- Offers enhanced dynamic range and a custom-tailored frequency response that's designed to match the acoustic pattern of a typical boom mic at 90°
- Included Y-loom cable connects to the Emesser and a standard shotgun mic, sending both signals to a single 5-pin XLR connector for stereo or mono output
- Mounting clip, rubber rings, foam windscreen, and zippered carrying pouch also included

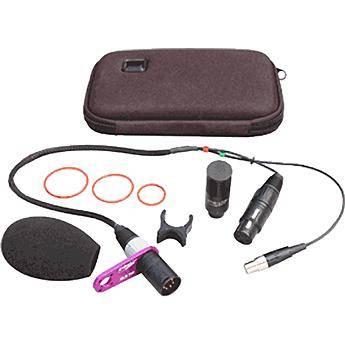

In the Box Ambient Recording ATE 208 SET Emesser Figure-8 Microphone with Accessories Y-Loom Cable Mounting Clip 3 x Rubber Rings Foam Windscreen Storage Pouch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ambient Recording ATE 208 SET Emesser Figure-8 Microphone with Accessories in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmbient Recording ATE 208 SET Specs | Transducer | Condenser | | Polar Pattern | Figure-8 | | Frequency Response | 200Hz to 16kHz | | Dynamic Range (Typical) | Not Specified by Manufacturer | | Signal-to-Noise Ratio | 66dB (CCIR)
79dBA (DIN/IEC) | | Maximum Input Sound Level | 132dB | | Power Requirements | +48V Phantom | | Output Impedance | Not Specified by Manufacturer | | Output Connectors | Emesser: TA3M
Y-Loom Cable: 5-Pin XLR | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions (LxDiameter) | 2.1 x 0.79" (53 x 20mm) | | Weight | 1.4 oz (40g) | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 8.0 x 7.0 x 2.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 22 owners. Add your rating and experience with the product.
