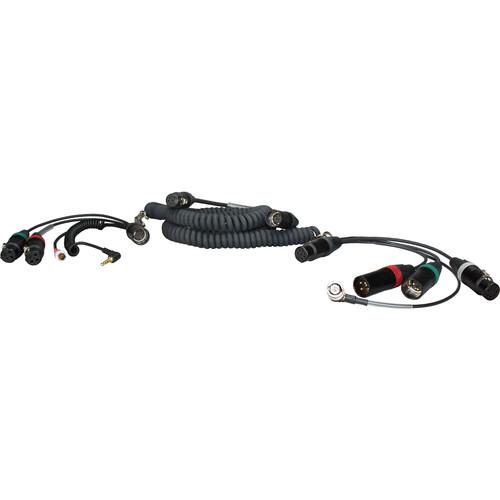

Product description The Coiled Breakaway Cable for Sound Devices 664 from Ambient Recording is used to connect a Sound Devices 664 mixer to a digital camcorder featuring a 5-pin XLR mono return to camera. It consists of three sections that come apart: two Y-breakout cables (one connects to mixer and one to camera) and a coiled breakaway cable in between. The overall extendable length of the cable is 15'. - XLR 7-Pin Male to XLR 7-Pin Female Coiled Mixer/Camera Loom Cable The XLR 7-Pin Male to XLR 7-Pin Female Coiled Mixer/Camera Loom Cable from Ambient Recording is a breakaway cable that provides two balanced lines (single shielded) and two leads for the return signal. The coiled cable reaches from over four feet when at rest, all the way to over sixteen feet when extended.
The cable features a 7-pin XLR male connector on one end, and a 7-pin XLR female at the other. The cable needs the appropriate breakout cable adapters (Y-cables) for use with specific mixer and camera combinations. - HBYATC-L-7-35W Breakout Y-Cable for Sound Devices 664 Mixer with Timecode Lemo The HBYATC-L-7-35W Breakout Y-Cable from Ambient Recording features the mixer-side Y-cable for a Sound Devices 664 mixer-camera loom. At one end of this Y cable is a 7-pin XLR connector. On the other end are two XLR connectors, one 3.5mm TRS, and a 5-pin Lemo connector.
- 7-pin XLR male to dual 3-pin XLR female
- Mono return via 3.5mm TRS right angle
- 5-pin Lemo (TC-OUT) connector for timecode
- To be used in conjunction with the HBS7-7 camera loom and HBY7TC-35, HBY7TC-35W, or HBY7TC-5 camera-side breakout cables
- HBY7TC-5 Breakout Cable The Ambient Recording HBY7TC-5 Breakout Cable allows you to connect devices with a 7-pin XLR female connector to those with dual 3-pin XLR male connectors. It also features return via Mono return via 5-pin XLR female.
- 7-pin XLR female to dual 3-pin XLR male
- Mono return via 5-pin XLR female
- BNC right angle plug for time code from the camera to the SD 552, SD 633, or SD 664 mixer
In the Box Bundle Items XLR 7-Pin Male to XLR 7-Pin Female Coiled Mixer/Camera Loom Cable rxverffvvxeswqyaudru HBYATC-L-7-35W Breakout Y-Cable for Sound Devices 664 Mixer with Timecode Lemo HBY7TC-5 Breakout Cable Table of Contents
|
Upload User Manual
Have you got an user manual for the Ambient Recording Coiled Breakaway Cable for Sound Devices 664 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - XLR 7-Pin Male to XLR 7-Pin Female Coiled Mixer/Camera Loom Cable
| Connectors | 1 x 7-pin XLR male
1 x 7-pin XLR Female | | Length | 4.6 coiled to 16.4 ft extended (1.4 to 5 m) | - HBYATC-L-7-35W Breakout Y-Cable for Sound Devices 664 Mixer with Timecode Lemo
| Connector 1 | 1 x 7-pin XLR male | | Connector 2 | 2 x 3-pin XLR female
1 x 3.5mm TRS right angle
1 x 5-pin Lemo, timecode | | Length | 11.8" (30 cm) | - HBY7TC-5 Breakout Cable
| Source | 7-pin XLR female | | Breakout Cable Connectors | Dual 3-pin XLR male
Mono return via 5-pin XLR female
BNC right angle plug for time code from the camera to the SD 552, SD 633, or SD 664 mixer | | Length | 11.8" (30 cm) |
