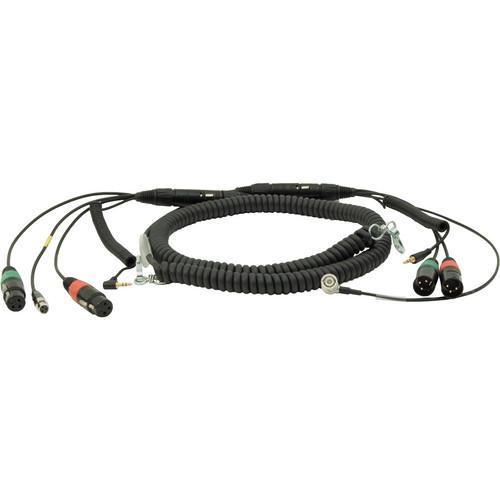

User Manual for Ambient Recording HBS552Y7-35 Coiled Mixer Cable for SD 552 Mixer Click to enlarge the picture
Contents of the user manual for the Ambient Recording HBS552Y7-35 Coiled Mixer Cable
- Product category: Mixer Accessories Ambient Recording
- Brand: Ambient Recording
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ambient Recording Mixer Accessories
|
User manual for the Ambient Recording HBS552Y7-35 Coiled Mixer Cable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ambient Recording product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ambient Recording user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ambient Recording product will considerably shorten its lifespan!
|
Product description The 70.8 to 157.4" Ambient Recording HBS552Y7-35 Coiled Mixer Cable for SD 552 Mixer comes with a two Y-breakout cable plus the coiled HBS7-7 breakaway cable. On the mixer side, the HBYATC7-35W Y-breakout cable features a 7-pin XLR male to dual 3-pin XLR female and mono return via 3.5mm TRS right angle and TA3F (TC-IN) connector for time code. On the camera side, the HBY7TC-35 Y-breakout cable has a 7-pin XLR female to dual 3-pin XLR male and mono return via 3.5mm TRS mini plug on coiled cord with BNC right angle plug for time code from camera to the SD 552 mixer. In the Box Ambient Recording HBS552Y7-35 Coiled Mixer Cable for SD 552 Mixer (70.8 to 157.4") XLR 7-Pin Male to XLR 7-Pin Female Coiled Mixer/Camera Loom Cable HBYATC7-35W Breakout Y-Cable for Sound Devices 552 Mixer with Timecode TA3F rssfdysurrduwc HBY7TC-35 Breakout Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ambient Recording HBS552Y7-35 Coiled Mixer Cable for SD 552 Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmbient Recording HBS552Y7-35 Specs | Connector | Mixer Side: 7-pin XLR male to dual 3-pin XLR female, mono return via 3.5 mm TRS right angle and TA3F (TC-IN) connector for time code
Camera Side: 7-pin XLR female to dual 3-pin XLR male and mono return via 3.5mm TRS mini plug on coiled cord with BNC right angle plug for time code from camera to the SD 552 mixer | | Length | 70.8 to 157.4" (180.0 to 400.0 cm) | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 11.6 x 5.8 x 1.3" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 46 owners. Add your rating and experience with the product.
