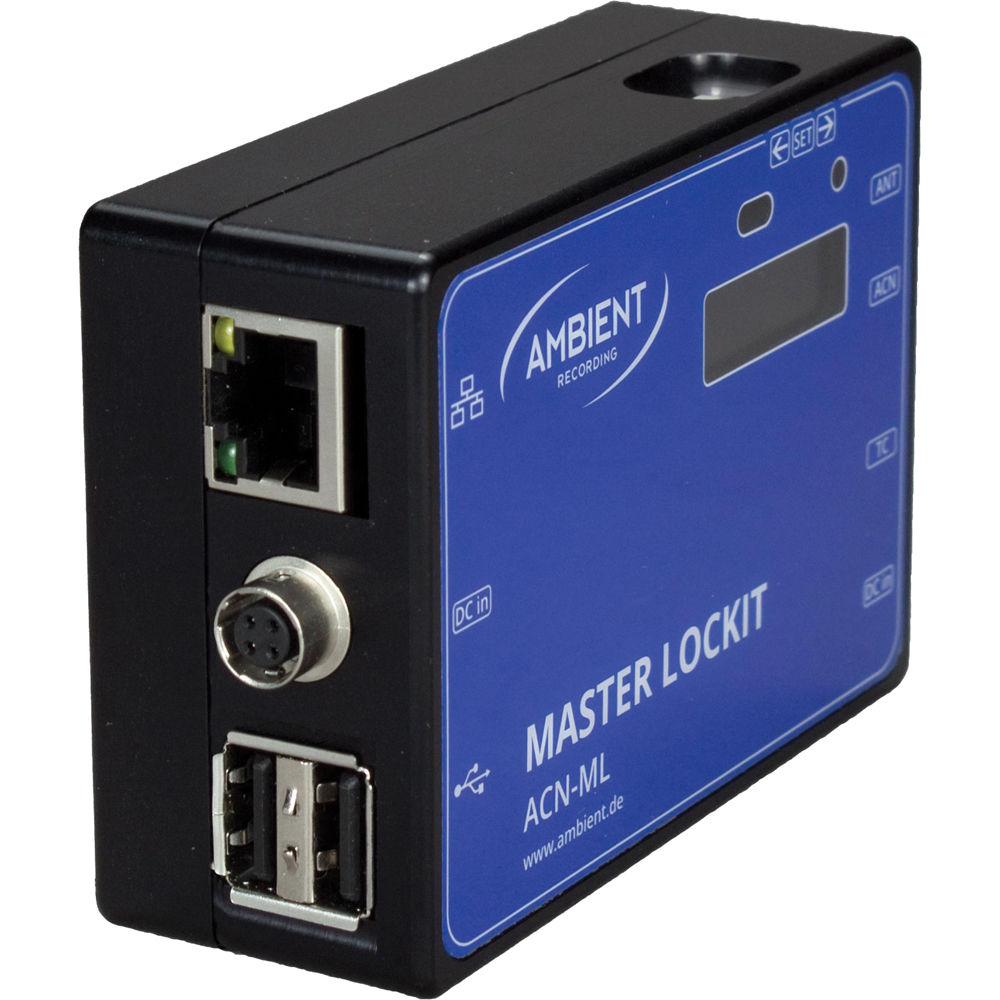

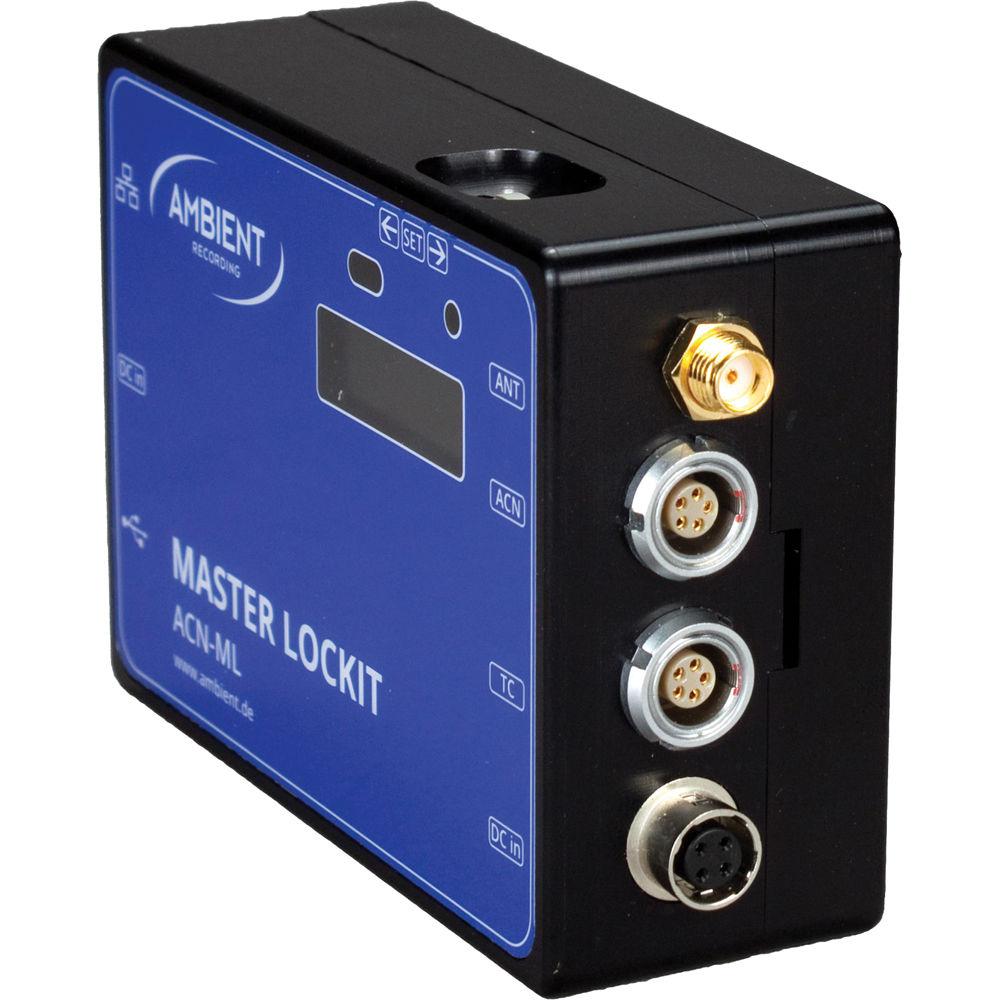

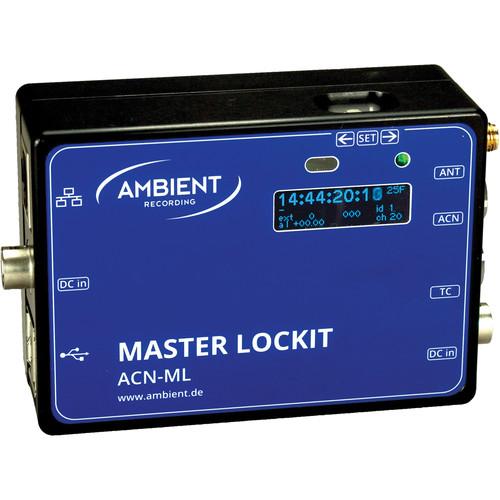

User Manual for Ambient Recording Master Lockit ACN-ML Timecode Hub Transceiver Click to enlarge the picture
Contents of the user manual for the Ambient Recording Master Lockit ACN-ML Timecode
- Product category: Time Code Generators & Readers Ambient Recording
- Brand: Ambient Recording
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ambient Recording Time Code Generators & Readers
 |
User manual for the Ambient Recording Master Lockit ACN-ML Timecode contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ambient Recording product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ambient Recording user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ambient Recording product will considerably shorten its lifespan!
|
Product description The Master Lockit ACN-ML Timecode Hub Transceiver from Ambient Recording is a timecode master, wireless video proxy server, and "On the Set" metadata synchronization hub. It features less than one frame a day drift due to continuous jam and generator buffered timecode transceiver mode. Built-in WiFi router enables iPads running LockitSCRIPT and Tonmeister apps to automatically sync all metadata. The Master Lockit serves as the metadata synchronization hub as its onboard webserver collects and stores all metadata on the set. Meanwhile, iPads running LockitSCRIPT and Tonmeister apps maintain a local data backup.
The Master Lockit is compatible with ARRI ALEXA cameras via Ethernet, enabling the unit to provide the ALEXA with the driftless timecode while simultaneously collecting metadata. In addition, it has built-in GP I/O and LANC ports, enabling the Master Lockit to collect record start / stop positions of most cameras, including Red, Blackmagic, and Panasonic.
The Master Lockit can interface with Teradec and Vitec recorders as well, storing up to 64GB of video, and distributing video proxies directly into the LockitSCRIPT app. The video clips are associated with metadata, enabling you to use the LockitSCRIPT app to reference actual video clips within associated takes and scenes, while accessing all data collected during that shot. - Timecode master, wireless video proxy server, and "On the Set" metadata synchronization hub
- Built-in WiFi enables ACN communication between iPads
- Reads and stores ARRI ALEXA metadata via Ethernet
- Reads and stores rec start/stop TC of cameras with GP I/O or Lanc, including Red, Blackmagic, and Panasonic
- Wireless video proxy distribution directly into the LockitSCRIPT app
- OLED display readable in brightest sunlight
In the Box Ambient Recording Master Lockit ACN-ML Timecode Hub Transceiver Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ambient Recording Master Lockit ACN-ML Timecode Hub Transceiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmbient Recording ACN-ML Specs | Drift | Less than 1 frame a day (~0.1ppm) | | Material | Rugged, anodized aluminum | | Compatibility | ARRI ALEXA, Red, Blackmagic, Panasonic | | Dimensions (W x H x D) | 4.8 x 2.6 x 1.2" (12.2 x 6.6 x 3.0 cm) approximate | | Weight | 10.6 oz (300 g) | | | | Package Weight | 0.835 lb | | Box Dimensions (LxWxH) | 7.2 x 4.7 x 2.55" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 06 owners. Add your rating and experience with the product.
