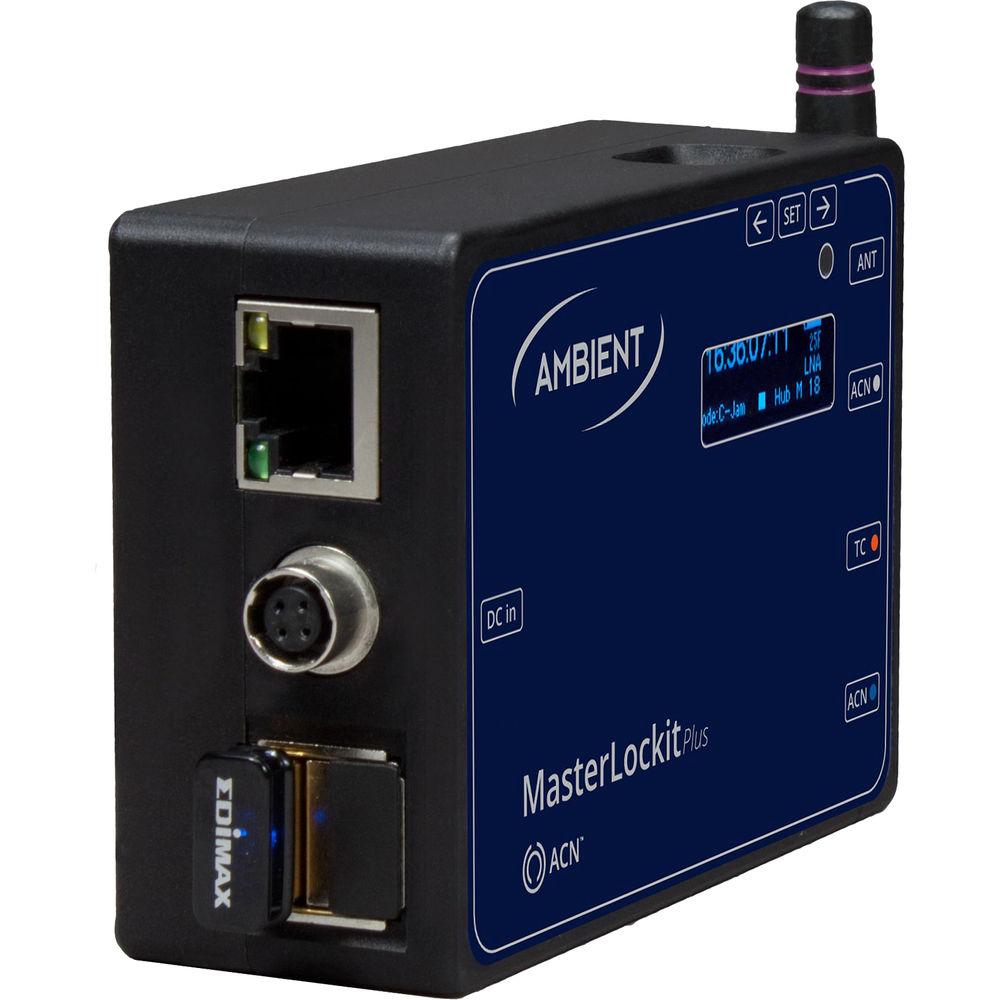

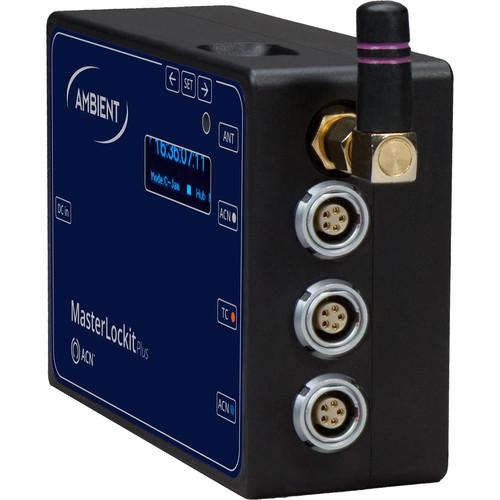

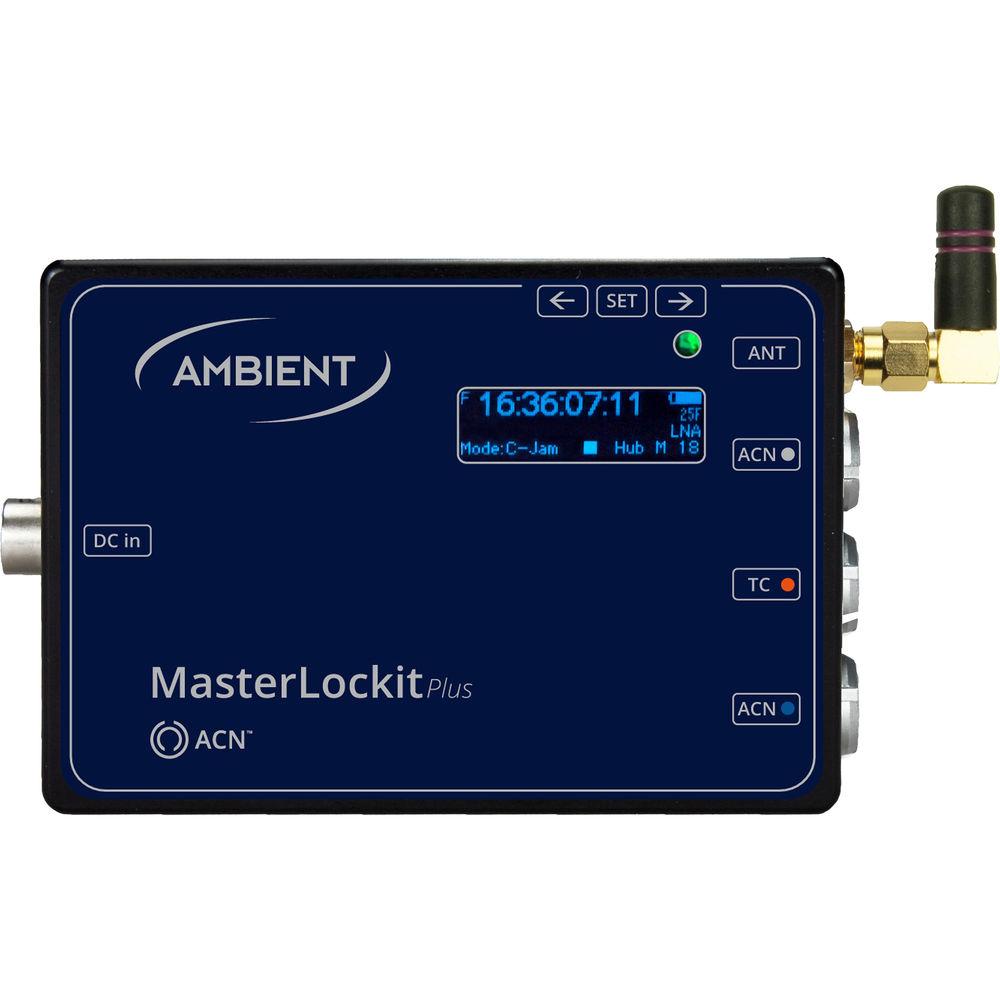

User Manual for Ambient Recording MasterLockitPlus for Zeiss CP.3 Metadata Recording Click to enlarge the picture
Contents of the user manual for the Ambient Recording MasterLockitPlus for Zeiss CP.3
- Product category: Time Code Generators & Readers Ambient Recording
- Brand: Ambient Recording
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ambient Recording Time Code Generators & Readers
 |
User manual for the Ambient Recording MasterLockitPlus for Zeiss CP.3 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ambient Recording product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ambient Recording user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ambient Recording product will considerably shorten its lifespan!
|
Product description The MasterLockitPlus from Ambient Recording reads, stores, and provides Zeiss CP.3 lens metadata. You can digitally record vital lens settings accurately frame-by-frame all synced to timecode. This replaces the need to manually write down lens settings for every shot and eliminates error. You can also streamline the production and post production processes ensuring a better-quality product.
The MasterLockitPlus enables easy and intuitive synchronization of cameras and audio recorders while making the alignment of captured material a one-click operation. Based around a very accurate, temperature-compensated crystal oscillator (TCVCXO), the system can be calibrated in the field to a reference deviation of less than +/- 0.1ppm. It is a part of the LockitNetwork Production Service, that takes care of your daily on-set reports and metadata workflow from film set to post-production. Integrated Lockit - Accurate Lockit timecode generator
- Generator buffered timecode transceiver
- Drift of less than 1 frame a day (~0,1ppm)
- Supports all SMPTE frame rates
- Adjustable timecode output for recording TC on audio track
Built-In Hub - Collects and stores all ACN and LockitScript metadata
- Enables ACN iOS LockitScript app communication
- Reads and stores ARRI ALEXA metadata
- Reads and stores RED camera metadata (all DSMC cams)
- Reads and stores Sound Devices 788T & 6-series metadata
- Creates shot log, sound report, ALE, CSV, JSON reports with collected metadata
Web Interface - Remote control of MasterLockit
- Remote control of ACN ready Lockit devices
- Remote control of sound devices 788T & 6-series recorders
In the Box Ambient Recording MasterLockitPlus for Zeiss CP.3 Metadata Recording Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ambient Recording MasterLockitPlus for Zeiss CP.3 Metadata Recording in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmbient Recording ACN-MLP Specs | Material | Anodized, pearl-blasted aluminum | | Connectors | 2 x USB
TC-Lemo 5-pin: tc I/O, adjustable tc level
2 x ACN-Lemo 5-pin: 2nd tc I/O, serial interface
Ethernet
Hirose I/O to loop through DC | | Power Supply | Requires external DC Supply with 6 to 24 VDC, 1.5 A | | Power Consumption | when charged / charging @ extended DC Supply: 500 mA / 850 mA @ 6 V, 250 mA / 400 mA @ 12 VDC, 150 mA / 200 mA @ 24 VDC | | Backup Battery | Internal: Lithium-ion backup battery, up to 3 hours when fully charged | | Mounting Options | 3/8" thread | | Dimensions | 3.5 x 2.53 x 1.3" (91 x 64.5 x 33 mm) (overall length with Wi-Fi and SMA antenna detached: 4.03" (102.5 mm)) | | Weight | Approximately 9.7 oz (275 g) |
