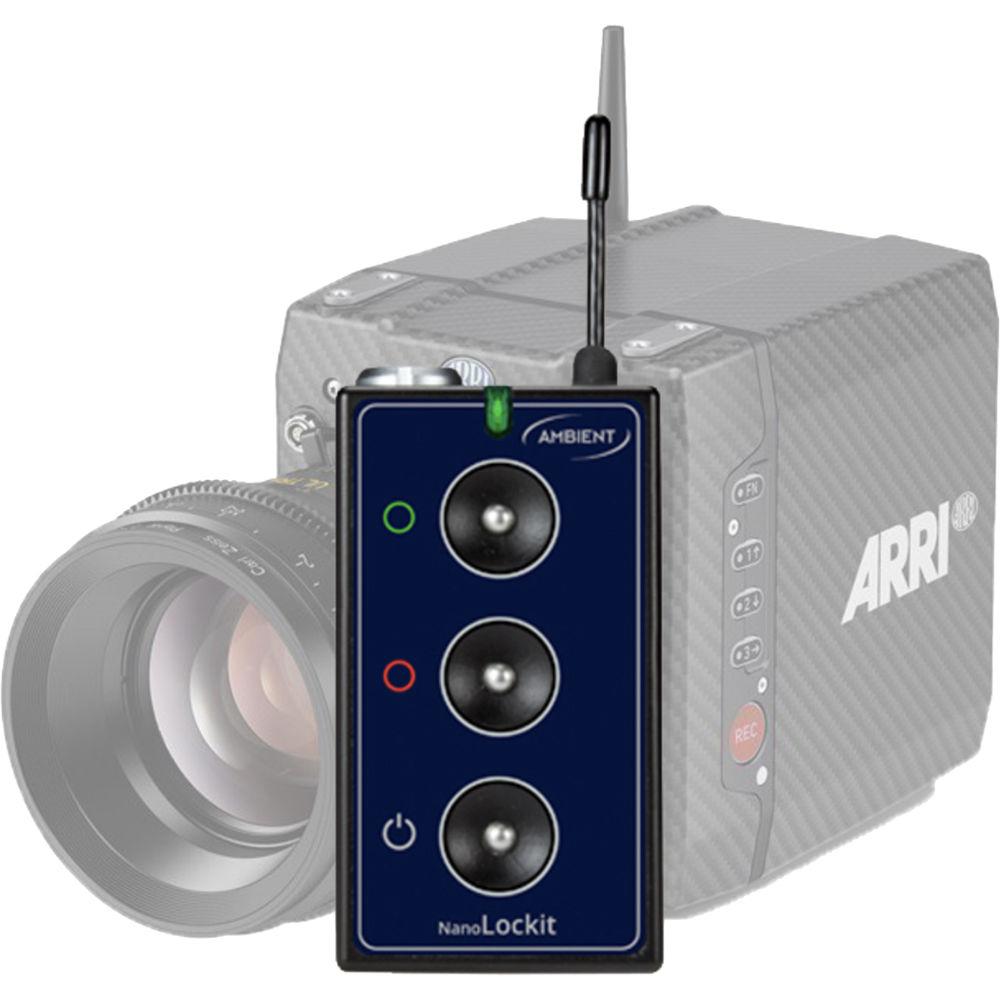

User Manual for Ambient Recording NanoLockit Pro Kit Blue for ARRI ALEXA Mini Click to enlarge the picture
Contents of the user manual for the Ambient Recording NanoLockit Pro Kit Blue
- Product category: Time Code Generators & Readers Ambient Recording
- Brand: Ambient Recording
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ambient Recording Time Code Generators & Readers
 |
User manual for the Ambient Recording NanoLockit Pro Kit Blue contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ambient Recording product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ambient Recording user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ambient Recording product will considerably shorten its lifespan!
|

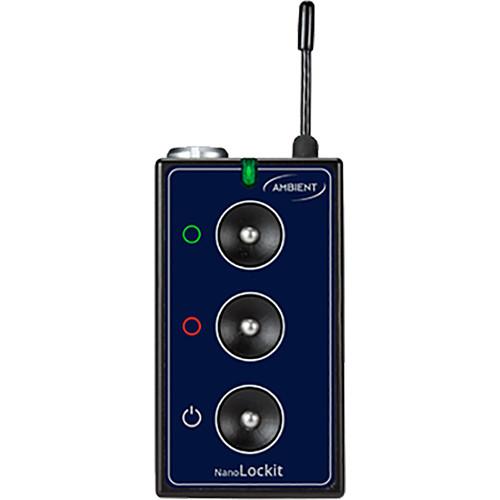

Product description The matchbox-sized NanoLockit from Ambient Recording is a highly accurate and easy-to-use timecode generator which allows you to wirelessly sync timecode and frame rate between devices. The Pro Kit Blue for ARRI ALEXA Mini includes the NanoLockit, a timecode cable for connecting to the ALEXA Mini, and a USB cable for external power connection, internal battery charging, MIDI timecode, communication, and firmware updates. The unidirectional timecode cable features a standard 5-pin LEMO connector on one end and 5-pin LEMO right-angle connector for the ALEXA Mini on the other.
Synced devices enable you to generate clips that can be quickly auto-conformed in professional editing software, streamlining your post-production workflow. The NanoLockit lets you generate timecode at all frame rates using the built-in Real Time Clock (RTC), or jam-sync other units by feeding in external timecode via the 5-pin LEMO connection. Syncing up is a one button experience as the unit self-configures and the frame rate is set automatically when jammed.
Timecode and metadata are transmitted via the proprietary 2.4 GHz, ACN long-range radio network, making the unit compatible with all other ACN Lockit devices. Power is provided externally via the micro-USB port or by the rechargeable battery, which provides 35+ hours of operation on a full charge. With its sturdy aluminum body and locking LEMO port, the NanoLockit is well-equipped to withstand the prolonged rigors of on-set use. - NanoLockit Timecode Generator
-
- Highly accurate wireless timecode generator with matchbox-sized form-factor
- Generate timecode using built-in Real Time Clock, or feed in external timecode via the LEMO port to jam-sync other units
- Self-configuring SMPTE and MIDI timecode in/out
- Auto frame rate configuration on jam
- Supports all timecode frame rates
- On-board wireless ACN system: long-range radio network transmits timecode/metadata and enables syncing of all units on set with one click
- Compatible with all other ACN Lockit devices
- Professional, locking LEMO connector with TC in/out and ACN metadata support
- Timecode output level adjustable for timecode on audio track with non-timecode equipment
- Set RTC and frame rate with free LockitToolbox software (Mac/Windows)
- Less than 1 frame drift per day in autonomous mode, zero drift with active C-Jam master in ACN
- TRX mode for sending pre-recorded timecode to slates and remotely start/stop recorders via external timecode
- Easy-to-read bicolor status LED
- Micro-USB connector for external power supply, simultaneous internal battery charging, MIDI timecode, communication, and firmware updates
- Auto power on external supply feature enables set-and-forget operation on hard-to-access configurations such as "steadycams", gimbals, and drones
- Rechargeable battery: 35 hours+ operation on full charge
- 2 hours charging time for full charge, 15 minutes charging time for 4 hours of operation
- Solid aluminum body and self-locking LEMO interface to withstand the rigors of on-set use

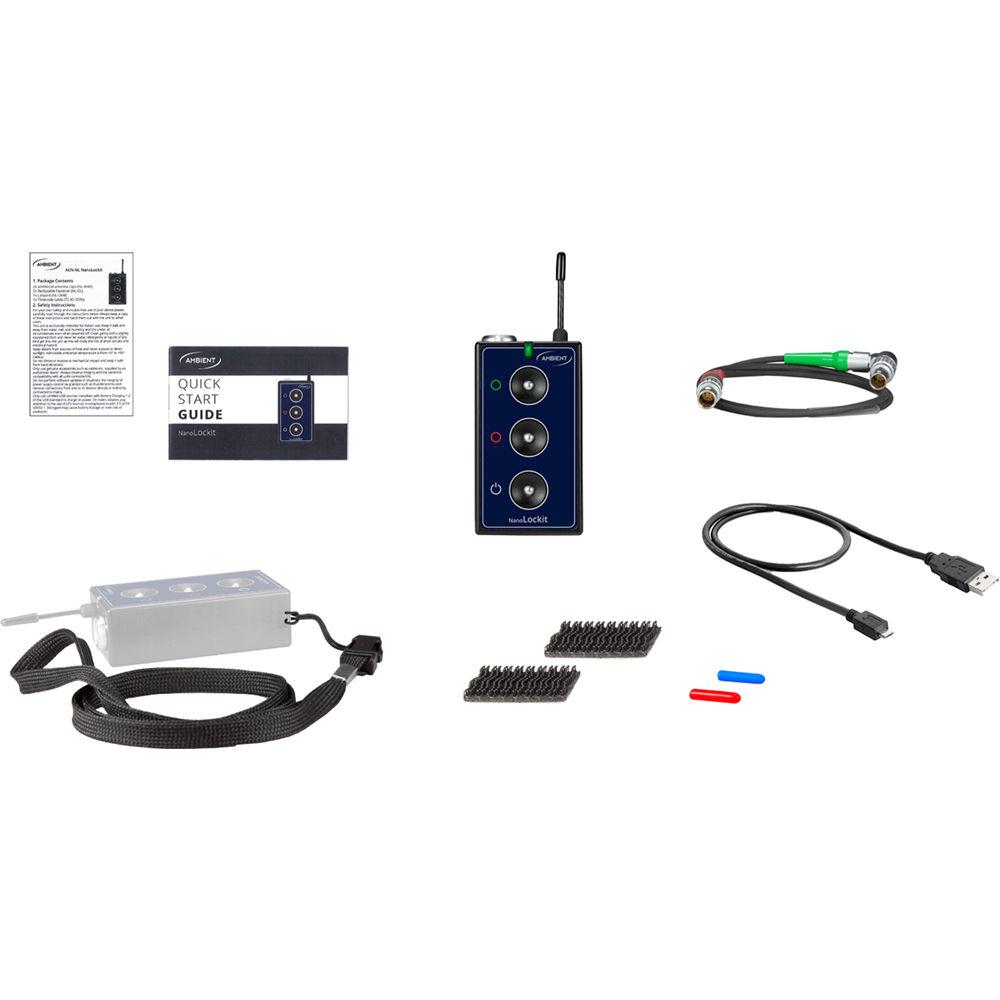

In the Box Ambient Recording NanoLockit Pro Kit Blue for ARRI ALEXA Mini NanoLockit Wireless Timecode Generator (Single) TC-IO-RA Unidirectional Timecode Cable USB Cable USB-A to Micro-USB B Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ambient Recording NanoLockit Pro Kit Blue for ARRI ALEXA Mini in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmbient Recording NanoLockit Specs | | | Timecode | Supports all timecode frame rates | | Timecode Input & Output | 1 x 5-pin LEMO connector | | Operation Modes | Generator mode
TRX mode | | Wireless Transmission | Proprietary ACN communication and synchronization network
Transmits timecode and metadata
Frequency: 2.4 GHz | | Power | External Power: Micro-USB
Internal Power: Rechargeable lithium-ion battery | | Battery | Battery Life: 35 hours (with full charge)
Charge Time: 2 hours (full charge), 15 minutes (for 4 hours of operation) | | Dimensions | 2.6 x 1.4 x 0.8" / 6.6 x 3.7 x 2 cm
1.2" / 3 cm (antenna) | | Weight | 2.5 oz / 72.0 g | | | | Connector 1 | 5-pin LEMO | | Connector 2 | 5-pin LEMO right-angle | | Length | 24" / 60 cm | | | | Connector 1 | USB-A | | Connector 2 | Micro-USB B | | Length | 19.7" / 50 cm | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 5.0 x 2.5 x 2.0" |
