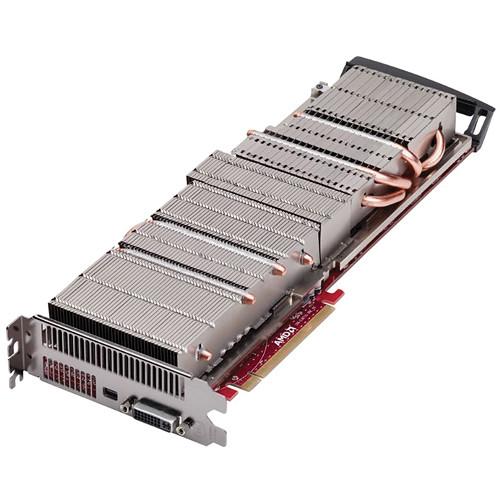

User Manual for AMD FirePro S10000 Passive Server Graphics Card Click to enlarge the picture
Contents of the user manual for the AMD FirePro S10000 Passive Server Graphics
- Product category: Graphic Display Cards AMD
- Brand: AMD
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AMD Graphic Display Cards
|
User manual for the AMD FirePro S10000 Passive Server Graphics contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AMD product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AMD user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AMD product will considerably shorten its lifespan!
|
Product description Intended for server or high-end workstation graphics and parallel processing, the AMD FirePro S10000 Passive Graphics Card has 6GB of GDDR5 vRAM coupled to 3584 Stream Processors with a 384-bit memory interface. The hardware back-end provides processing speeds up to 5.91 TFLOPS for rendering high-resolution graphics in real time or accelerating parallel software processes. The S10000 also supports video output through one Mini DisplayPort output and one dual-link DVI output. This iteration of the S10000 uses a passive heatsink cooler. The cooler uses no moving parts for increased reliability and reduced power consumption. However, this design is dependent on the workstation's or server's internal airflow to cool the GPU. - Eyefinity 2.0 Technology
- AMD Eyefinity 2.0 Multi-Monitor Technology allows for easy arrangement of multiple monitors in many different configurations with resolutions of up to 16K by 16K. The amount of monitors is only limited by the maximum number of outputs supported by the GPU. Eyefinity 2.0 is compatible with 3D images via DisplayPort 1.2.
- 30-bit Display Pipeline
- A Full 30-bit Display Pipeline allows for accurate color reproduction by maintaining a 10-bit resolution for each RGB component.
- PowerTune
- Power management technology which provides direct control over GPU power usage. PowerTune dynamically adjusts clock speed to operate within the power parameters set by the user.
- ZeroCore Power Technology
- Shuts down the GPU when not in use to greatly reduce power usage while the card is idle.
- 4K Support
- Using outputs capable of driving 4K and UHD displays, you can display graphics, games, and video in 4K resolution (4096 x 2160) for increased detail on 4K resolution displays.
- PRT
- Partially Resident Textures allow for graphics memory to behave as a hardware-managed cache. This way only the necessary data to create a scene can be streamed on demand straight from GPU memory, increasing graphics rendering efficiency, especially with large texture libraries.
- DirectGMA Support
- Enables low latency, high-bandwidth peer-to-peer data transfers between devices on host systems' PCI bus and AMD FirePro GPUs. Devices supporting DirectGMA can write directly into the local memory of FirePro GPUs - and vice versa. This functionality can dramatically reduce latency and host system "overhead" as needed for real-time broadcasting and other types of high-speed communications applications.
- DOPP
- Display Output Post Processing gives you the ability to adjust and/or capture the final output of the graphics card by reading the output directly from GPU memory. Adjustments that can be made include blending, warping, color correction, and other graphical computations that can be performed on the image. Transformations are hardware based, so latency is minimized.
UPC: 840777063439 In the Box AMD FirePro S10000 Passive Server Graphics Card 1 x Mini DisplayPort
1 x DVI DL Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AMD FirePro S10000 Passive Server Graphics Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAMD S10000 Specs | GPU | AMD FirePro S10000:
Stream Processors: 3584
Node Size: 28 nm
Architecture: Graphics Core Next (GCN) | | Interface | PCI Express 3.0 x16 | | Memory | Interface Width: 384-bit
Interface: GDDR5
Bandwidth: 480 GB/s
Configuration: 6GB | | Floating Point | Single Precision Performance: 5.91 TFLOPS
Double Precision Performance: 1.48 TFLOPS | | Outputs | 1 x Mini DisplayPort
1 x DVI DL | | Maximum Resolution | DisplayPort: 4096 x 2160
Dual-link DVI: 2560 x 1600 | | APIs | OpenGL: 4.4
OpenCL: 1.2
DirectX: 11.1 (will support 12)
Shader Model: 5.0 | | Form Factor | Width: Dual-slot
Full-height, Full-length | | Power Requirements | Power Consumption: 375 W
Minimum System Power Requirement: 750 W
PCI Power Connectors:
2 x 8-pin | | Compliance | FCC, CE, C-Tick, BSMI, KCC, UL,VCCI, RoHS, WEEE | | System Requirements | PCI Slots: 1 x PCI Express 3.0 x16
RAM: 2048 MB
OS: 32/64-bit Microsoft Windows 8/7/Vista/Server 2008 R2
Optical Drive: DVD-ROM drive for software installation (downloads also available) |
