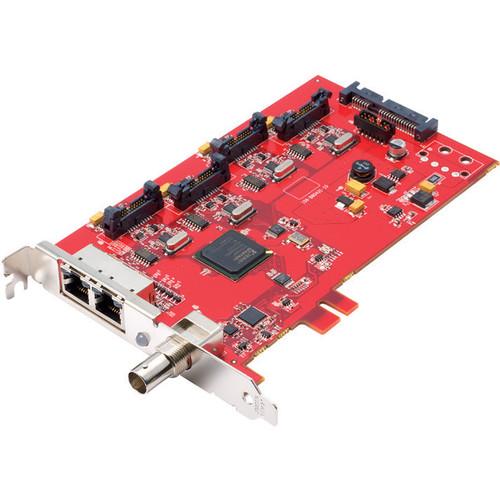

Product description The single-slot form factor FirePro S400 Synchronization Module from AMD is able to sync between one and four compatible FirePro Graphics cards using genlock or Framelock. Genlock is common in broadcast video applications, and can be generated internally or come from an external "house" source via a BNC sync input. Framelook, meanwhile, is specific to computer graphics, combining output lock (synchronized display output) and 3D swap lock (simultaneous 3D buffer swapping) to ensure multiple GPUs in the connected systems present their outputs in lock-step. This is useful if images from multiple display outputs are being aggregated into one image. The card features dual RJ-45 ports so that daisy-chaining can be used to extend synchronization across multiple computers. - Supports up to Four GPUs Per Module
- Enables a high density of workstation GPUs in a single machine
- Field Upgradeable Firmware
- Improved functionality can be deployed after initial installation of the module without opening the host computer
- Full Hardware-Based Synchronization
- On board logic is dedicated to Genlock and Framelock functionality, helping to ensure accurate and consistent synchronization for all applications
- Daisy-Chaining Capability
- Dual RJ-45 ports allow multiple machines to be synced, and allows multiple channels of 3D-rendered content to be played out in lock-step
- Genlockable to Nearly Any Source
- House sync capability through the BNC input supports PAL and NTSC SD video, blackburst, HDTV tri-level, TTL, and even SDI sync
- Serial ATA (SATA) Power Connector
- Allows power to be provided by a modern power connector, as the older 4-pin IDE connector is becoming obsolete, particularly in newer OEM chassis designs
UPC: 727419415927 In the Box AMD FirePro S400 Synchronization Module 4 x GPU Communication Ribbon Cables Limited 3-Year Warranty Data Sheet PDF 958.9kbawrtezbedxfubqerwwrbydtttqeq Table of Contents
|
Upload User Manual
Have you got an user manual for the AMD FirePro S400 Synchronization Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAMD S400 Specs | | | Connectivity | 2 x RJ-45 for daisy-chaining multiple machines
1 x Genlock input on BNC | | | | Hardware | 450 W power supply (suggested)
1 x Free PCI-E slot
512 MB RAM Microsoft Windows XP (32/64-bit)/7/8/Server 2008 R2 (64-bit), Linux (32/64-bit) | | Compatibility | AMD FirePro W9100, W9000, W8100, W8000, W7100, W7000, V7900, V7900 SDI | | | | Form Factor | Single-slot | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 11.6 x 9.6 x 3.1" |
