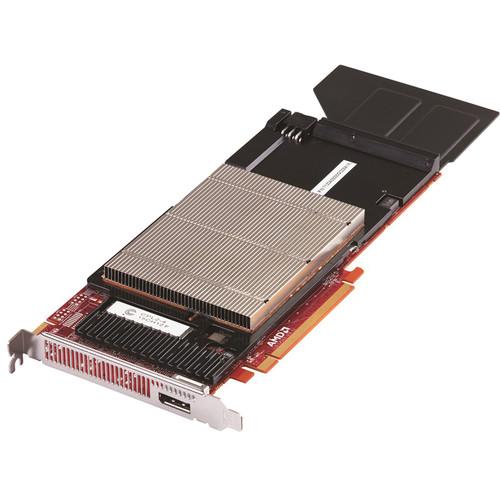

User Manual for AMD FirePro S7000 Server Graphics Card Click to enlarge the picture
Contents of the user manual for the AMD FirePro S7000 Server Graphics Card
- Product category: Graphic Display Cards AMD
- Brand: AMD
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AMD Graphic Display Cards
|
User manual for the AMD FirePro S7000 Server Graphics Card contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AMD product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AMD user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AMD product will considerably shorten its lifespan!
|
Product description The FirePro S7000 Server Graphics Card from AMD is a server-side graphics card for applications where desktop-grade graphics need to be deployed over a network. It is designed to give thin client and zero client remote users a similar experience to having a local workstation while keeping all of the hardware required for heavy lifting confined to a centralized location for simpler maintenance and administration.
The card features 4GB of GDDR5 memory over a 256-bit memory interface providing a memory bandwidth of 154 GB/s. A DisplayPort output allows local displays to be connected to the card. Using AMD Eyefinity technology and MST hubs or daisy-chainable monitors it is possible to connect up to a total of six displays via DisplayPort.
The FirePro S7000 is designed for applications that require or benefit from the additional processing power a dedicated graphics card provides, such as CAD, video editing, 3D animation, render farms, and financial services. It also supports virtual machine applications, including the installation of multiple GPUs in one server to provide one dedicated GPU per virtual machine. - Popular API Support
- DirectX 11, OpenCL 1.2, OpenGL 4.2 and Shader Model 5.0 support allows GPU-aware applications to benefit from the acceleration provided by a dedicated graphics card, taking much of the workload off the server's CPU
- Virtualization Support
- Supports for VDIs (virtual desktop infrastructures) including RemoteFX, VMware ESX, and Citrix XenServer means this card is capable of providing GPU acceleration to virtual machines from Citrix, VMware, and Microsoft
- 2.4 TFLOPS Performance
- This card is capable of processing up to 2.4 trillion single-precision floating point operations per second as well as 152 billion double-precision floating point operations per second
- SMBus Support
- Enables temperature reading at boot time
- AMD Power Tune
- Dynamically boosts the core clock speed up to 30% wherever possible to allow applications to maximize the processing power they have available while reducing it when not required to conserve energy. At maximum performance the card consumes 150W of power
- Passive Cooling
- A fan-less heatsink design means totally silent operation and no moving parts to wear out and break for higher MTBF (mean time between failures)
- Unified Driver
- A unified driver across the entire FirePro line simplifies IT maintenance and administration
- AMD Graphics Core Next (GCN) Architecture
- Features a 28nm core architecture designed to increase efficiency by putting more transistors in less space. In addition, the architecture is engineered to be capable of performing many of the processing tasks that previously could only be handled by a computer's CPU
- Planned 4-Year Life Cycle
- Engineered and tested by AMD to help ensure a minimum four year lifecycle
- Removeable Retention Bracket
- Gives IT the flexibility to install in machines with differing internal layouts
- PCI Express 3.0 x16 Support
- Provides twice the bandwidth of PCI Express 2.0; for example, an x8 PCI Express 3.0 slot has the same bandwidth as a x16 PCI 2.0 slot. In addition, the card remains backward-compatible with motherboards using earlier generations of PCI Express
In the Box AMD FirePro S7000 Server Graphics Card DisplayPort to Single-Link DVI Adapter Limited 3-Year Warranty User Manual PDF 851.5kbrxvcrwruruxvacbbrtaybutrsswdrzxxx Table of Contents
|
Upload User Manual
Have you got an user manual for the AMD FirePro S7000 Server Graphics Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAMD S7000 Specs | | | GPU | FirePro S7000 | | Memory | 4 GB | | Memory Type | GDDR5 | | Memory Interface | 256-bit | | Memory Bandwidth | 154 GB/s | | Compute Performance | Single-Precision: 2.4 TFLOPS
Double-Precision: 152 TFLOPS | | | | Outputs | 1 x DisplayPort | | Host Interface | PCI-E 3.0 x16 | | | | Software | Windows (32- and 64-bit): 8, 7, Vista, XP
Windows Server (64bit): 2008
Linux (32- and 64-bit): Support varies depending on distribution | | Hardware | 1 x Free x16 PCI-E slot (use PCI 3.0 or later for optimal performance)
10 CFM airflow cooling or better
450 W or better power supply
1 x 2x3-pin (6-pin) PCI-E power connector
2 GB or more system RAM
Internet connection for diver installation | | | | Supported APIs | DirectX 11, OpenGL 4.2, OpenCL 1.23, Shader Model 5.0 | | Supported VDIs | RemoteFX, VMware ESX, Citrix XenServer | | Thermal Solution | Passive heatsink | | Power Consumption | Maximum: 150 W | | Form Factor | Single slot; full height, full length | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 11.8 x 6.8 x 3.1" |
