Product description

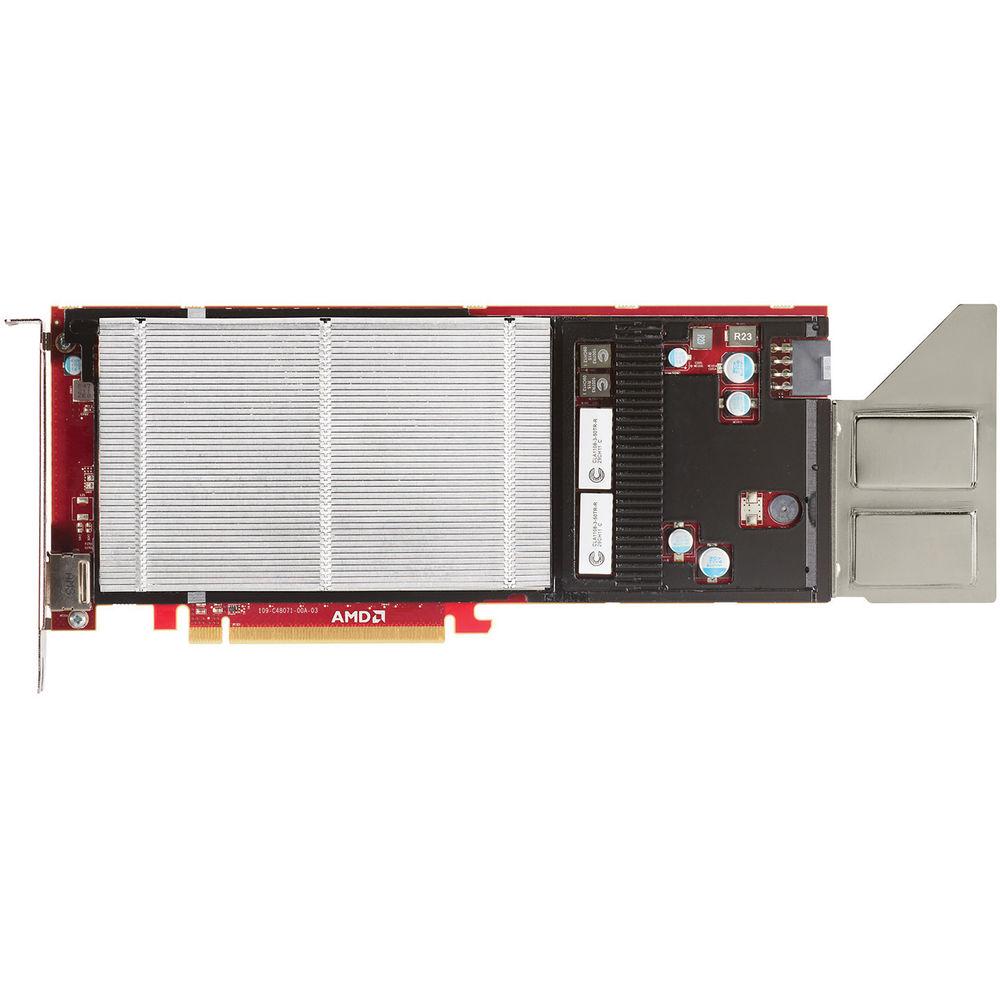

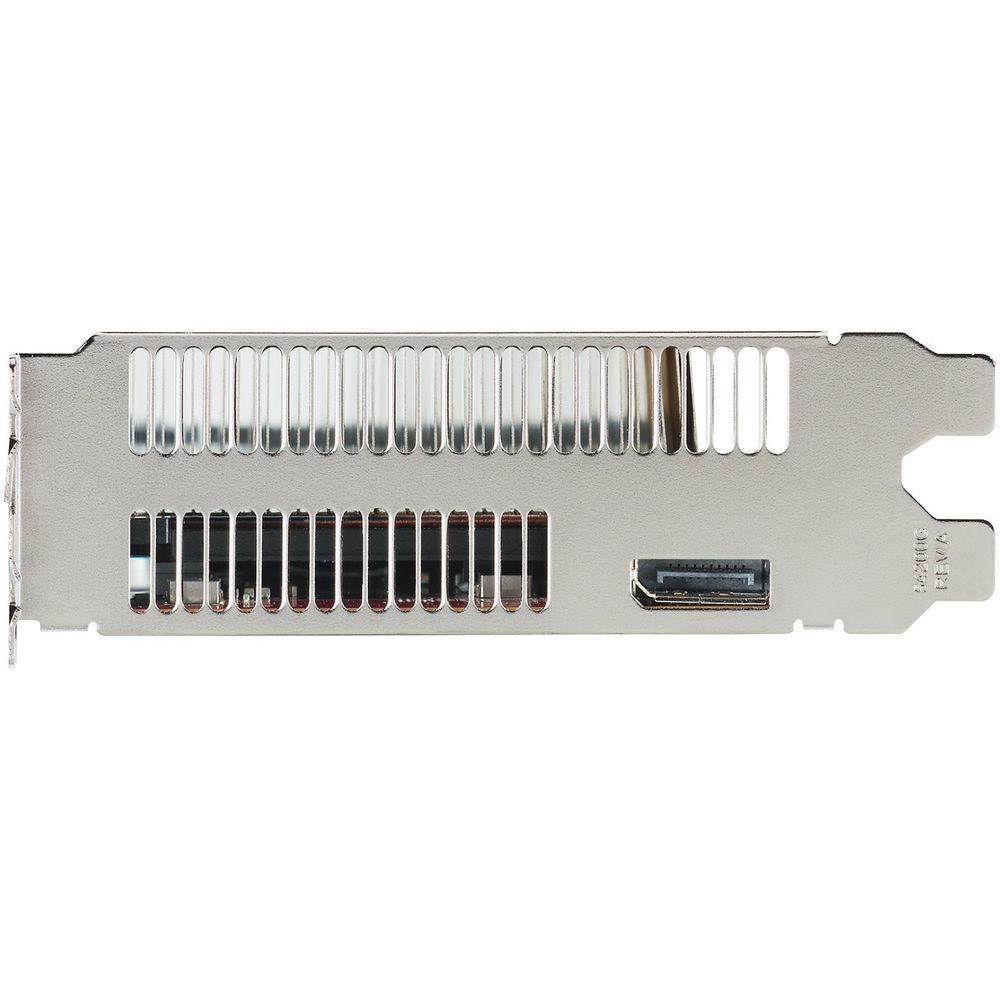

Designed for servers, the AMD FirePro S9050 Server Graphics Card features a passive cooling solution. Internally, 3.23 TFLOPS of peak single precision performance can be leveraged by CAD, office applications, or other GPU dependent applications using APIs such as DirectX, OpenGL, and OpenCL. A single DisplayPort output is offered for debugging if necessary, though this card is not primarily purposed towards driving displays. The passive cooling solution used by the S9050 has no moving parts for improving reliability while reducing power consumption and noise. However, the design is dependent on the server's internal airflow (minimum of 20 CFM) to cool the GPU.
    Multiuser GPU Technology
  • Enables consistent, predictable, and secure performance from your virtualized workstation with a hardware-based virtualized GPU solution, the AMD Multiuser GPU. This virtualization solution from AMD can enable users to have workstation-class experiences with full ISV certifications, and workstation-class performance.
    Error Correcting Code (ECC) Memory
  • Helps ensure the accuracy of your computations by correcting any single or double bit error as a result of naturally occurring background radiation.
    PowerTune
  • Power management technology which provides direct control over GPU power usage. PowerTune dynamically adjusts clock speed to operate within the power parameters set by the user.
    ZeroCore Power Technology
  • Shuts down the GPU when not in use to greatly reduce power usage while the card is idle.
In the Box AMD FirePro S9050 Server Graphics Card
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the AMD FirePro S9050 Server Graphics Card in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    AMD 100-505985 Specs

    GPU AMD FirePro S9050:
    Stream Processors: 1792
    Node Size: 28 nm
    Architecture: Graphics Core Next (GCN)
    Interface PCI Express 3.0 x16
    Memory Interface Width: 384-bit
    Interface: GDDR5
    Bandwidth: 264 GB/s
    Configuration: 12 GB
    Floating Point Single Precision Performance: 3.23 TFLOPS
    Double Precision Performance: 806 GFLOPS
    Outputs 1 x DisplayPort
    Maximum Resolution Not specified by manufacturer
    APIs OpenGL: 4.3
    OpenCL: 1.2
    DirectX: 11.1
    Form Factor Width: Double-slot
    Length: Not specified by manufacturer
    Full-height, full-length
    Power Consumption 225 W max
    Compliance FCC, CE, C-Tick, BSMI, KCC, UL, VCCI, RoHS, WEEE
    System Requirements Airflow: 20 CFM
    Power Supply: Not specified by manufacturer
    PCI Slots: 1 x PCI Express 3.0 x16
    RAM: 2 GB
    OS: Microsoft Windows XP/Vista/7/8, Microsoft Server 2008 R2 SP1/2012 R2/, Linux (32 or 64-bit)
