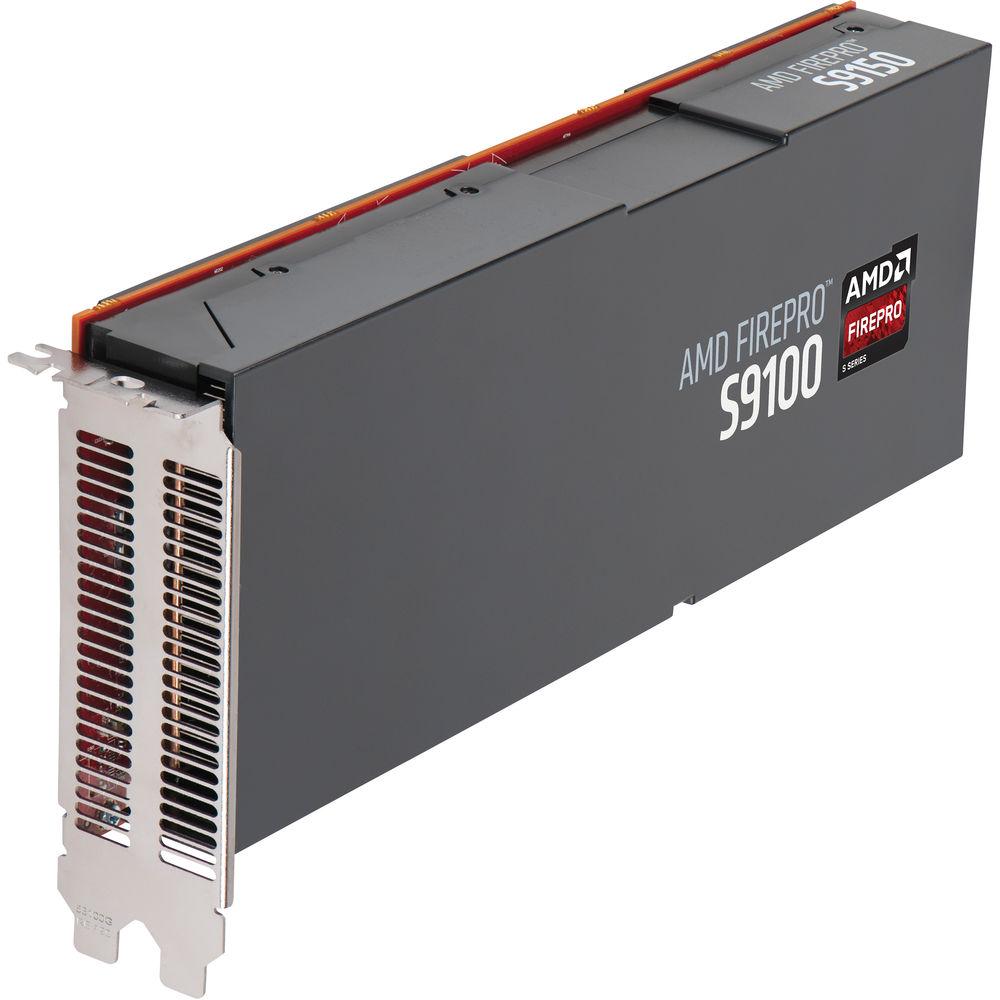

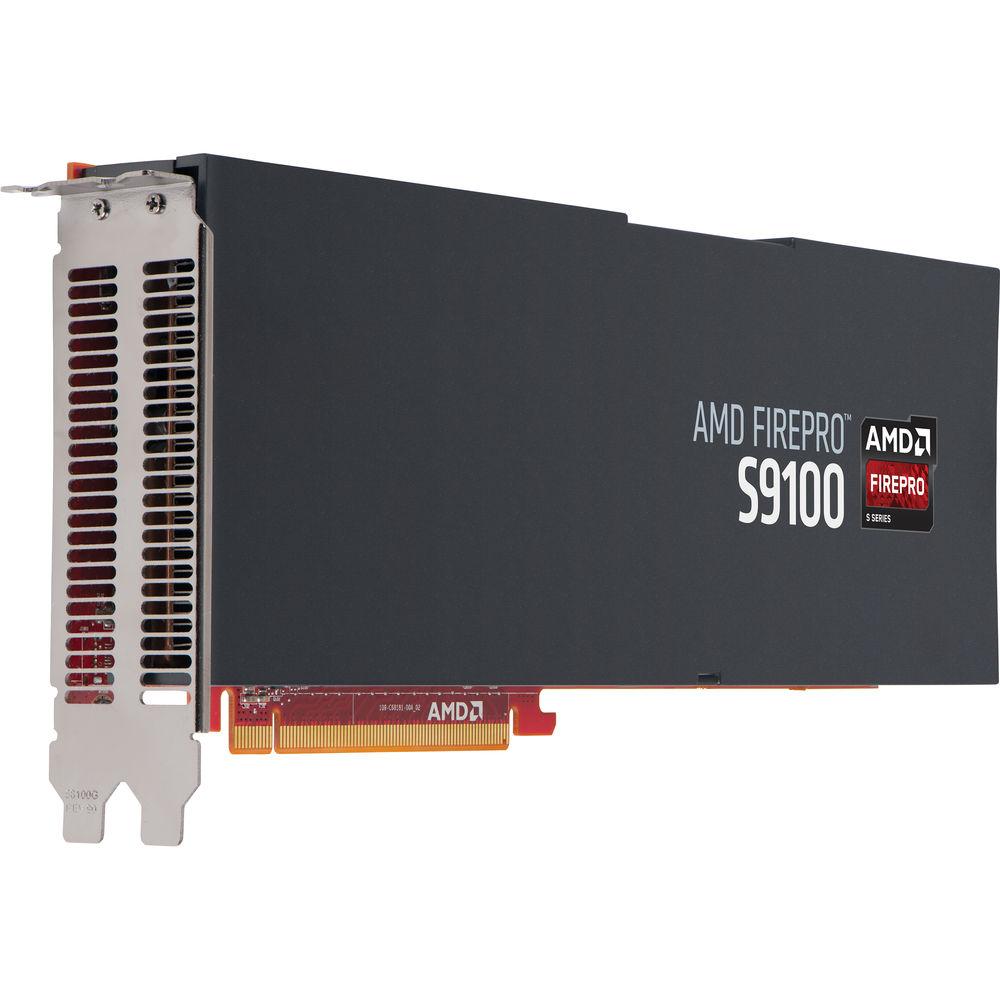

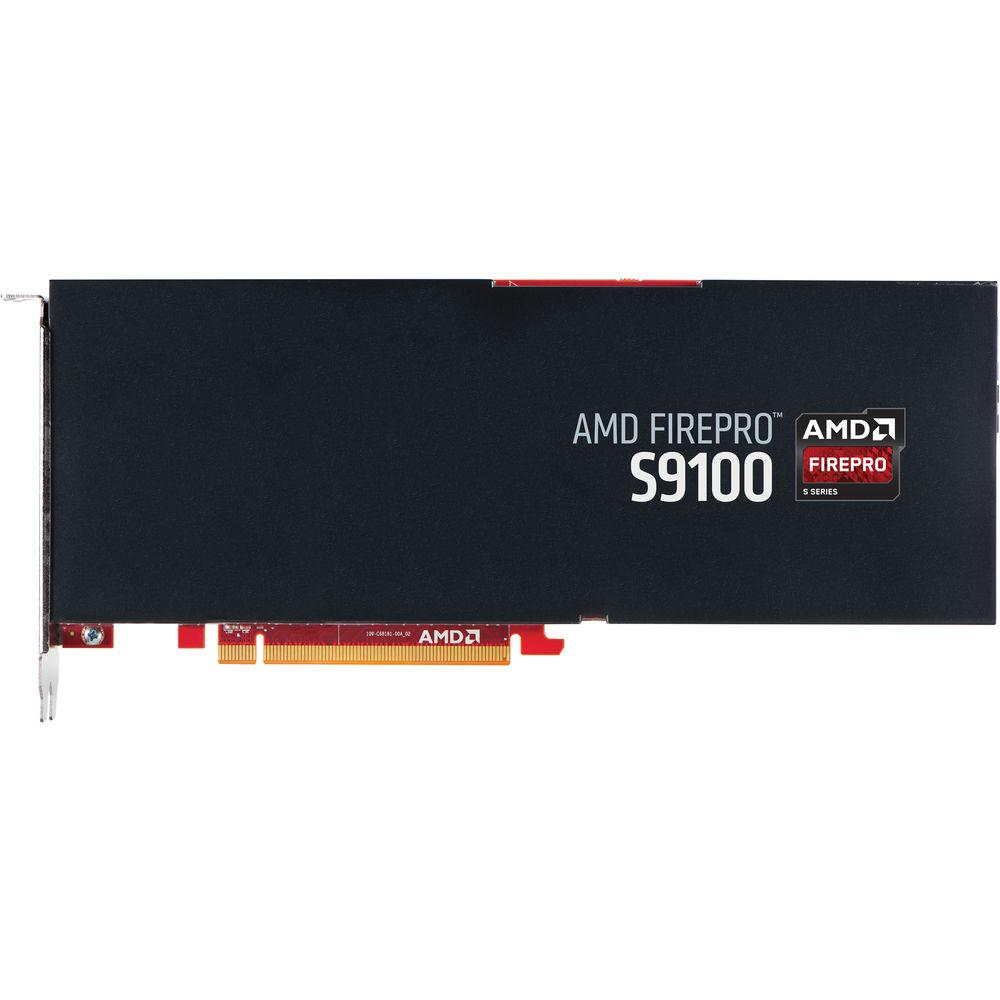

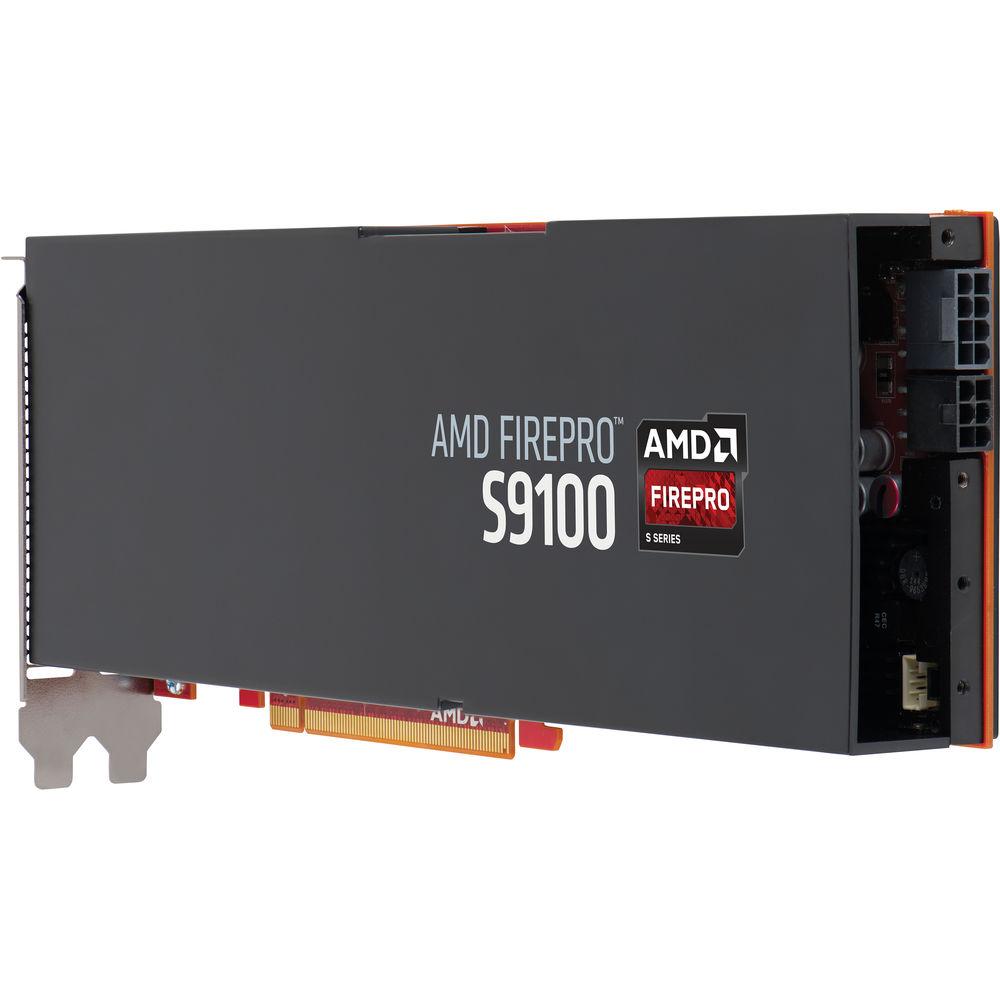

User Manual for AMD FirePro S9100 Server Graphics Card Click to enlarge the picture
Contents of the user manual for the AMD FirePro S9100 Server Graphics Card
- Product category: Server Graphic Cards AMD
- Brand: AMD
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AMD Server Graphic Cards
 |
User manual for the AMD FirePro S9100 Server Graphics Card contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AMD product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AMD user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AMD product will considerably shorten its lifespan!
|
Product description Featuring 2560 stream processors, 12GB of GDDR5 VRAM and 4.22 TFLOPS peak single-precision processing power, the AMD FirePro S9100 Server Graphics Card can accelerate workflows that involve intensive parallel processing. Projects that can take advantage of the parallel processing include computational fluid dynamics and structural mechanics, numeral analytics, and molecular dynamics. This card uses a passive heatsink for silent and reliable cooling and requires a minimum of 15 CFM of airflow in order to keep a stable operating temperature. - 28nm GCN (Graphic Core Next) Architecture
- The 28nm GCN Architecture with more efficient process technology puts more transistors in less space, enabling an increase in processing power and graphics performance.
- Half Rate Double Precision
- AMD FirePro server GPUs offer 1/2 double-precision performance allowing them to complete compute-intensive tasks faster than non-optimized cards.
- AMD STREAM Technology
- Powers the ecosystem that enables AMD FirePro S-series server cards to be used for compute-intensive workflows leveraging the massively parallel processing power of AMD GPUs, and accelerate many applications beyond just graphics.
- PowerTune
- This state of the art power management technology provides direct control over GPU power usage. Applications enjoy performance with dynamic clock optimization, while minimizing workstation energy usage.
- Error Correcting Code (ECC) Memory
- ECC memory maintains a memory system effectively free from single-bit errors: the data read from each word is always the same as the data that had been written to it, even if a single bit actually stored, or more in some cases, has been flipped to the wrong state.
- Passive Cooling
- Cooled solely by internal server airflow, FirePro GPUs using this approach can effectively reduce complexity and maximize reliability for organizations requiring server-based visual computing.
In the Box AMD FirePro S9100 Server Graphics Card Extender Bracket Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AMD FirePro S9100 Server Graphics Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAMD 100-505984 Specs | GPU | 2560 stream processors
28 nm
Graphics Core Next (GCN) architecture | | Interface | PCI Express 3.0 x16 | | Memory | 12 GB GDDR5 VRAM
512-bit memory bus
320 GB/s bandwidth | | Floating Point | 4.22 TFLOPS single precision performance
2.11 TFLOPS double precision performance | | APIs | OpenGL 4.4
OpenCL 2.0
DirectX 12 | | Cooling | Passive heatsink | | Form Factor | Full-height, full-length, dual-slot width
Dimensions: 4.4 x 10" / 11 x 25 cm | | Power Consumption | 225 W | | Regulation | FCC, CE, C-Tick, BSMI, KCC, UL,VCCI, RoHS and WEEE | | System Requirement | 750 W power supply (Suggestion)
1 x Available PCI-Express X16 slot
2048 MB system memory
1 x 8-pin AUX power connector
Microsoft Windows 8.1, 7 (32/64-bit), Server 2008 R2 SP1, 2012 R2 or Linux (32/64-bit)
15 CFM airflow for cooling |
