User Manual for AMD FirePro V7750 Graphics Card Click to enlarge the picture
Contents of the user manual for the AMD FirePro V7750 Graphics Card
- Product category: Graphic Display Cards AMD
- Brand: AMD
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AMD Graphic Display Cards
|
User manual for the AMD FirePro V7750 Graphics Card contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AMD product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AMD user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AMD product will considerably shorten its lifespan!
|

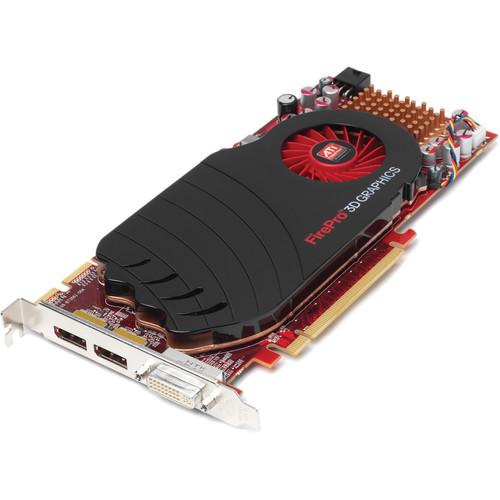

Product description The AMD FirePro V7750 Graphics Card is a computer graphics card with Windows software for computers with PCI Express expansion slots. It's suitable for workstation graphics applications such as digital content creation, CAD, video editing, or modeling that require or benefit from having a dedicated graphics card. Not only can a dedicated graphics card drive displays, it can also provide parallel processing for supported GPU-aware applications, shifting much of the workload off your computer's CPU for a more efficient workflow.
The GPU features 320 stream processors that not only act as shaders for rendering display graphics, but also allow applications that support parallel processing to perform dozens of simple computations simultaneously. To help move data to and from the GPU as efficiently as possible, the card features 1GB of GDDR3 RAM over a 128-bit memory interface.
The card can be connected to a variety of displays, including computer monitors, HDTV's, and projectors. It features two DisplayPort and one DVI-I (digital and analog) outputs. These outputs feature HDCP support so that you can view copy-protected content such as video from Blu-ray DVDs. - Popular API Support
- Supports DirectX 10.1, OpenGL 3.2, and other APIs to allow GPU-aware applications to benefit from the acceleration provided by a dedicated graphics card, taking much of the workload off your computer's CPU
- 30-Bit Display Pipeline
- Capable of generating 10 bits per RGB channel for a total of 30 bits per pixel. 30-bit produces 4x more colors than 24-bit products to give you more accurate color reproduction for mission critical graphics applications
- Unified Video Decoder 2 (UVD 2)
- Offloads much of the processing involved in decoding MPEG-4, H.264, MVC, MPEG2, and other video codecs from the CPU to the graphics card to provide better video quality than when relying on the CPU alone
- Anti-Aliasing Filters
- Applies anti-aliasing and enhancement filters as video is rendered to produce smoother-looking graphics. These include:
- Multi-sample anti-aliasing: 2, 4, or 8 samples per pixel
- Up to 24x Custom Filter Anti-Aliasing (CFAA) for improved quality
- Adaptive super-sampling and multi-sampling
- Unified Superscalar Shader Architecture
- The card distributes graphics rendering across 320 stream processors. Features of the shader architecture include:
- Dynamic load balancing and resource allocation for vertex, geometry, and pixel shaders
- Common instruction set and texture unit access supported for all types of shaders
- Dedicated branch execution units and texture address processors
In the Box AMD FirePro V7750 Graphics Card Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AMD FirePro V7750 Graphics Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAMD V7750 Specs | GPU | FirePro V7750 | | Stream Processors | 320 | | Memory | 1 GB | | Memory Type | GDDR3 | | Memory Interface | 128-bit | | Display Pipeline | 30-bit - 10-bit per RGB channel | | Outputs | 2 x DisplayPort
1 x DVI-I dual link | | PCI Bus | PCI-E 2.0 x16 | | System Requirements | Windows: Vista, XP - 32 or 64-bit versions
Linux: 32 or 64-bit kernels - support varies depending on distribution
512 MB or more system RAM
1 x Free PCI-E x16 slot
350 W or better power supply | | Form Factor | Single slot: full length, full height | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer |
