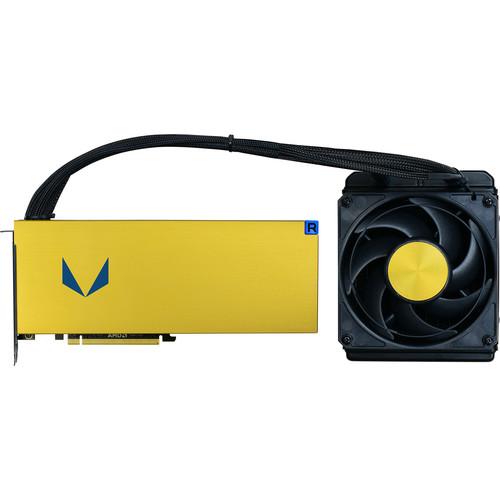

User Manual for AMD Radeon Pro Vega Liquid-Cooled Frontier Edition Graphics Card Click to enlarge the picture
Contents of the user manual for the AMD Radeon Pro Vega Liquid-Cooled Frontier
- Product category: Graphic Display Cards AMD
- Brand: AMD
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AMD Graphic Display Cards
|
User manual for the AMD Radeon Pro Vega Liquid-Cooled Frontier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AMD product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AMD user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AMD product will considerably shorten its lifespan!
|
Product description Heralding the Vega (GCN 5.0) architecture, the AMD Radeon Pro Vega Frontier Edition Graphics Card combines advancements in memory application and GPU-die construction. Utilizing 16GB of HBM2 VRAM, the Radeon Pro Vega provides a 4096-bit wide memory pipeline for a 483 GB/s memory bandwidth. The GPU itself is no slouch either, a peak single-precision computation rate of 13.1 TFLOPS helps bolster the Radeon Pro Vega's ability to accomplish advanced calculations or leverage APIs such as OpenCL, OpenGL, and Vulkan. Using these API's, the GPU can accelerate graphics rendering and computationally intensive video effects. Applications for this card include, but are not limited to, scientific research in artificial intelligence, development and programming that doesn't require specific application certification, and game, CGI, as well as VR design. The output panel of this card contains three DisplayPort 1.4 outputs and a single HDMI 2.0 output. With the processing power available inside the Radeon Pro Vega card, 5K (5120 x 2880) displays can be driven at up to 60 Hz from the DisplayPort outputs. The HDMI 2.0 output can connect to monitors or television displays at resolutions up to DCI 4K (4096 x 2160). At DCI and UHD 4K resolutions, four monitors can be driven for expanding your virtual workspace without requiring splitters or MST hubs. To keep this powerful card cool, AMD implemented a closed-loop liquid cooler. This type of cooler works more efficiently than a traditional blower-style cooler, as heat from the GPU is absorbed by a contact plate and circulated from the block, via the pre-installed water tubing, up to a separate 120mm radiator unit for dissipation away from the board itself. This design keeps the card quiet even under intense compute or game sequences. The shroud on the card itself is no larger than the blower-style iteration, allowing for similar installation scenarios, provided there is sufficient space to mount the radiator. - AMD LiquidVR Technology
- Reduced motion-to-photon latency enhances realism and VR presence. With the LiquidVR SDK content creators have powerful development tools to generate VR content.
- 10-Bit Color
- Native support for 10-bits per color channel assists color-critical tasks such as photo editing and video color-correction by providing a larger visible gamut. 10-bit images require a monitor that supports a 10-bit input.
- FreeSync Technology Support
- AMD's FreeSync Technology allows for communication between the graphics card and a monitor with FreeSync support. Having this communication enables the monitor to dynamically adjust its refresh rate to the frame rate being output by the graphics card, thereby greatly reducing tearing, stuttering, and other artifacts.
- TrueAudio Technology
- AMD TrueAudio Technology allocates GPU processing to audio, allowing for greater overall audio processing for advanced audio sequences, especially in games.
- Bezel Compensation
- Compensate for bezel interference by stretching the image so it displays evenly across multiple displays, even monitors with thick bezels.
- Partially Resident Textures
- Partially Resident Textures allow for graphics memory to behave as a hardware-managed cache. This way only the necessary data to create a scene can be streamed on demand straight from GPU memory, increasing graphics rendering efficiency, especially with large texture libraries.
- Encoding/Decoding Hardware
- With specially programmed hardware, the GPU can encode 4K and decode 8K H.265 video files for decreased render times and smoother playback of highly compressed video.
- PowerTune
- Power management technology which provides direct control over GPU power usage. PowerTune dynamically adjusts clock speed to operate within the power parameters set by the user.
- ZeroCore Power Technology
- Shuts down the GPU when not in use to greatly reduce power usage while the card is idle.
UPC: 727419416481 In the Box AMD Radeon Pro Vega Liquid-Cooled Frontier Edition Graphics Card DisplayPort to DVI Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AMD Radeon Pro Vega Liquid-Cooled Frontier Edition Graphics Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAMD Vega Specs | GPU | AMD Radeon Pro Vega
Stream Processors: 4096
Node Size: 14 nm
Architecture: Vega (Graphics Core Next (GCN) 5th generation) | | Interface | PCI Express 3.0 x16 | | Memory | Interface Width: 2048-bit
Interface: HBM2
Bandwidth: 483.8 GB/s
Configuration: 16 GB | | Floating Point | Half Precision Performance: 26.2 TFLOPS
Single Precision Performance: 13.1 TFLOPS
Double Precision Performance: 819 GFLOPS | | Outputs | 3 x DisplayPort
1 x HDMI | | Maximum Resolution | DisplayPort: 5120 x 2880
HDMI: 4096 x 2160 | | APIs | OpenGL: 4.5
OpenCL: 2.0
Vulkan
DirectX: 12
Shader Model: 5.0 | | Form Factor | Width: Double-slot
Length: 10.5" / 267 mm
Full-height, Full-length | | Power Consumption | 375 W (maximum) | | Compliance | FCC, CE, C-Tick, BSMI, KCC, UL, VCCI, RoHS, WEEE | | System Requirements | Power Supply: >850 W recommended
Power Connectors: 2 x 8-pin PCI
PCI Slots: 1 x PCI Express 3.0 x16
RAM: Not specified
OS: Microsoft Windows 7/10, Linux | | | | Package Weight | 10.0 lb | | Box Dimensions (LxWxH) | 18.0 x 11.6 x 7.4" |
