User Manual for AMD Radeon Pro WX 2100 Graphics Card Click to enlarge the picture
Contents of the user manual for the AMD Radeon Pro WX 2100 Graphics
- Product category: Graphic Display Cards AMD
- Brand: AMD
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AMD Graphic Display Cards
 |
User manual for the AMD Radeon Pro WX 2100 Graphics contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AMD product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AMD user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AMD product will considerably shorten its lifespan!
|

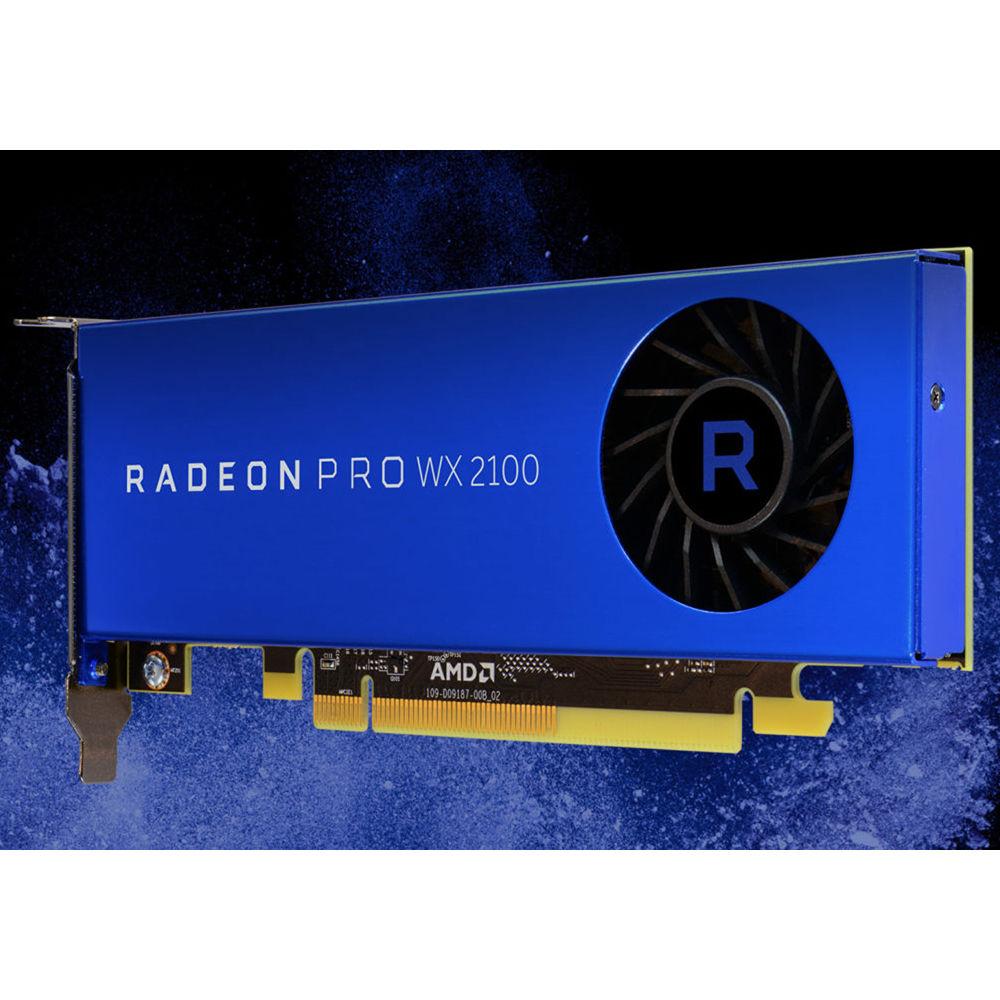

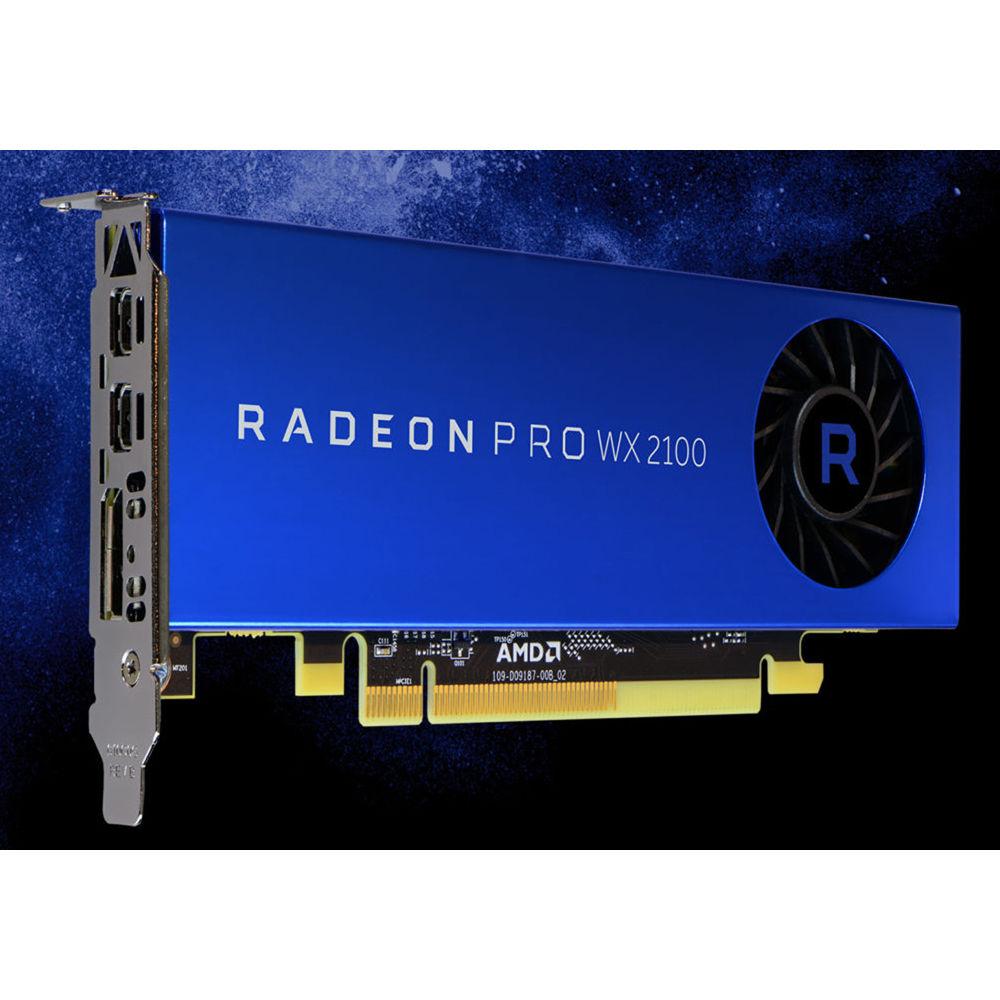

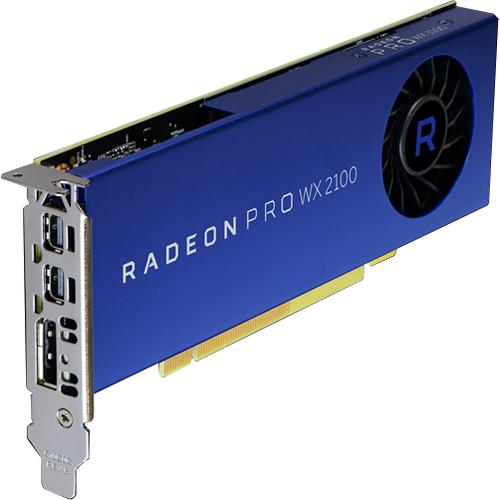

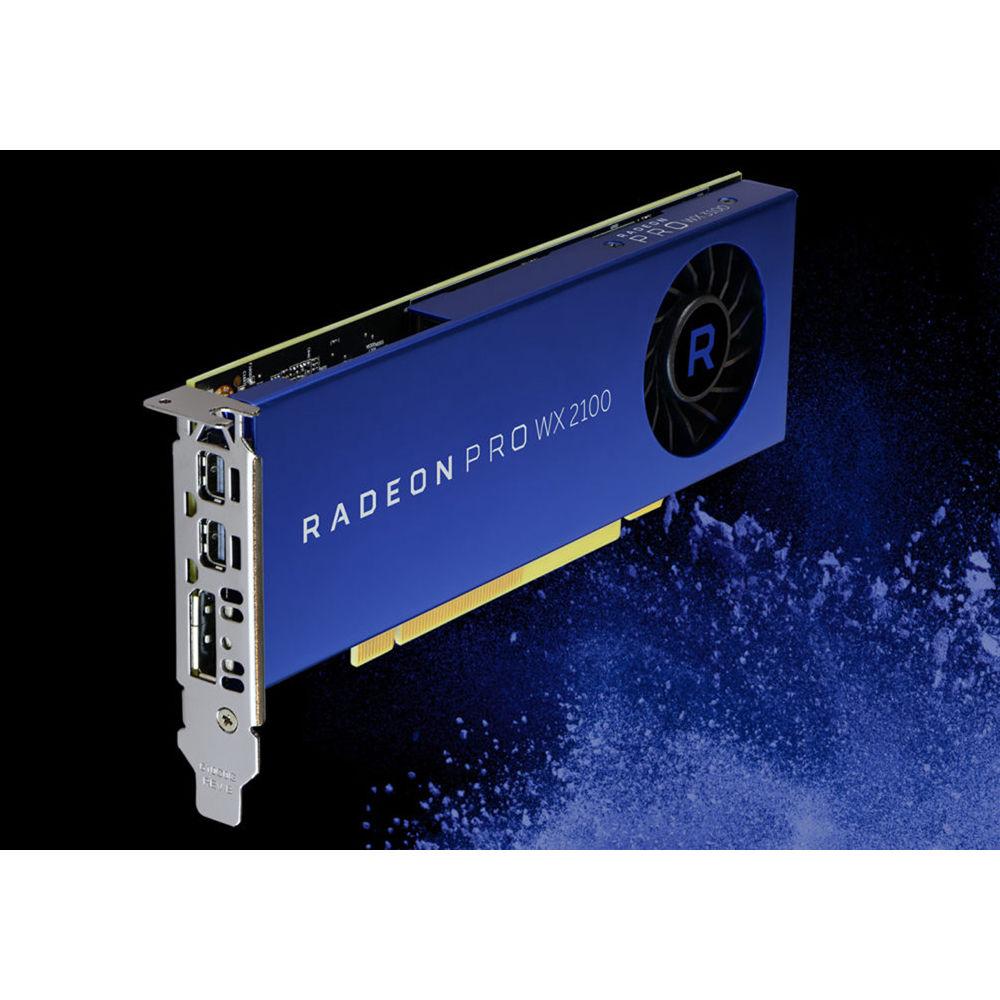

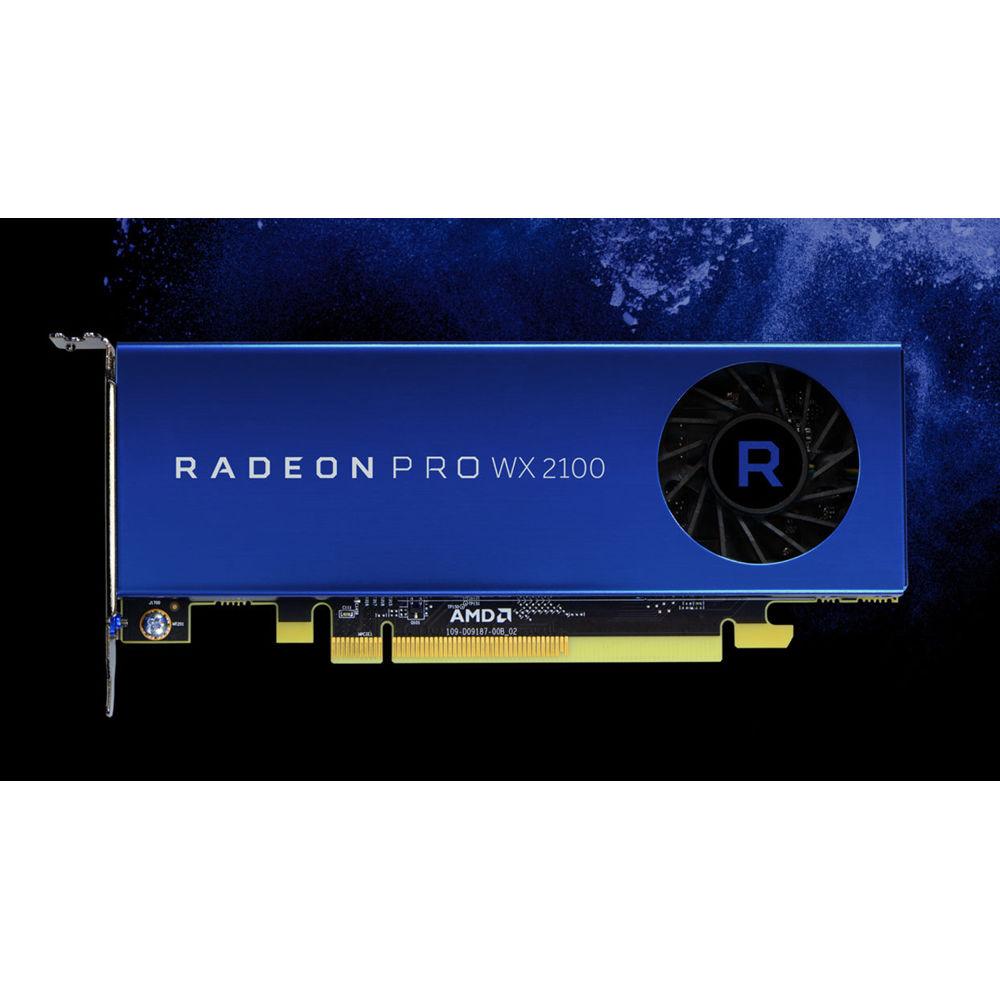

Product description Power efficient and compact, the AMD Radeon Pro WX 2100 is a low-profile professional workstation graphics card that features 512 stream processors coupled to 2GB of GDDR5 vRAM with a 48 GB/s memory interface for 1.25 TFLOPS of single-precision computation performance, all packed inside a half-height, half-length form factor. This speed coupled with the small size ensures that smaller workstations can take advantage of APIs such as OpenCL, OpenGL, and Vulkan. Using the included full-height bracket, this card can fit into standard workstation form-factor PCs as well. The output panel of this card contains two Mini DisplayPort outputs and a single full-sized DisplayPort output. With the included Mini DisplayPort to DVI adapter, legacy hardware is also supported. With the processing power available inside the WX 2100 card, a single 5K (5120x2880) display, or two DCI or UHD 4K displays can be driven without requiring secondary cards or MST hubs. To keep this card cool, AMD implemented a blower-style cooler. By using a radial fan, this system forces air over the components and exhausts it out through the front of the card. This compact cooling solution is ideal for configurations involving tight spacing between components, crucial in small-form-factor enclosures. - AMD LiquidVR Technology
- Reduced motion-to-photon latency enhances realism and VR presence. With the LiquidVR SDK content creators have powerful development tools to generate VR content.
- 10-Bit Color
- Native support for 10-bits per color channel assists color-critical tasks such as photo editing and video color-correction by providing a larger visible gamut. 10-bit images require a monitor that supports a 10-bit input.
- FreeSync Technology Support
- AMD's FreeSync Technology allows for communication between the graphics card and a monitor with FreeSync support. Having this communication enables the monitor to dynamically adjust its refresh rate to the frame rate being output by the graphics card, thereby greatly reducing tearing, stuttering, and other artifacts.
- TrueAudio Technology
- AMD TrueAudio Technology allocates GPU processing to audio, allowing for greater overall audio processing for advanced audio sequences, especially in games.
- Bezel Compensation
- Compensate for bezel interference by stretching the image so it displays evenly across multiple displays, even monitors with thick bezels.
- Partially Resident Textures
- Partially Resident Textures allow for graphics memory to behave as a hardware-managed cache. This way only the necessary data to create a scene can be streamed on demand straight from GPU memory, increasing graphics rendering efficiency, especially with large texture libraries.
- Encoding/Decoding Hardware
- With specially programmed hardware, the GPU can encode 4K and decode 8K H.265 video files for decreased render times and smoother playback of highly compressed video.
- PowerTune
- Power management technology which provides direct control over GPU power usage. PowerTune dynamically adjusts clock speed to operate within the power parameters set by the user.
- ZeroCore Power Technology
- Shuts down the GPU when not in use to greatly reduce power usage while the card is idle.
UPC: 727419416443 In the Box AMD Radeon Pro WX 2100 Graphics Card Mini DisplayPort to DVI Adapter Full-Height Bracket Limited 3-Year Warranty (Extends to 7 Years with Registration) More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the AMD Radeon Pro WX 2100 Graphics Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAMD WX 2100 Specs | GPU | AMD Radeon Pro WX 2100:
Stream Processors: 512
Node Size: 14 nm
Architecture: Polaris (Graphics Core Next (GCN) 4th generation) | | Interface | PCI Express 3.0 x16 | | Memory | Interface Width: 64-bit
Interface: GDDR5
Bandwidth: 48 GB/s
Configuration: 2 GB | | Floating Point | Single Precision Performance: 1.25 TFLOPS
Double Precision Performance: 78 GFLOPS | | Outputs | 2 x Mini DisplayPort
1 x DisplayPort | | Maximum Resolution | DisplayPort: 5120 x 2880 | | APIs | OpenGL: 4.5
OpenCL: 2.0
Vulkan: 1.0
DirectX: 12 | | Form Factor | Width: Single-slot
Length: 6.6" / 168 mm
Half-height, Half-length | | Power Consumption | 35 W (maximum) | | Compliance | Not specified by manufacturer | | System Requirements | Power Supply: >500 W
PCI Slots: 1 x PCI Express 3.0 x16
RAM: Not specified
OS: Not specified | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 9.7 x 6.4 x 2.6" |
