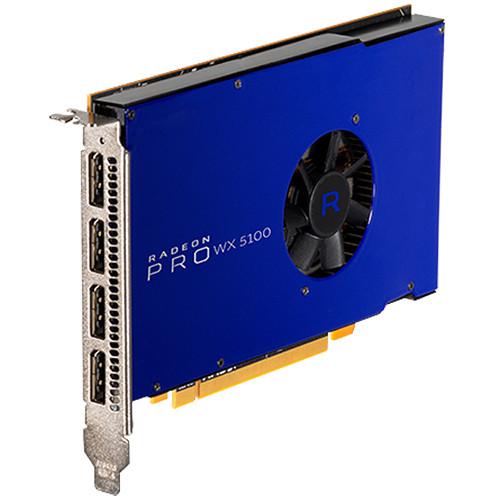

User Manual for AMD Radeon Pro WX 5100 Graphics Card Click to enlarge the picture
Contents of the user manual for the AMD Radeon Pro WX 5100 Graphics
- Product category: Graphic Display Cards AMD
- Brand: AMD
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AMD Graphic Display Cards
|
User manual for the AMD Radeon Pro WX 5100 Graphics contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AMD product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AMD user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AMD product will considerably shorten its lifespan!
|
Product description Consuming only 75 watts of power and enclosed in a single-slot, half-length chassis, AMD's Radeon Pro WX 5100 Graphics Card is a power-efficient GPU for workstations running CAD applications, video editing software, and running game engines such as Unreal. Under the hood, the Radeon Pro WX 5100 features 1792 stream processors linked to 8GB of GDDR5 vRAM with a 160 GB/s interface for 3.9 TFLOPS of single-precision computation performance. APIs such as OpenCL, OpenGL, and Vulkan can take advantage of that performance and accelerate graphics rendering and computationally intensive video effects. The output panel of this card contains four DisplayPort 1.3 outputs. With the processing power available inside the WX 5100 card, up to two dual-cable 5K (5120x2880) displays can be driven simultaneously at up to 60 Hz. At DCI and UHD 4K resolutions, four monitors can be driven for expanding your virtual workspace without requiring splitters or MST hubs. To keep this card cool, AMD implemented a blower-style cooler. By using a radial fan, this system forces air over the components and exhausts it out through the front of the card. This compact cooling solution is ideal for configurations involving tight spacing between components, crucial in smaller enclosures. - 10-Bit Color
- Native support for 10-bits per color channel assists color-critical tasks such as photo editing and video color-correction by providing a larger visible gamut. 10-bit images require a monitor that supports a 10-bit input.
- DirectGMA and SDI Support
- Reduces CPU bandwidth and latency bottlenecks, and optimizes communication between GPUs within a system and third party devices like SDI I/O cards. DirectGMA bypasses any need to traverse the host's main memory, reducing CPU utilization, avoiding redundant bus transfers, and resulting in high throughput, low latency data transfers.
- Encoding/Decoding Hardware
- With specially programmed hardware, the GPU can encode and decode H.265 video files for decreased render times and smoother playback of highly compressed video.
- PowerTune
- Power management technology which provides direct control over GPU power usage. PowerTune dynamically adjusts clock speed to operate within the power parameters set by the user.
- ZeroCore Power Technology
- Shuts down the GPU when not in use to greatly reduce power usage while the card is idle.
UPC: 727419416269 In the Box AMD Radeon Pro WX 5100 Graphics Card 2 x DisplayPort to DVI Adapters Limited 3-Year Warranty (Extends to 7 Years with Registration) More from Manufacturer ybccqfqcwazbbxzqdauvfdxwxwcwyqwb Table of Contents
|
Upload User Manual
Have you got an user manual for the AMD Radeon Pro WX 5100 Graphics Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAMD WX 5100 Specs | | | GPU Model | AMD Radeon Pro WX 5100 | | Stream Processors | 1792 | | Floating Point Performance | Single Precision Performance: 3.89 TFLOPS
Double Precision Performance: 243.00 GFLOPS | | Interface | PCI Express 3.0 x16 | | Supported APIs | DirectX: 12
OpenGL: 4.5
OpenCL: 2
Vulkan: 1 | | | | Memory Configuration | 8 GB | | Memory Interface | GDDR5 | | Memory Interface Width | 256-Bit | | Memory Bandwidth | 160 GB/s | | | | Display Connectors | 4 x DisplayPort 1.4 | | Maximum Digital Resolution | 5120 x 2880 @ 60 Hz | | | | Max Power Consumption | 75 W | | | | Length | 6.8" / 172.72 mm | | Width | Single-Slot | | | | Cooler Type | Blower-Style Fan | | | | Package Weight | 2.05 lb | | Box Dimensions (LxWxH) | 11.7 x 9.6 x 3.2" |
