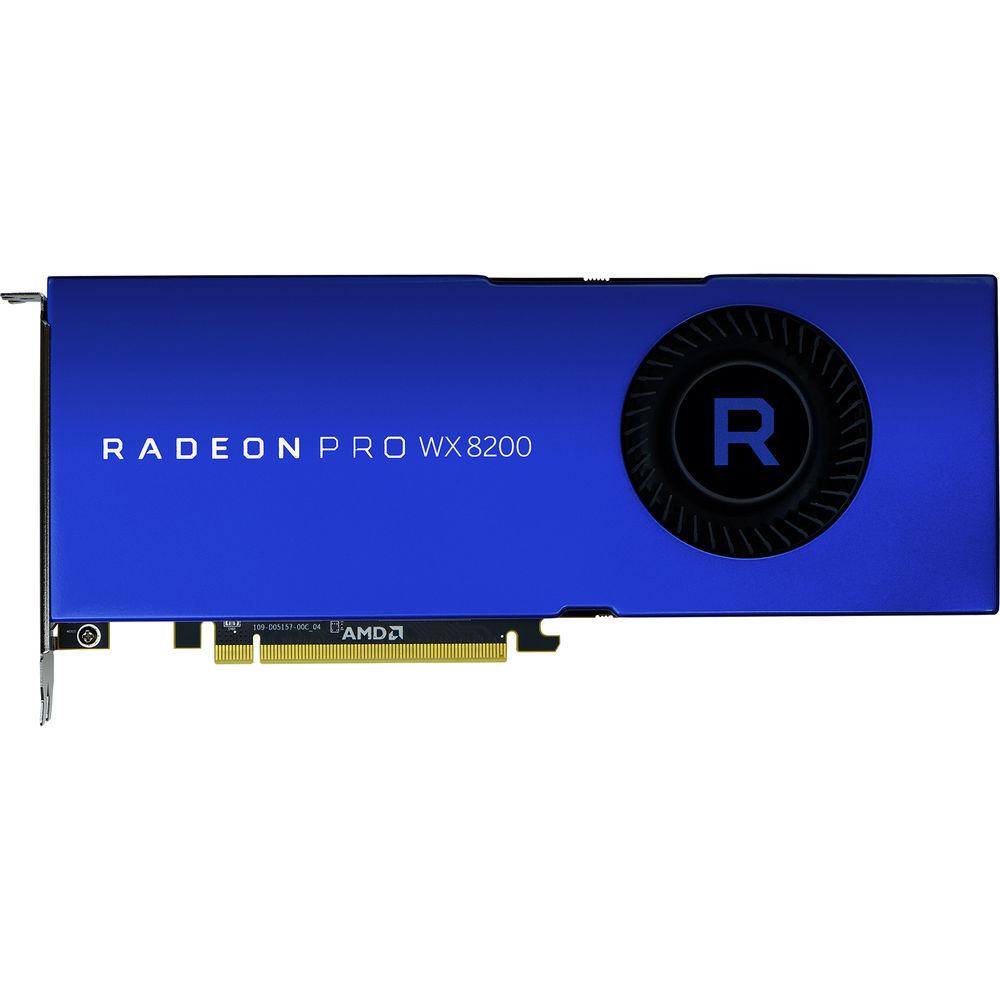

User Manual for AMD Radeon Pro WX 8200 Graphics Card Click to enlarge the picture
Contents of the user manual for the AMD Radeon Pro WX 8200 Graphics
- Product category: Graphic Display Cards AMD
- Brand: AMD
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AMD Graphic Display Cards
 |
User manual for the AMD Radeon Pro WX 8200 Graphics contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AMD product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AMD user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AMD product will considerably shorten its lifespan!
|
Product description - Introducing the AMD Radeon Pro WX 8200 Workstation Graphics

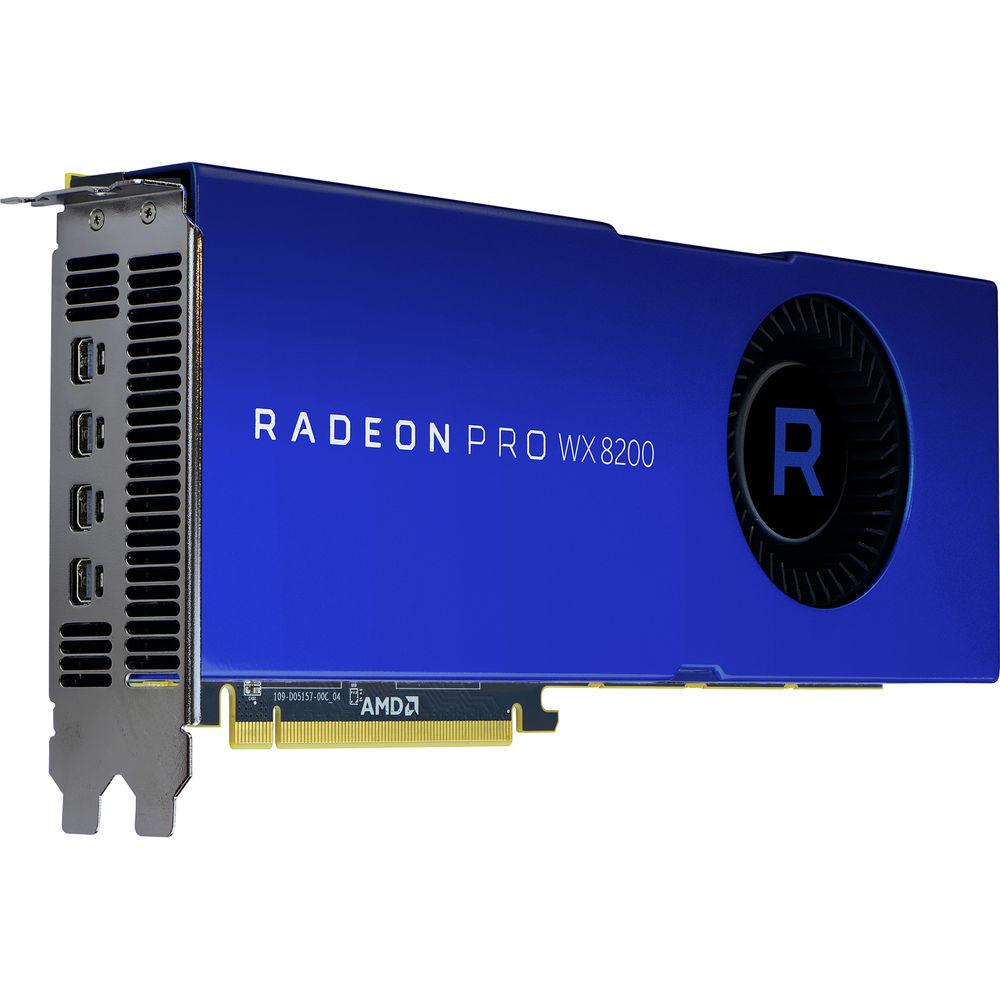

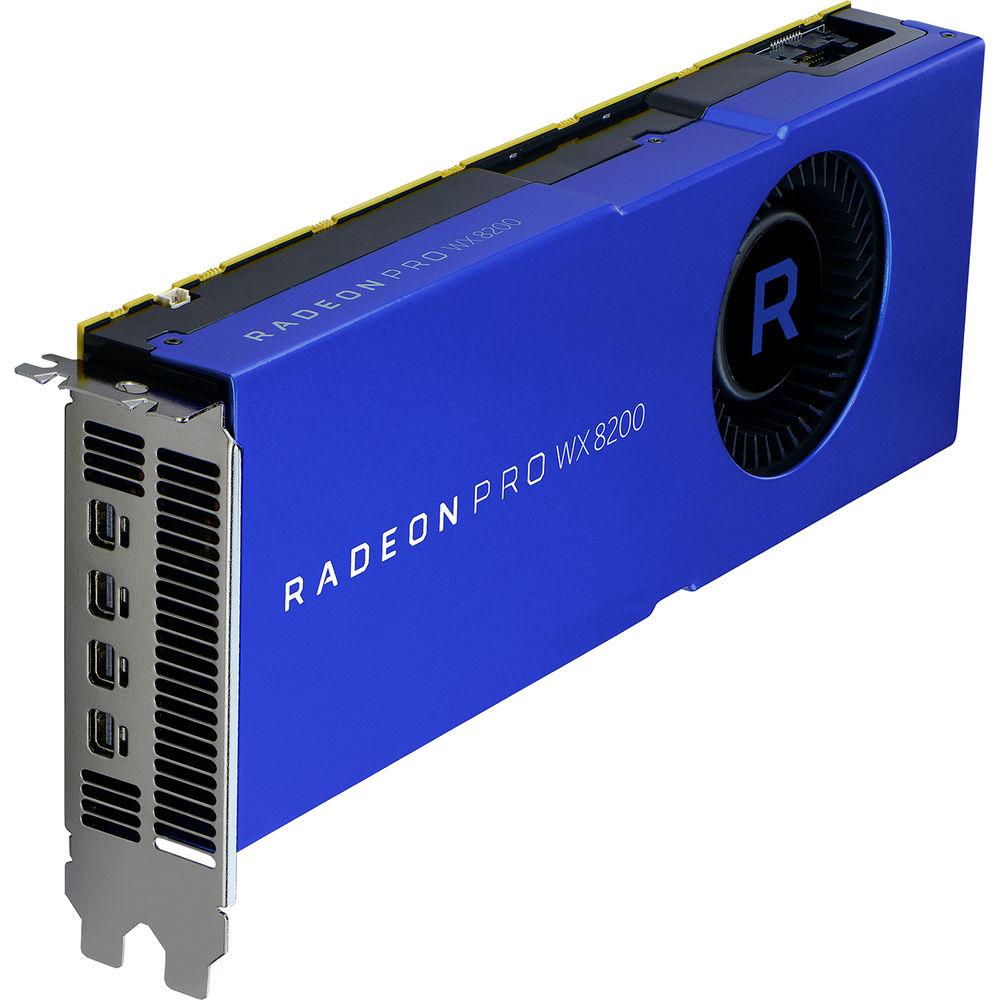

Designed for high-resolution photo-realistic 3D rendering and VR workflows, the AMD Radeon Pro WX 8200 Graphics Card is based on a Vega-architecture GPU featuring 3584 stream processors for 10.75 TFLOPs of single precision performance and 672 GFLOPs of double precision performance. 8GB of HBM2 memory provides 512 GB/s data rates, speeding up number crunching and rendering. The power in this GPU can be harnessed by compatible APIs such as OpenCL, OpenGL, and Vulkan. Using these API's, the GPU can accelerate graphics rendering and computationally intensive video effects. Applications for this card include, but are not limited to, video editing, software development and programming, 3D modeling, and game, CGI, as well as VR design. The output panel of this card contains 4 Mini DisplayPort 1.4 outputs for driving multiple displays or large display walls. 8K (8192 x 4320) displays can be driven at up to 30 Hz from a single DisplayPort output and up to 60 Hz from two chained outputs. Adapters for legacy displays are available separately. To keep this card cool, AMD implemented a blower-style cooler. By using a radial fan, this system forces air over the components and exhausts it out through the front of the card and out of the case. This cooling configuration can be used in crowded workstation environments with multiple GPUs or where space between computer components can be a concern, as hot air is not recirculated back into the case. - Eyefinity Pro Technology
- AMD Eyefinity is a multi-display utility which allows you to arrange multiple displays on your desktop. Having the ability to extend and mirror multiple displays in nearly any confituration can increase productivity, and workflow flexibility.
- Radeon Rays Technology
- Radeon Rays, formerly AMD FireRays) is a high efficiency, high performance GPU accelerated ray tracing software. By tracing the paths of light rays moving through a movie or game scene, Radeon Rays simulates the effects of light rays reflecting and refracting through an environment and interacting with virtual objects. Open source and part of the GPUOpen initiative, Radeon Rays is easy to integrate, and supports all platforms conforming to the OpenCL 1.2 standard, enabling deployment with non-AMD hardware, and Windows, macOS, and Linux operating systems.
- Radeon ProRender Technology
- Built on the Radeon Rays Technology, Radeon ProRender is a powerful physically-based rendering engine that enables creative professionals to produce photorealistic images efficiently. Like Radeon Rays, ProRender utilizes open standards for compatibility with Windows, macOS, and Linux operating systems as well as many 3D content-creation software programs.
- Key Features
-
- High Bandwidth Cache Controller (HBCC)
- Error-Correcting Code (ECC) Memory Support
- 10-bit Color Depth Support
- EDID Emulation Support
- External Genlock/Frame Lock Sync Support
- AMD DirectGMA Support
- Display Output Post Processing (DOPP)
UPC: 727419416382 In the Box AMD Radeon Pro WX 8200 Graphics Card Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AMD Radeon Pro WX 8200 Graphics Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAMD Radeon Pro WX 8200 Specs | | | GPU Model | AMD Radeon Pro WX 8200 | | Stream Processors | 3584 | | Floating Point Performance | Half Precision Performance: 21.5 TFLOPS
Single Precision Performance: 10.75 TFLOPS
Double Precision Performance: 672.00 GFLOPS | | Interface | PCI Express 3.0 x16 | | Supported APIs | OpenGL: 4.5
DirectX: 12
OpenCL: 2

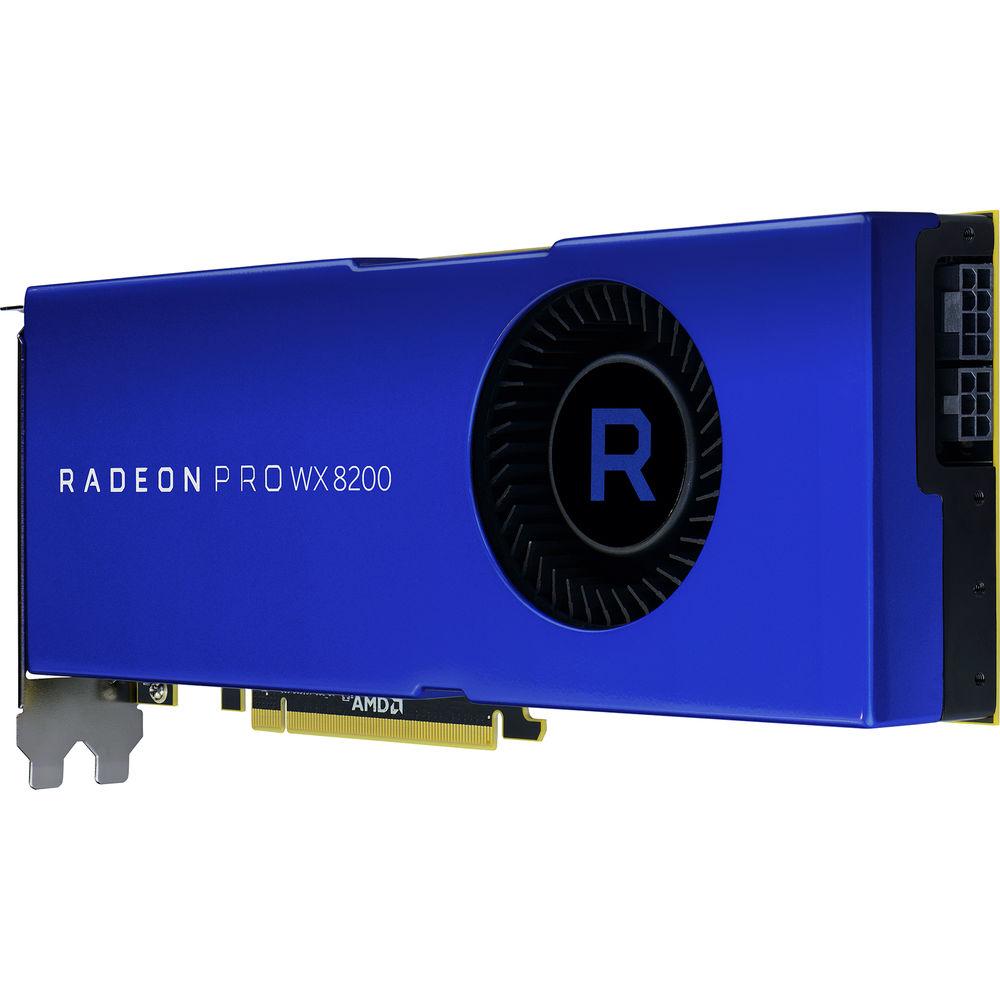

Vulkan: 1.1 | | | | Memory Configuration | 8 GB | | Memory Interface | HBM2 | | Memory Interface Width | 2048-Bit | | Memory Bandwidth | 512 GB/s | | | | Display Connectors | 4 x Mini DisplayPort 1.4 | | Maximum Digital Resolution | 7680 x 4320 @ 60 Hz | | | | Max Power Consumption | 230 W | | PCI Power Connectors | 1 x 6-Pin
1 x 8-Pin | | | | Length | 10.5" / 266.70 mm | | Width | Dual-Slot | | | | Cooler Type | Blower-Style Fan | | | | Package Weight | 3.975 lb | | Box Dimensions (LxWxH) | 14.95 x 9.65 x 4.05" |
