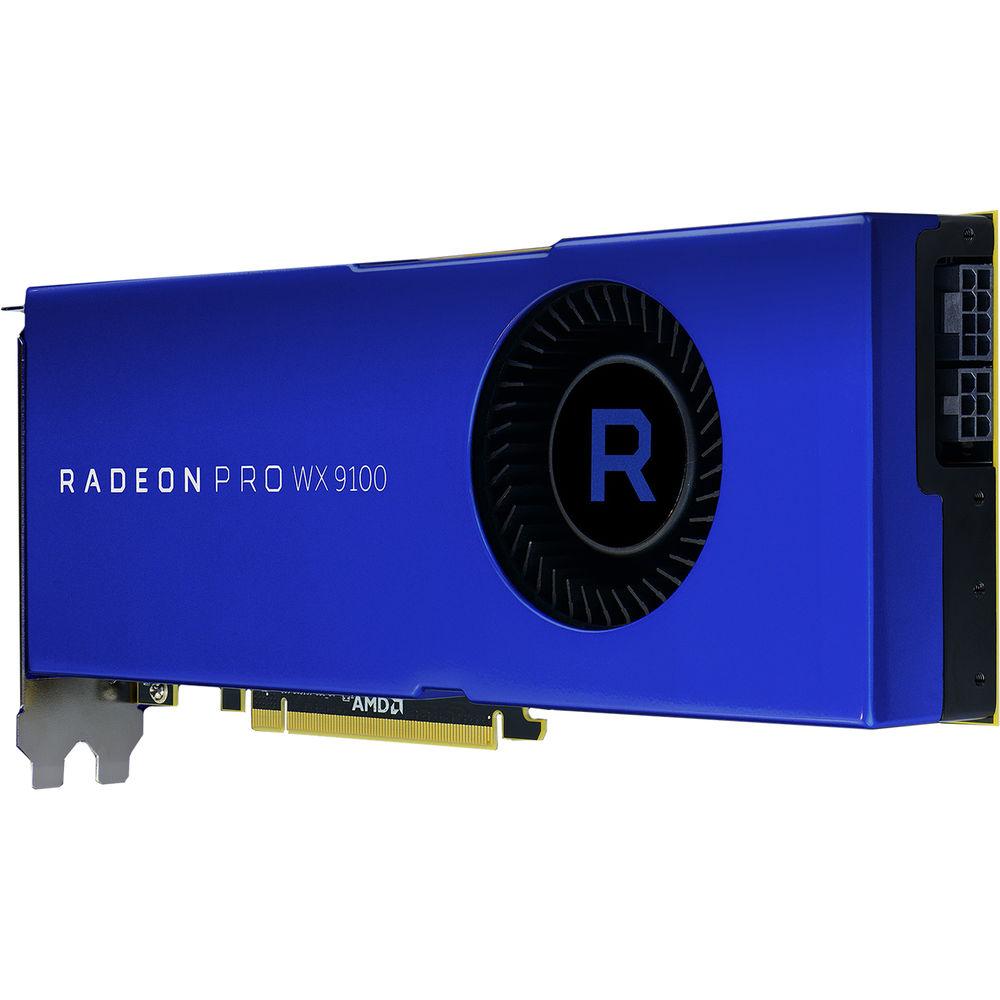

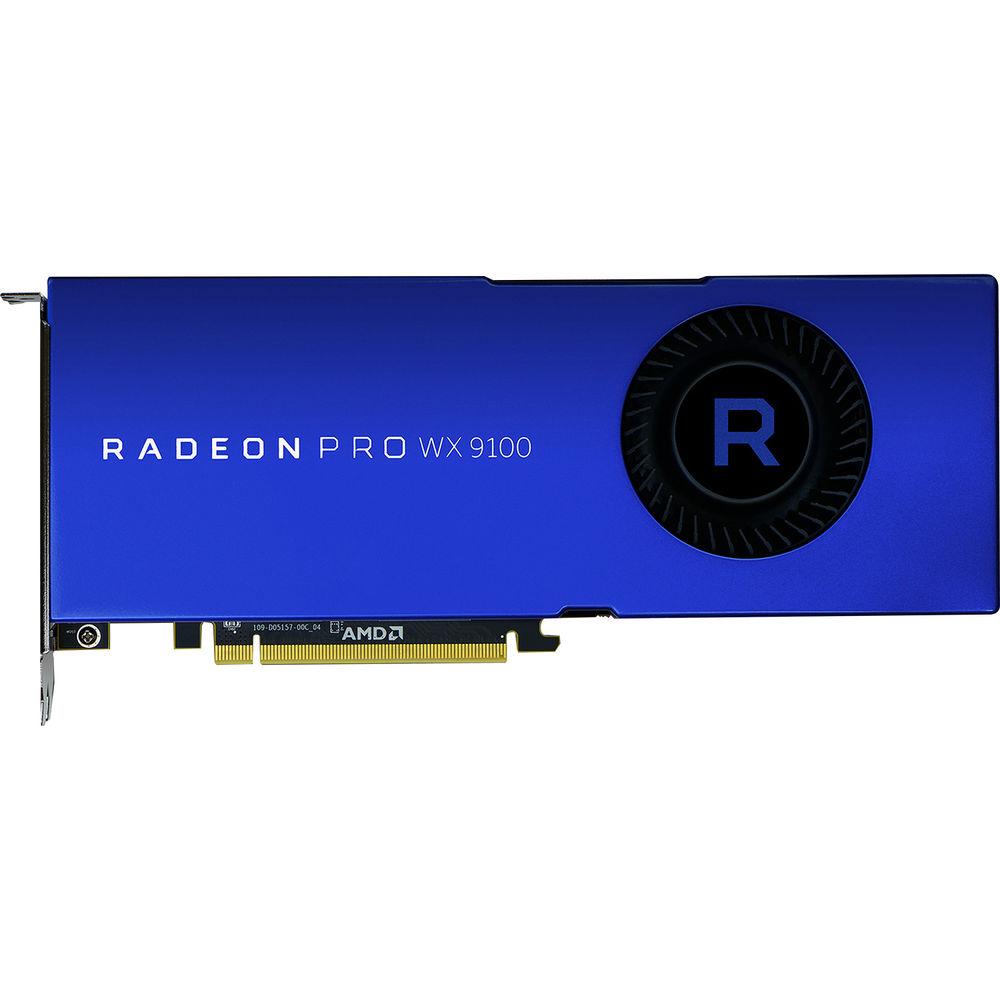

User Manual for AMD Radeon Pro WX 9100 Graphics Card Click to enlarge the picture
Contents of the user manual for the AMD Radeon Pro WX 9100 Graphics
- Product category: Graphic Display Cards AMD
- Brand: AMD
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AMD Graphic Display Cards
 |
User manual for the AMD Radeon Pro WX 9100 Graphics contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AMD product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AMD user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AMD product will considerably shorten its lifespan!
|

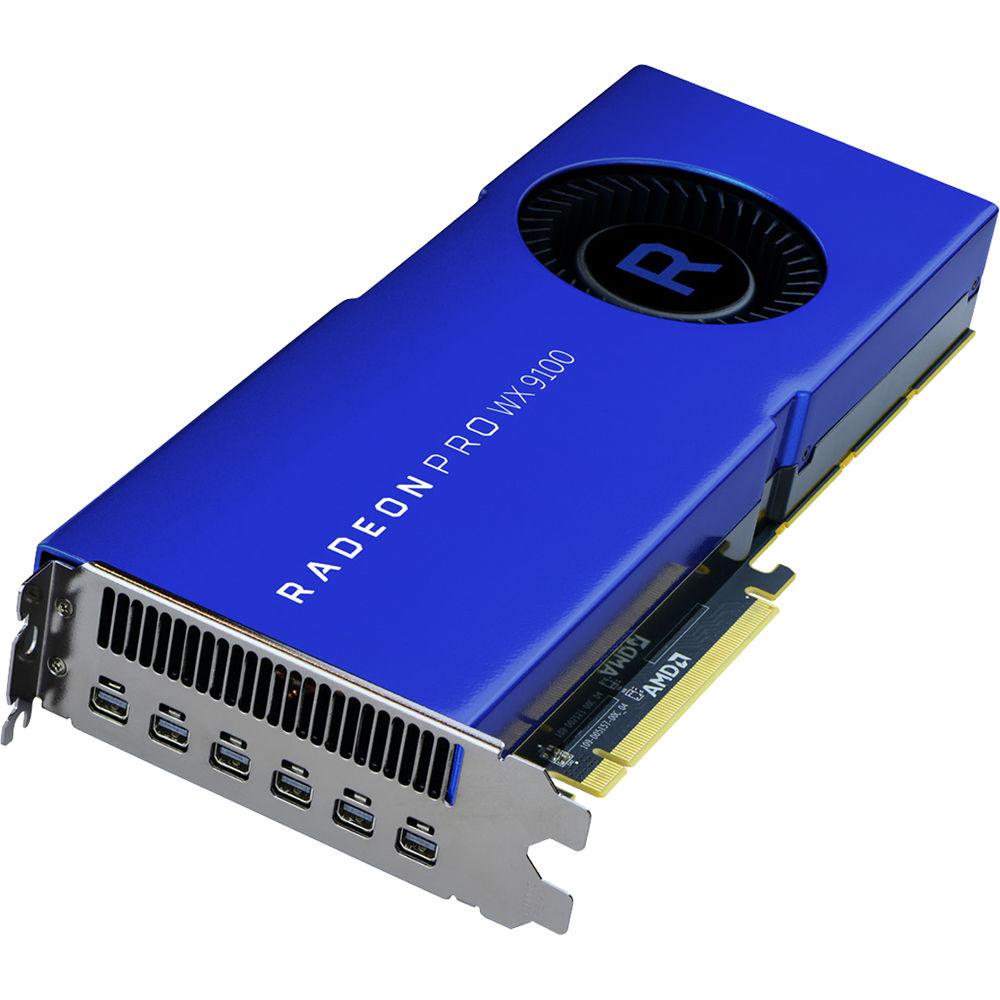

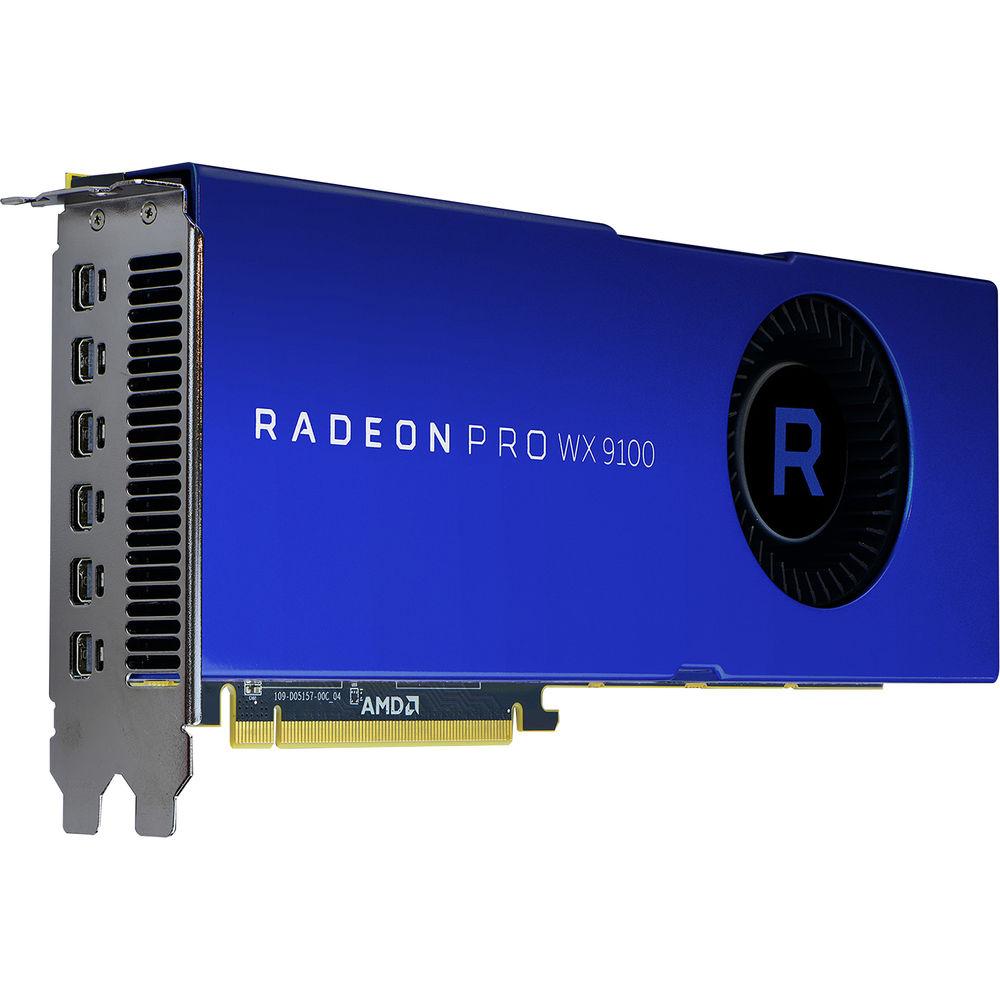

Product description Designed for intense graphic workflows, the AMD Radeon Pro WX 9100 Graphics Card features a 16GB HBM2 frame-buffer with error-correction (ECC) and Vega architecture with 4096 stream processors for a peak single-precision computation rate of 12.29 TFLOPS. This power can be harnessed by compatible APIs such as OpenCL, OpenGL, and Vulkan. Using these API's, the GPU can accelerate graphics rendering and computationally intensive video effects. Applications for this card include, but are not limited to, scientific research in artificial intelligence, development and programming, and game, CGI, as well as VR design. The output panel of this card contains 6 Mini DisplayPort 1.4 outputs for driving multiple displays or large display walls. With the processing power available inside the WX 9100 card, 8K (8192 x 4320) displays can be driven at up to 30 Hz from a single DisplayPort output and up to 60 Hz from two chained outputs. Connect the card to DisplayPort devices using the four included Mini DisplayPort to DisplayPort adapters. An HDMI adapter is included so you can connect to monitors or television displays at resolutions up to DCI 4K (4096 x 2160). For legacy equipment, a DVI adapter is included as well. To keep this card cool, AMD implemented a blower-style cooler. By using a radial fan, this system forces air over the components and exhausts it out through the front of the card and out of the case. This cooling configuration can be used in crowded workstation environments with multiple GPUs or where space between computer components can be a concern, as hot air is not recirculated back into the case. - AMD LiquidVR Technology
- Reduced motion-to-photon latency enhances realism and VR presence. With the LiquidVR SDK content creators have powerful development tools to generate VR content.
- 10-Bit Color
- Native support for 10-bits per color channel assists color-critical tasks such as photo editing and video color-correction by providing a larger visible gamut. 10-bit images require a monitor that supports a 10-bit input.
- FreeSync Technology Support
- AMD's FreeSync Technology allows for communication between the graphics card and a monitor with FreeSync support. Having this communication enables the monitor to dynamically adjust its refresh rate to the frame rate being output by the graphics card, thereby greatly reducing tearing, stuttering, and other artifacts.
- TrueAudio Next Technology
- AMD TrueAudio Technology allocates GPU processing to audio, allowing for greater overall audio processing for advanced audio sequences, great for games and VR experiences.
- Bezel Compensation
- Compensate for bezel interference by stretching the image so it displays evenly across multiple displays, even monitors with thick bezels.
- Partially Resident Textures
- Partially Resident Textures allow for graphics memory to behave as a hardware-managed cache. This way only the necessary data to create a scene can be streamed on demand straight from GPU memory, increasing graphics rendering efficiency, especially with large texture libraries.
- Encoding/Decoding Hardware
- With specially programmed hardware, the GPU can encode 4K and decode 8K H.265 video files for decreased render times and smoother playback of highly compressed video.
- PowerTune
- Power management technology which provides direct control over GPU power usage. PowerTune dynamically adjusts clock speed to operate within the power parameters set by the user.
- ZeroCore Power Technology
- Shuts down the GPU when not in use to greatly reduce power usage while the card is idle.
UPC: 727419416399 In the Box AMD Radeon Pro WX 9100 Graphics Card Mini DisplayPort to DVI Adapter Mini DisplayPort to HDMI Adapter 4 x Mini DisplayPort to DisplayPort Adapters 3D Sync Bracket Limited 3-Year Warranty (extends to 7 years with registration) More from Manufacturer wdasbzsefutqczcux Table of Contents
|
Upload User Manual
Have you got an user manual for the AMD Radeon Pro WX 9100 Graphics Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAMD Radeon Pro WX 9100 Specs | | | GPU Model | AMD Radeon Pro WX 9100 | | Stream Processors | 4096 | | Boost Clock Speed | 1500 MHz | | Floating Point Performance | Single Precision Performance: 12.3 TFLOPS
Half Precision Performance: 24.6 TFLOPS
Double Precision Performance: 768.00 GFLOPS | | Interface | PCI Express 3.0 x16 | | Supported APIs | OpenCL: 2
OpenGL: 4.5
DirectX: 12.1
Vulkan: 1 | | | | Memory Speed | 945 MHz (Effective) | | Memory Configuration | 16 GB | | Memory Interface | HBM2 | | Memory Interface Width | 2048-Bit | | Memory Bandwidth | 484 GB/s | | | | Display Connectors | 6 x Mini DisplayPort 1.4 | | Maximum Digital Resolution | 7680 x 4320 @ 60 Hz | | | | Max Power Consumption | 230 W | | PCI Power Connectors | 1 x 8-Pin
1 x 6-Pin | | | | Length | 12.00" / 304.80 mm | | Width | Dual-Slot | | | | Cooler Type | Blower-Style Fan | | Lighting | None | | | | Package Weight | 5.3 lb | | Box Dimensions (LxWxH) | 15.0 x 9.5 x 4.3" |
