Product description
2nd Gen AMD Ryzen Desktop Processors
2nd Gen AMD Ryzen Desktop Processors - Bring Your Imagination to Life
2nd Gen AMD Ryzen Processors: Built for Enthusiasts, by Enthusiasts
2nd Gen AMD Ryzen Processors: XFR 2 and Precision Boost 2
2nd Gen AMD Ryzen Processors: Unboxing
Cooling Tips for AMD Ryzen Processors
Designed for a high-performance computing experience, the Ryzen 5 2400G 3.6 GHz Quad-Core AM4 Processor from AMD has a base clock speed of 3.6 GHz and a maximum turbo frequency of 3.9 GHz. A member of AMD's 2nd generation of Ryzen processors, this processor features four cores with eight threads in an AM4 socket with 2MB of L2 cache memory and 4MB of L3 cache memory. Having four cores allows the processor to run multiple programs simultaneously without slowing down the system, while the eight threads allow a basic ordered sequence of instructions to be passed through or processed by a single CPU core. This processor also has a TDP of 65W.
Graphically, the Ryzen 5 2400G 3.6 GHz Quad-Core AM4 Processor contains the integrated AMD Radeon Vega 11 chipset with 11 cores. It is also unlocked, meaning it can be overclocked past its maximum turbo frequency. However, this is not recommended, as it will cause the processor to run much hotter. This CPU includes a Wraith Stealth 65W cooler and is protected by a limited 3-year warranty.
General Features
AMD Socket AM4 Platform
AM4 Socket
Ready for AMD Ryzen processors, AMD Socket AM4 represents the company's future-proof platform targeting the fast DDR4 memory, PCIe 3.0, and NVMe technologies available, as well as native 10 Gb/s USB 3.1 Gen 2 support and processor-direct SATA and USB connectivity that is configurable for real-world flexibility.
"Zen" Core Architecture
High Performance and Efficiency
AMD's high-performance x86 Core "Zen" architecture helps delivers >52% improvement in instructions per clock cycle over the previous generation AMD core, without increasing power. 2nd Gen Ryzen processors offer even more performance, improved with "Zen+" architecture, delivering a desktop processor on the advanced 12nm process node.
Compute Efficiency by Design
The "Zen" core is a "clean sheet" x86 processor design that's inspiring a generation of high-performance AMD computing products in 2017 and beyond. "Zen" combines high-throughput and low-power design methodologies to create a balanced and versatile architecture right at home in the desktop, laptop, datacenter, and supercomputer.
And now, for 2nd Gen Ryzen desktop processors, the "Zen" architecture has been updated to "Zen+" - a desktop processor on the advanced 12nm process node - offering increased instructions-per-clock performance.
Performance and Efficiency for Next-Gen Applications
Cloud computing, enterprise productivity, immersive visual experiences, gaming, and data security open up new frontiers - and demand more computing performance with improved energy efficiency. AMD engineers designed the "Zen" core to meet those demands with a high-performance execution engine, large caches, and powerful multi-threading capabilities.
"Zen" Microarchitecture Details
"Zen" cores are designed to efficiently use available micro-architectural resources for improved compute performance. Compared to AMD's previous architecture, three-tier cache system and pre-fetch algorithms enable higher throughput in the cache and execution engines.
AMD SenseMI Technology
AMD SenseMI
AMD's SenseMI technology is a set of learning and adapting features that help the AMD Ryzen processor customize its performance to you and your applications, thanks to true machine intelligence (MI).
Extended Range Frequency 2 (XFR 2)
Many enthusiasts choose premium cooling in their systems, and 2nd Generation AMD Ryzen desktop processors can automatically reward that choice with XFR 2. For example, all 2nd Generation AMD Ryzen processors can take advantage of the lower temperatures offered by premium cooling to enable higher multi-core performance.
Precision Boost 2
Gracefully raises processor frequencies for snappier performance on any number of CPU cores:
The AMD Ryzen processor monitors its own energy consumption and temperature
When the processor knows it's running cool and quiet, it can raise clock speeds in precise 25 MHz steps for any application
Neural Net Prediction
A true artificial intelligence inside every AMD Ryzen processor employs an artificial neural network to understand your applications and anticipate the next steps of your workflow in real time. These "powers of prediction" can boost performance by steering your apps and games down more efficient paths inside the processor.
Pure Power
A sophisticated grid of smart sensors that monitors CPU temperature, resource usage, and power draw brings cool and quiet operation to your AMD Ryzen processor with intelligent power optimization circuits, plus the low power requirements of an advanced 14nm FinFET manufacturing technology.
Smart Prefetch
Sophisticated learning algorithms understand the inner workings of your applications and anticipate what data they might need. Smart Prefetch predictively brings that data into the AMD Ryzen processor for fast and responsive computing.
AMD Ryzen Master Utility
AMD Ryzen Master
Every AMD Ryzen processor is multiplier-unlocked from the factory, so you can personalize performance to your taste. AMD provides the AMD Ryzen Master utility to access this powerful advantage.
Personalized Performance
AMD Ryzen Master provides for up to four profiles to store custom clocks and voltage adjustments for both the Ryzen CPU and DDR4 memory. You can park cores and adjust memory timings, too.
System Monitoring
Accurate hardware status updates are vital, so AMD Ryzen Master has you covered with both real-time monitoring and a histogram of per-core clock rates and temperature, including average and peak readings.
Enmotus FuzeDrive for AMD Ryzen
Enmotus FuzeDrive
FuzeDrive software analyzes all of the storage hardware available on your system, from fastest to slowest: from DDR4 RAM, to 3D Xpoint NVMe drives, standard NVMe drives, SSD drives, and mechanical hard disks. During the setup process, it combines these disks into what your system sees as a single, larger disk. Unlike caching schemes, FuzeDrive lets you use both the SSD and the HDD capacities together as one large boot drive. For example, you can now combine a 128GB SSD and 2TB hard drive into a large bootable 2.1TB high performance FuzeDrive.
Once installed, FuzeDrive intelligently and continuously analyzes your system, activating an ongoing process to make it as fast and responsive as possible. For instance, your Windows operating system boot files are moved to the fastest non-volatile storage to accelerate boot times. And as you use your system from day to day, FuzeDrive notices what applications you run and automatically prioritizes the applications and data you use the most, so it's accessed as quickly as possible from the fastest storage tier available. That means faster boot times, faster application and game load times, and a more responsive system.

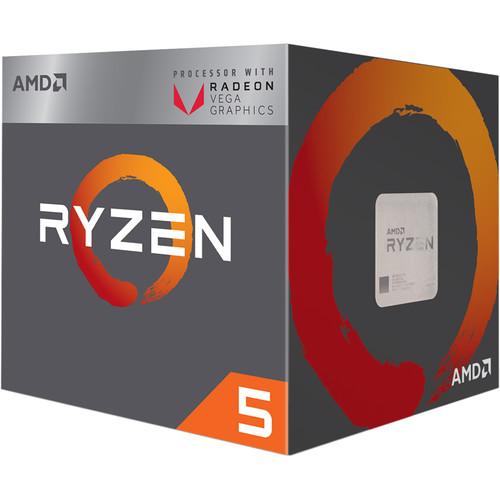

UPC: 730143309080 In the Box AMD Ryzen 5 2400G 3.6 GHz Quad-Core AM4 Processor
AMD Wraith Stealth 65W Cooler
Limited 3-Year Warranty
More from Manufacturer Table of Contents
Upload User Manual
Have you got an user manual for the AMD Ryzen 5 2400G 3.6 GHz Quad-Core AM4 Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters
AMD Ryzen 5 Specs
CPU Model
AMD Ryzen 5 2400G
CPU Socket
AM4
Manufacturing Process
14 nm
Maximum CPU Configuration
1S
Unlocked
Yes
Number of Cores
4
Number of Threads
8
Base Clock Speed
3.6 GHz
Maximum Boost Speed
3.9 GHz
L2 Cache
4 x 512 KB
L3 Cache
4 MB
Memory Support
DDR4 2933 MHz
Channel Architecture
Dual Channel
Thermal Design Power (TDP)
65 W
Included Thermal Solution
Wraith Stealth (65 W)
Maximum Temperature
203°F / 95°C
Instruction Set
64-Bit
Graphics Chipset
AMD Vega 11
Output Support
DisplayPort, HDMI
Base Clock Speed
1250 MHz
Performance Technologies
SenseMI, XFR, Precision Boost
Package Weight
1.15 lb
Box Dimensions (LxWxH)
5.5 x 5.5 x 5.4"
