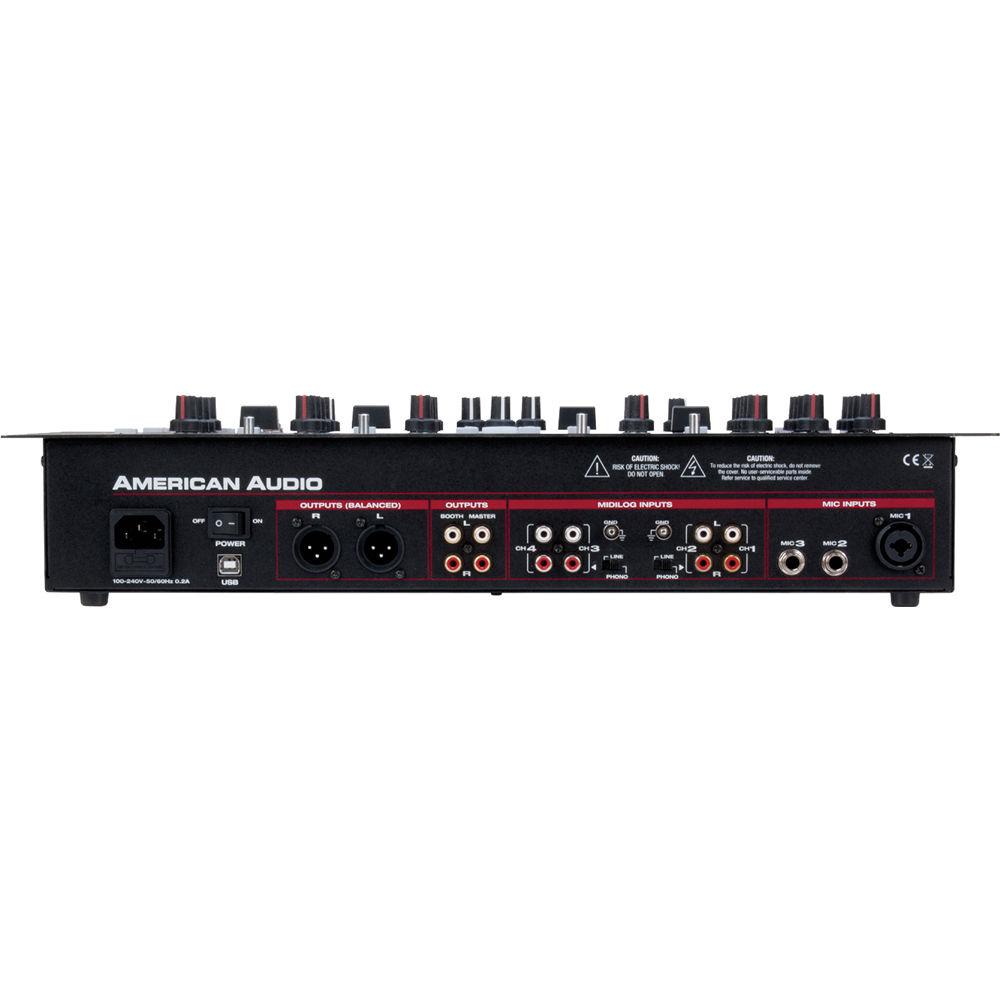

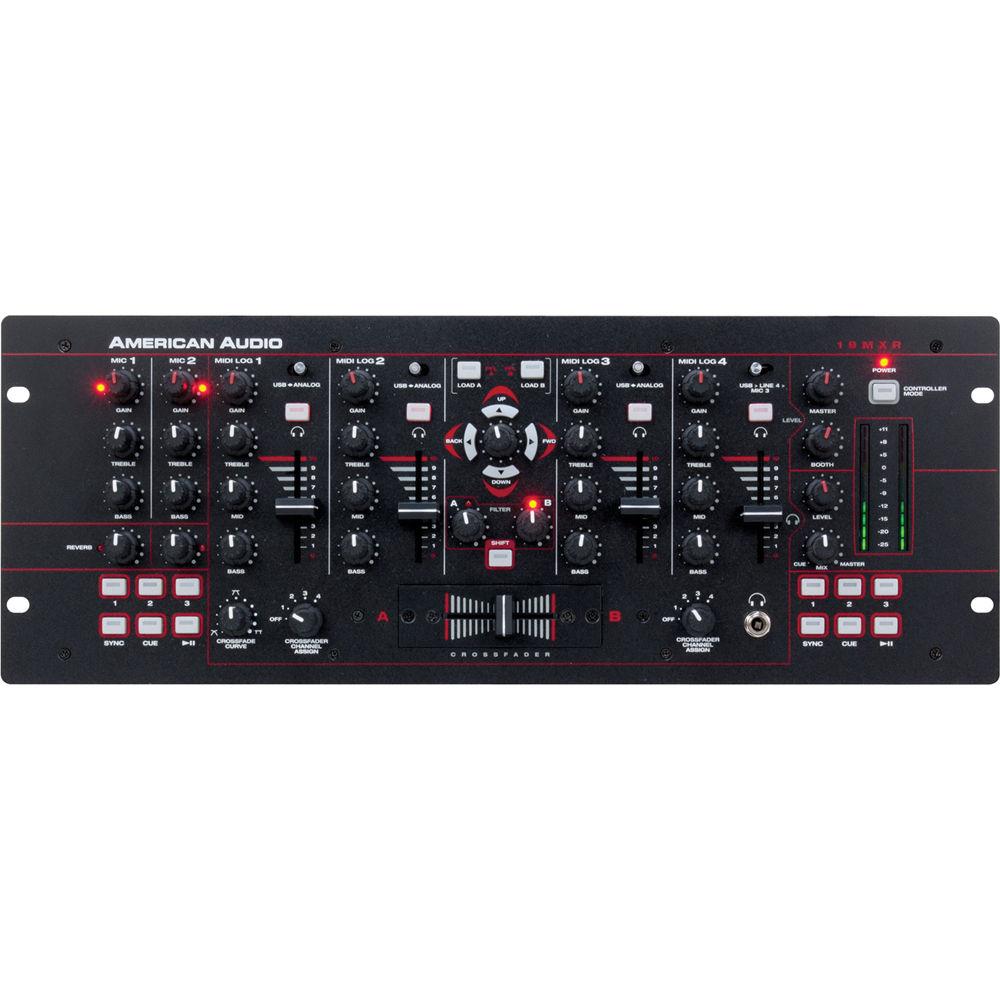

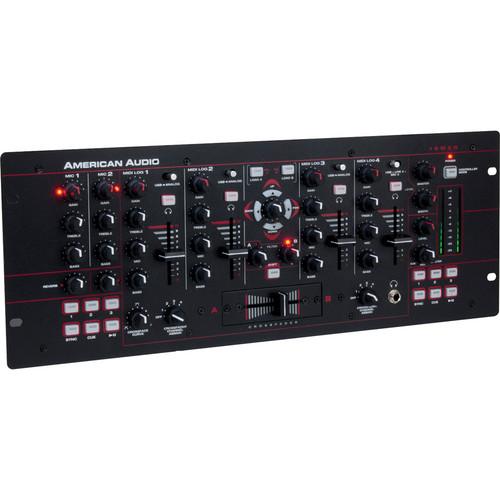

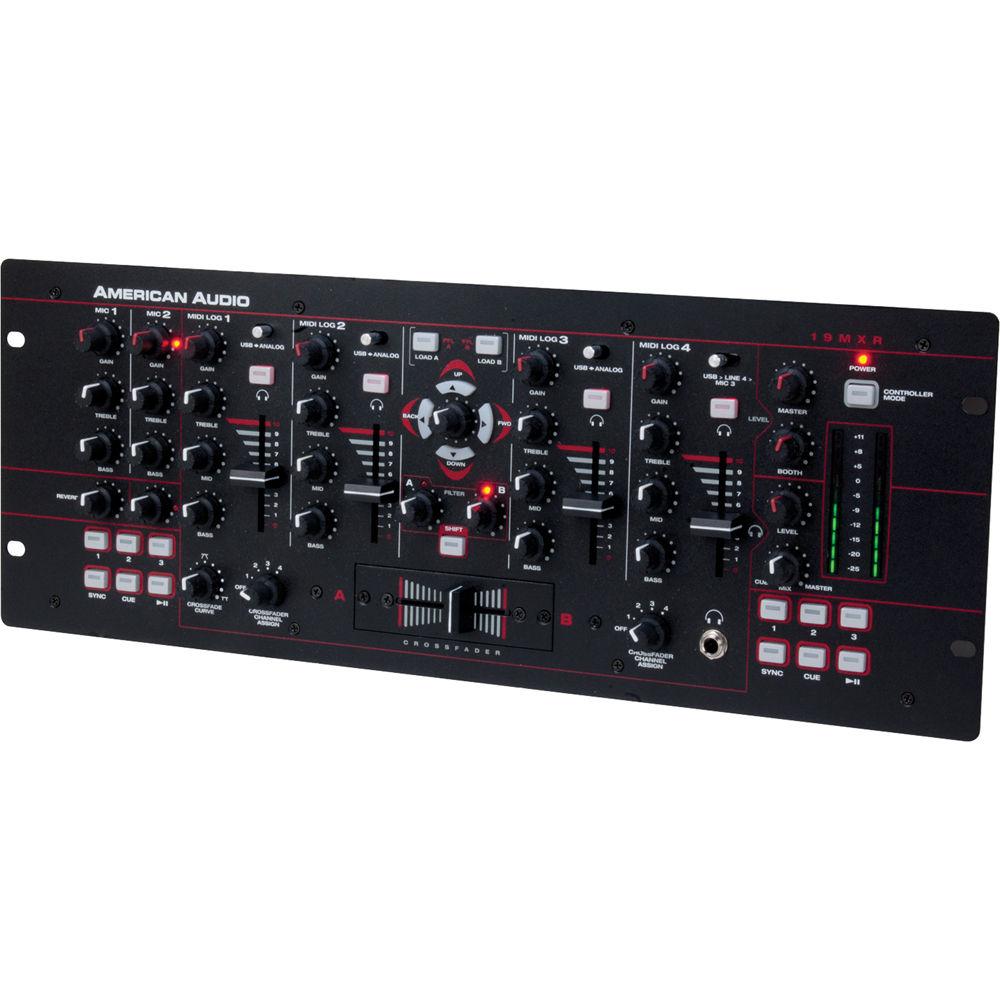

Product description The American Audio 19" MXR 4-Channel MIDILOG Analog/MIDI Mixer is a 4RU rackmountable MIDI and analog mixer designed for live performance DJ applications. The mixer features a built in DSP D-Core sound card with a 4-in/4-out USB audio interface. The rear panel of the mixer includes two switchable phono/line RCA inputs with phono ground for each input channel which enables connecting sources such as CD players and turntables. Each channel features a fader, a rotary gain knob, and a 3-band rotary EQ for treble, mid, and bass. Each channel also features a low/high pass filter with bandwidth control as well as a crossfader with curve adjustment and forward/reverse direction switch. A 10-segment VU meter provides visual feedback to help the DJ keep the mixer from clipping.
The unit includes both unbalanced RCA for master and booth and balanced XLR for master output connections as well as a 1/4" stereo headphone jack. For vocals, the unit includes one balanced XLR and two balanced 1/4" microphone inputs with volume, reverb, and 2-band EQ controls.

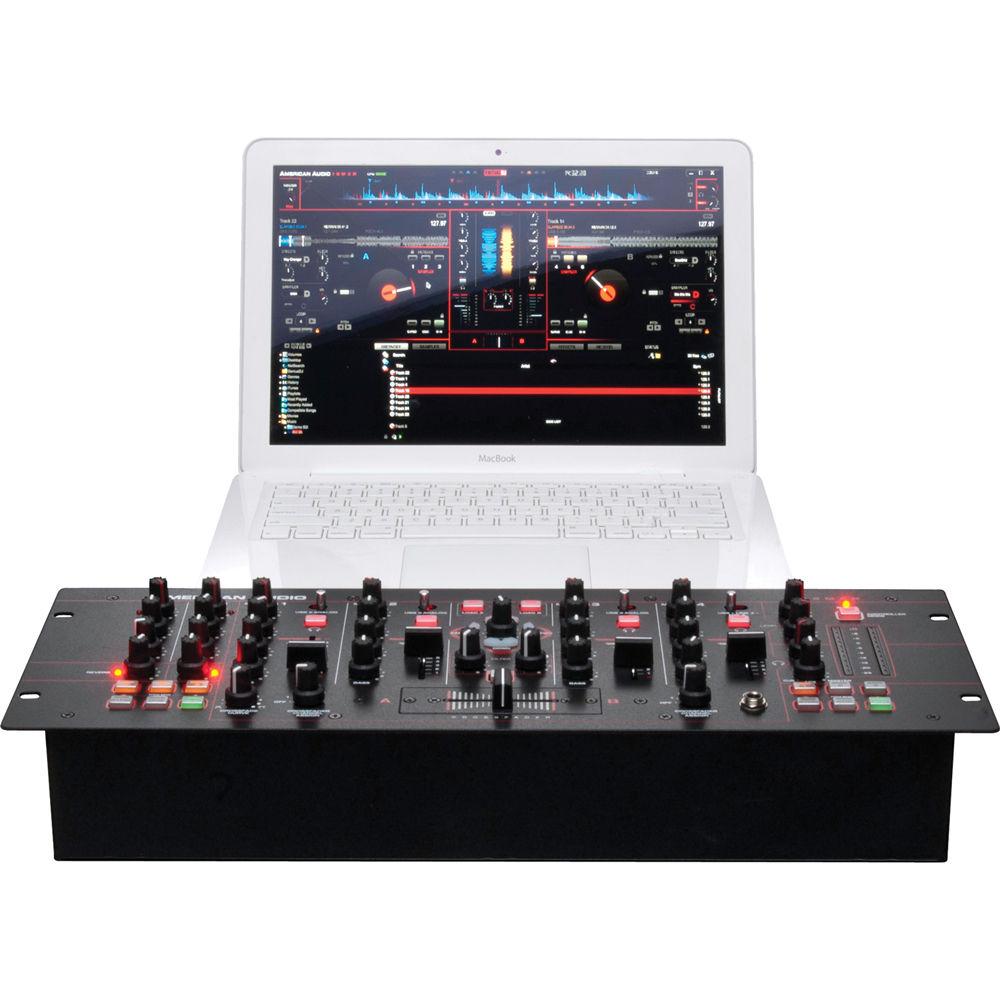

As a MIDI control surface, the unit features MIDI navigation controls for software navigation of your music library, 20 MIDI control buttons that can be mapped by the user, and a USB MIDI interface. UPC: 640282003025 In the Box American Audio 19" MXR 4-Channel MIDILOG Analog/MIDI Mixer Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American Audio 19" MXR 4-Channel MIDILOG Analog MIDI Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican Audio 19 MXR Specs | I/O | 1x USB type-B port for audio and MIDI interface
2x balanced XLR-3M master output
1x unbalanced booth RCA master output
1x unbalanced RCA master output
1x 1/4" stereo headphone output
4x RCA analog inputs
1x balanced XLR-3F microphone input
2x 1/4" microphone inputs | | Sensitivity | Input sensitivity at 100 kΩ load
Line: -14 dB
Aux: -14 dB
Phono: -52 dB
Mic: -45 dB
Rec: -14 dB
Output sensitivity
Master unbalanced: 5.2 V
Master XLR (load = 600 Ω): 10.8 V
Digital out (load = 75 Ω): 10.8 V
Phones (load = 32 Ω): 1.6 V
Master Unbalanced: 5.2 V | | Maximum Input | 1 kHz input, master output THD=1%, EQ flat, fx off, maximum gain)
Line, AUX: 0.7 dB (1 V)
Phono: -38 dB (12.5 mV)
Mic: -30 dB (30 mV) | | Maximum Output | EQ flat, maximum gain, FX off, THD=1%
Master: 10.8 V
Rec: 5.2 V
Phones (Load 32 Ω) 1.6 V | | Output Noise | Line, AUX: 0.7 mV
Phono: 2 mV
Microphone: 1.5 mV | | Frequency Response | Line/Aux: ±1 dB from 10 to 20,000 Hz
Phono: ±1 dB from 10 to 20,000 Hz
Microphone: ±1 dB from 10 to 20,000 Hz | | THD | Line, Aux: 0.03%
Phono: 0.1%
Mic: 0.1% | | Crosstalk | Line, Aux, Phono: -55 dB | | Equalizer | Channel
Bass: -15 to +11 dB
Mid: -13 to +11 dB
Treble: -24 to +12 dB
Microphone
Bass: -15 to +11 dB
Mid:-13 to +11 dB
Treble: -24 to +12 dB | | Crossfader | Low grounding impedance crossfader | | Headphone Impedance | 16 to 64Ω | | Operating Temperature | 41 to 95°F (5 to 35°C) | | Storage Temperature | 14 to 140°F (-10 to 60°C) | | Humidity | 25 to 85% relative humidity (non-condensing) | | Power Consumption | 6 W | | Power Supply | 100 to 240 VAC at 50/60 Hz (Universal) | | Dimension L x W x H | 19 x 7.25 x 3.5" (482 x 178 x 85 mm) | | Weight | 8 lb (3.4 kg) | | | | Package Weight | 10.9 lb | | Box Dimensions (LxWxH) | 21.7 x 10.0 x 8.2" |
