User Manual for American Audio 19 MXR LTD 4-Channel MIDILOG Mixer with Analog MIDI Control Click to enlarge the picture
Contents of the user manual for the American Audio 19 MXR LTD 4-Channel
- Product category: DJ Mixers American Audio
- Brand: American Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American Audio DJ Mixers
 |
User manual for the American Audio 19 MXR LTD 4-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American Audio product will considerably shorten its lifespan!
|

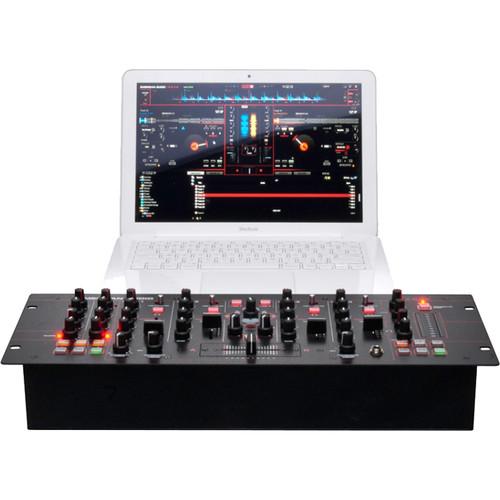

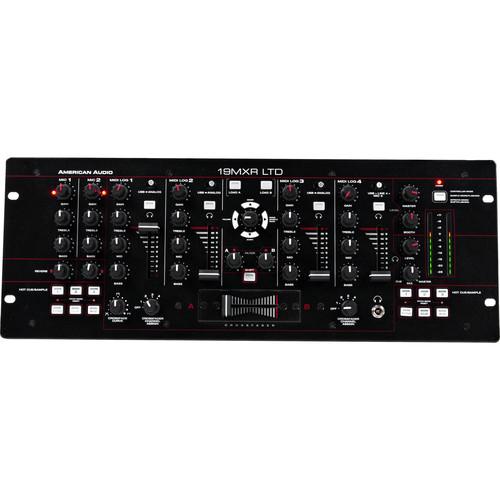

Product description The 19 MXR LTD 4-Channel MIDILOG Mixer from American Audio features an easy-to-use graphic layout, a custom version of Virtual DJ 8LE, and an improved browser for navigation. It features a built-in DSP D-Core sound card with 4-input / 4-output audio interface, balanced XLR outputs, MIDI navigation controls, and user-assignable control buttons to make it easy to customize and play your music. - Feather Fader for smooth and clean cross fades (replaceable)
- Bass, mid, and treble for each channel
- Gain, bass, and treble for mics 1 and 2

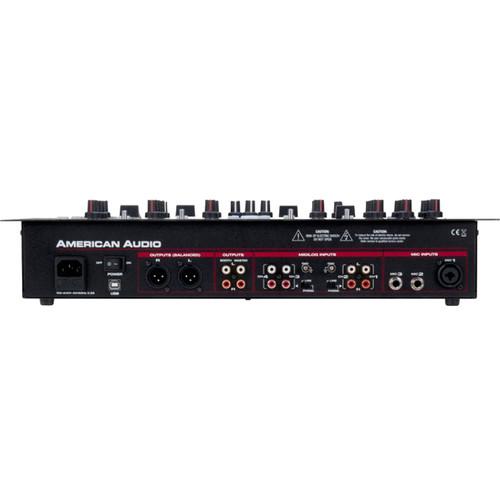

- Turntable ground connectors located on the rear panel
- Adjustable Crossfader curve
- On/off switch for channel assign
- Gain control for each channel
- 19", 4-channel MIDILOG mixer (Compatible with any "MIDI Learn" software or analog inputs such as CD players, turntables, etc.)
- Easy-to-use graphics layout
- Custom version of Virtual DJ 8LE
- Browser features for improved navigation
- Inputs: Four line, two phono, and three mic inputs
- 20 on-board MIDI control buttons (mappable)
- MIDI interface (USB MIDI I/O)
- Built-in DSP D-Core sound card with 4-input and 4-output audio interface
- Controller Mode: When activated USB output streams are routed through master and headphone outputs
- Three-band EQ with rotary kills (treble, mid, and bass)
- MIDI navigation controls to allow easy software navigation of your music library
- Crossfader channel assign
- Master, booth, headphone level, and mix controls
- Microphone volume control and two-band EQ (treble and bass)
- Microphone reverb control
- Mic 3 routed through channel MIDLOG 4
- Crossfader assignable low/high pass filter control
In the Box American Audio 19 MXR LTD 4-Channel MIDILOG Mixer with Analog/MIDI Control Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American Audio 19 MXR LTD 4-Channel MIDILOG Mixer with Analog MIDI Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican Audio 19 MXR LTD Specs | Sensitivity / Impedance | EQ Flat, Maximum Gain, Load: 100 kOhms
Line: -14 dB
Aux: -14 dB
Phono: -52 dB
Mic: -45 dB
Rec: -14 dB
Master Unbalanced: 5.2 V
Master XLR (Load: 600 Ohms): 10.8 V
Digital Out (Load: 75 Ohms): 10.8 V
Phones (Load: 32 Ohms): 1.6 V | | Maximum Input | 1 kHz Input, Master Output THD: 1%, EQ Flat, FX Off, Maximum Gain
Line, Aux: 0.7 dB (1 V)
Phono: -38 dB (12.5 mV)
Mic: -30 dB (30 mV) | | Maximum Output | EQ Flat, Maximum Gain, FX Off, THD: 1%
Master: 10.8 V
Rec: 5.2 V
Phones: (Load: 32 Ohms) 1.6 V | | Output Noise | Maximum Gain, EQ Flat, with 20 kHz LPF, A-Weighted
Line, Aux: 0.7 mV
Phono: 2 mV
Mic: 1.5 mV | | Frequency Response | EQ Flat, Maximum Gain
Line/Aux: ±1 dB, 10 to 20 kHz
Phono: ±1.5 dB, 10 to 20 kHz
Microphone: ±1.5 dB, 10 to 20 kHz | | Connectors | 3 x mic
4 x line
2 x Phono
RCA master outputs
Booth outputs
Balanced XLR master outputs
USB
Audio Inputs: RCA
Microphone Inputs: 1 x balanced XLR, 2 x 1/4" balanced
Headphone Input: 1/4" stereo | | THD | EQ Flat, Maximum Gain, with 20 kHz LPF
Line, Aux: 0.03%
Phono: 0.1%
Mic: 0.1% | | Crosstalk | (Maximum Gain, EQ Flat)
Line, Aux, Phono: -55 dB | | Equalizer | Channel Equalizer: (Maximum Gain, Master Unbalanced Output)
Bass: -15 to 11 dB
Mid: -13 to 11 dB
Treble: -24 to 12 dB
Microphone Equalizer: (Maximum Gain, Master Unbalanced Output)
Bass: -15 to 11 dB
Mid: -13 to 11 dB
Treble: -24 to 12 dB | | Crossfader | Feather Fader Plus
Low-grounding impedance crossfader | | Headphone Impedance | 16 to 64 Ohms | | Operating Temperature | 41 to 95°F (5 to 35°C) | | Storage Temperature | 14 to 140°F (-10 to 60°C) | | Humidity | 25 to 85% RH (non-condensing) | | Mount | 19" rack mountable | | Power Consumption | 6 W | | Power Supply | 100 to 240 VAC, 50/60 Hz (universal) | | Dimension (L x W x H) | 19 x 7.25 x 3.5" (482 x 178 x 85 mm) | | Weight | 8 lb (3.4 kg) | | | | Box Dimensions (LxWxH) | 24.0 x 12.0 x 8.0" |
