User Manual for American Audio ATX-15W 15" Active 2-Way Speaker Click to enlarge the picture
Contents of the user manual for the American Audio ATX-15W 15" Active 2-Way
- Product category: PA Speakers American Audio
- Brand: American Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American Audio PA Speakers
 |
User manual for the American Audio ATX-15W 15" Active 2-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American Audio product will considerably shorten its lifespan!
|

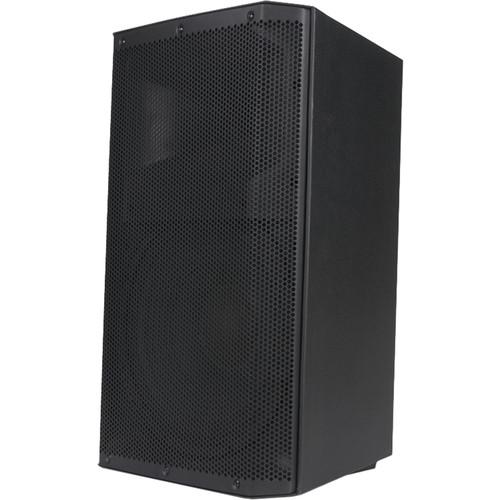

Product description The American Audio ATX-15W is a professional 15" active 2-way sound reinforcement loudspeaker with wireless audio and wireless pairing. Its efficient design offers low power consumption with plenty of output power, making it ideal for small and mid-size events. The multi-functional design includes a pole-mount slot and rubber feet on the bottom of the unit for portable applications.

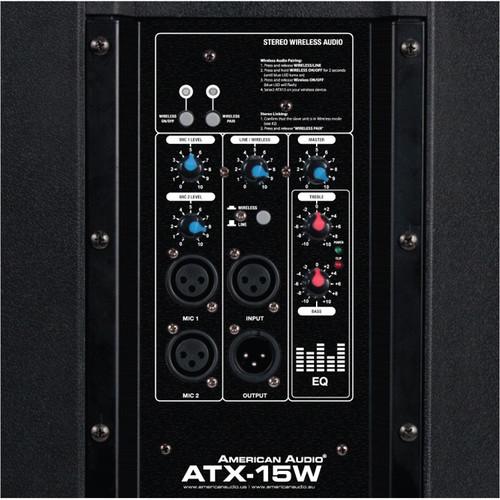

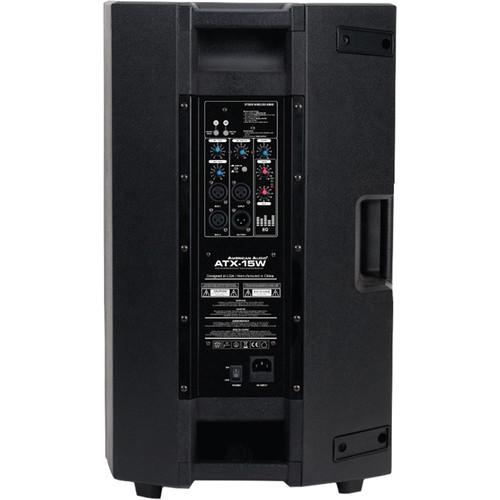

The rear panel offers two XLR microphone inputs with independent level controls and an XLR line input with an XLR line pass-through for connecting additional speakers. Bass and treble controls allow you to customize the sound for any venue. The Line Level/Wireless button allows you to switch between line level and wireless activity. You can pair any Bluetooth wireless device to the speaker for wireless audio transmission. Two speakers can be paired together for a wireless setup. The American Audio ATX-15W ships with an IEC power cord. -
- 15", 2-way active PA speaker
- Two XLR mic inputs
- Wireless audio connectivity
- Wireless pairing
- Line level / wireless volume control
- Treble & Bass EQ: +/-10 dB
- Built-in, pole-mount socket
- Attached heavy-duty rubber feet
- Master volume control
- XLR input and output
- Wireless Connectivity: Stereo wireless
- 1000W dynamic power
- Amplifier System: Class A/B
- Components: 15” steel frame woofer, 1.4” titanium diaphragm tweeter
- Universal Power Supply: Multi-voltage 120 to 240 VAC, 50/60 Hz
- Frequency Response: 50 Hz to 20 kHz
- Enclosure Material: Polypropylene
- Monitor cut
- Flyable
UPC: 818651020526 In the Box American Audio ATX-15W 15" Active 2-Way Speaker (Single) IEC Power Cord Limited 1-Year Warranty User Manual PDF 3.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the American Audio ATX-15W 15" Active 2-Way Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican Audio ATX-15W Specs | | | Configuration | Active 2-Way | | Total Power Capacity | 1000 W | | | | HF Driver | 1 x 1.4" / 34 mm Titanium Dome | | LF Driver | 1 x 15" / 385 mm Woofer | | LF Voice Coil | 2.6" / 65 mm | | Magnet | 50 oz / 1.41 kg | | | | Frequency Response | 50 Hz to 20 kHz | | Maximum SPL | 130 dB | | Speaker Sensitivity | 98 dB | | Input Sensitivity | Mic Input:
40 dB | | I/O Impedance | Line Input:
22 kOhms (Balanced)
15 kOhms (Unbalanced)
Mic Input:
3.6 kOhms (Balanced)
1.8 Ohms (Unbalanced) | | SNR | Line Input:
120 dB
Mic Input:
95 dB | | | | Crossover | Low-Pass:
2.8 kHz, 12 dB/Octave
High-Pass:
30 Hz, 12 dB/Octave | | EQ | LF Shelf:
±10 dB at 180 Hz
HF Shelf:
±10 dB at 3.3 kHz | | | | AC Input Power | 115 to 230 VAC, 50 / 60 Hz (5 A 250 V) | | Power Consumption | 200 W | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Temperature | 4 to 140°F / -16 to 60°C | | Operating Humidity | 25 to 85% | | Dimensions | 15.1 x 16.7 x 27.0" / 383.0 x 423.2 x 685.8 mm | | Weight | 39.7 lb / 18 kg | | | | Package Weight | 40.0 lb | | Box Dimensions (LxWxH) | 30.0 x 29.0 x 19.0" |
