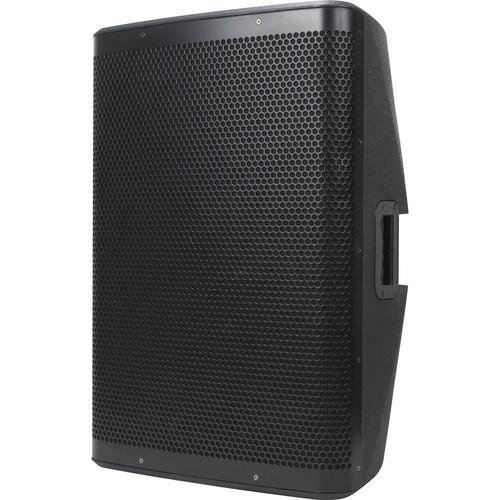

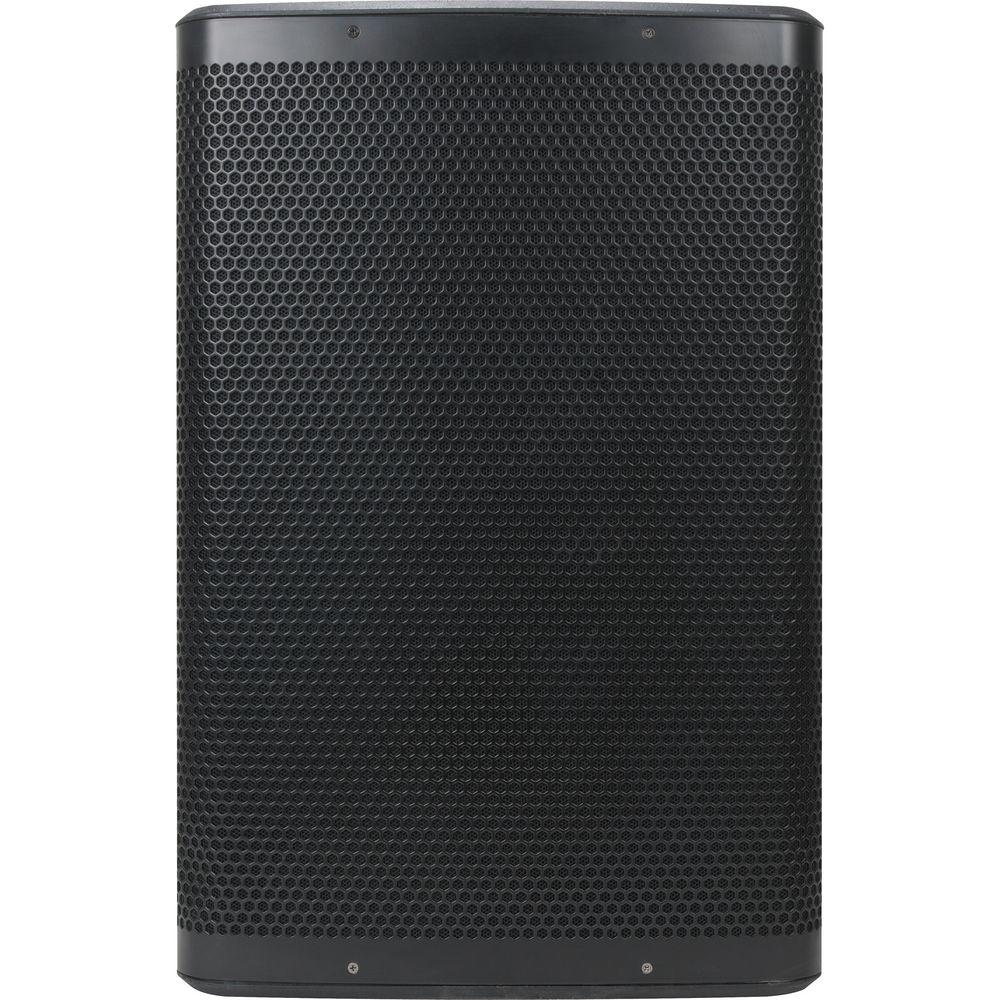

Product description The American Audio CPX 15A is a 500W, 2-way active speaker with a 15-inch woofer and a high efficiency Class D amplifier. It features a time aligned crossover, five M8 rigging points and is stand mountable. The front grill is made from heavy duty steel.
The CPX 15A is designed for mobile entertainers, rental houses and production companies. It's also great for installations where cost-effective sound is required. Each model is designed to deliver great sound whether you are miking your band, using them as a side-fill or floor monitor, DJing your weekly gig, or installing them at your house of worship, club, lounge, or bar. - Features:
- • 2-way speaker with high efficiency Class D amplifier
• 500W built-in bi-amplifier
• Time aligned electronic crossover
• 5 M8 rigging points
• Stand mountable
• Heavy duty steel grill
• Ergonomic handles

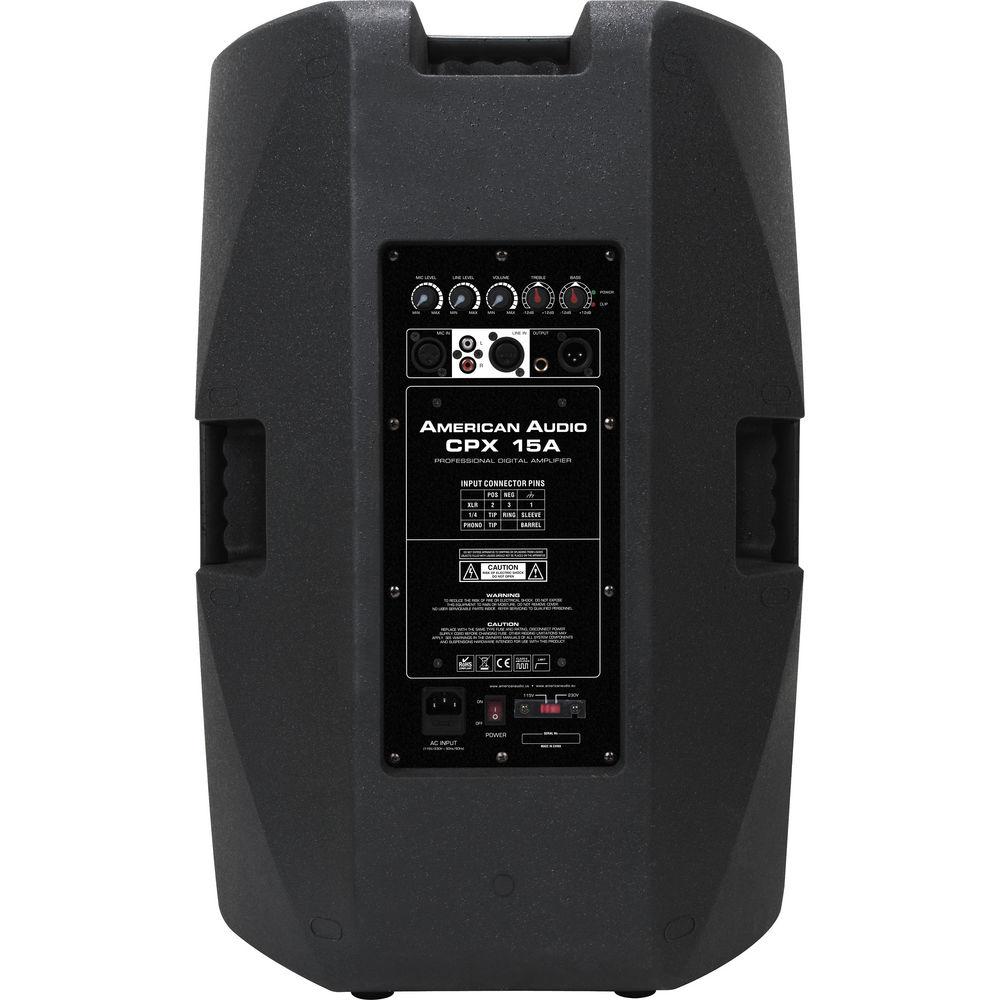

• Power and clip LED indicators
• XLR and RCA inputs
• XLR and TRS throughputs
• Clipping and thermal protection UPC: 640282003544 In the Box American Audio CPX 15A - 500W 2-Way 15" Loudspeaker Limited 1-Year Warranty User Manual PDF 2.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the American Audio CPX 15A - 500W 2-Way 15" Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican Audio CPX 15A Specs | | | Configuration | 2-Way | | Total Power Capacity | 500 W | | | | HF Driver | 1 x Compression Driver with 1" / 25 mm Throat | | HF Voice Coil | 1.7" / 44 mm | | LF Driver | 1 x 15" / 381 mm Woofer | | LF Voice Coil | 2.5" / 75 mm | | | | Frequency Response | 30 Hz to 18 kHz | | Maximum SPL | 118 dB | | Coverage Angle | 90° H x 60° V | | Speaker Sensitivity | 97 dB | | I/O Impedance | Line Input:
20 kOhms (Balanced)
10 kOhms (Unbalanced)
Mic Input:
3.6 kOhms (Balanced)
1.8 kOhms (Unbalanced) | | SNR | Line Input:
100 dB
Mic Input:
80 dB | | | | Crossover | Low-Pass:
2.7 kHz, 12 dB/Octave
High-Pass:
30 Hz, 12 dB/Octave | | EQ | LF Shelf:
±12 dB at 100 Hz
HF Shelf:
±12 dB at 10 kHz | | | | AC Input Power | User Selectable:
115 VAC, 60 Hz
230 VAC, 50 Hz | | | | Dimensions | 18.0 x 15.5 x 27.0" / 456.0 x 390.0 x 680.0 mm | | Weight | 62 lb / 28 kg | | | | Package Weight | 74.0 lb | | Box Dimensions (LxWxH) | 32.0 x 22.0 x 19.0" |
