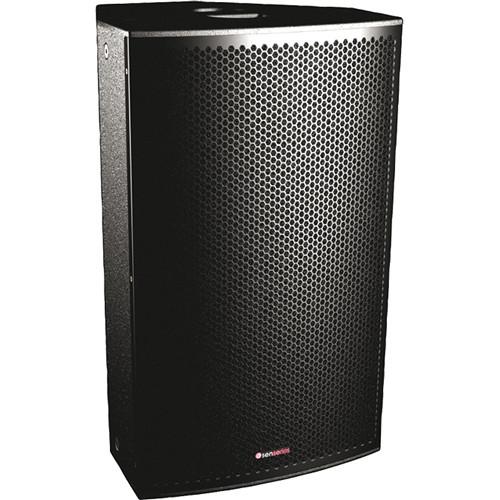

Product description The Sense 12 2-Way 12" Passive Loudspeaker from American Audio is a professional-quality loudspeaker that's ideal for portable or installed applications in medium-sized venues. The rigid plywood cabinet has a durable black paint finish and a powder-coated steel grille with acoustic foam for lasting durability and performance quality. The speaker's asymmetric design and 45° angle structure let you position the speaker vertically or horizontally for FoH or stage monitor usage. The rotatable quadratic horn ensures optimal acoustic performance, regardless of cabinet orientation.
The speaker has a 12" aluminum basket woofer with a 75mm voice coil, as well as a 1" compression tweeter with a 44mm voice coil. These drivers work together with the speaker's passive crossover system to deliver a wide frequency response with excellent dynamics. The tweeter is mounted on the horn to deliver a constant 75 x 50° directivity pattern to provide broad dispersion. The speaker has an LSM speaker management system and can accept up to 1400W of peak amplifier power for a strong, distortion-free performance.
The rear panel has a pair of NL4 Speakon inputs for wide compatibility with a variety of sound systems or devices. The cabinet has a handle integrated into the top for convenient transportation. There are also M8 screws in each corner for attaching rigging eyes, ideal for suspended applications. A standard pole socket on the bottom panel allows you to mount the speaker on a stand or on top of a subwoofer. - The compact and lightweight passive design is ideal for portable or installed applications in medium-sized venues
- The rigid plywood cabinet has a durable black paint finish and a powder-coated steel grille with acoustic foam for lasting durability and performance quality
- The speaker's asymmetric design and 45° angle structure let you position the speaker vertically or horizontally for FoH or stage monitor usage
- The rotatable quadratic horn ensures optimal acoustic performance, regardless of cabinet orientation
- The speaker has a 12" aluminum basket woofer with a 75mm voice coil, as well as a 1" compression tweeter with a 44mm voice coil. These matched drivers work together with the speaker's passive crossover system to deliver a wide frequency response with excellent dynamics
- The tweeter is mounted on the horn to deliver a constant 75 x 50° directivity pattern to provide broad dispersion to reach a wide audience
- The speaker has an LSM speaker management system and can accept up to 1400W of peak amplifier power for a strong, distortion-free performance
- The rear panel has a pair of NL4 Speakon inputs for wide compatibility with a variety of sound systems or devices
- The cabinet has a handle integrated into the top for convenient transportation. There are also M8 screws in each corner for attaching rigging eyes, ideal for suspended applications. A standard pole socket on the bottom panel allows you to mount the speaker on a stand or on top of a subwoofer
UPC: 819730017536 In the Box American Audio Sense 12 2-Way 12" Passive Loudspeaker 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American Audio Sense 12 2-Way 12" Passive Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican Audio Sense 12 Specs | | | Configuration | Passive 2-Way | | Total Power Capacity | 350 W RMS
700 W Program
1400 W Peak 250 to 500 W at 8 Ohms Recommended | | System Impedance | 8 Ohms | | | | HF Driver | 1 x 1" / 25 mm Compression Driver | | HF Voice Coil | 1.73" / 44 mm | | LF Driver | 1 x 12" / 305 mm Woofer | | LF Voice Coil | 2.95" / 75 mm | | | | Frequency Response | 59 Hz to 20 kHz -3 dB
51 Hz to 21 kHz -10 dB | | Maximum SPL | 128 dB (Peak) | | Coverage Angle | 75° H x 50° V | | Speaker Sensitivity | 98 dB | | | | Audio I/O | 2 x speakON NL4 Input | | | | Crossover | 1.8 kHz, 12/18 dB/Octave | | | | Mounting | 1 x Pole Socket
4 x M8 Fly Point | | Monitor Angle | 45° | | Handles | 1 | | Construction Material | Metal Grille, Plywood | | Dimensions | 14.2 x 25.2 x 12.8" / 360.0 x 640.0 x 325.0 mm | | Weight | 39.6 lb / 18 kg | | | | Package Weight | 45.0 lb | | Box Dimensions (LxWxH) | 28.0 x 17.5 x 15.25" |
