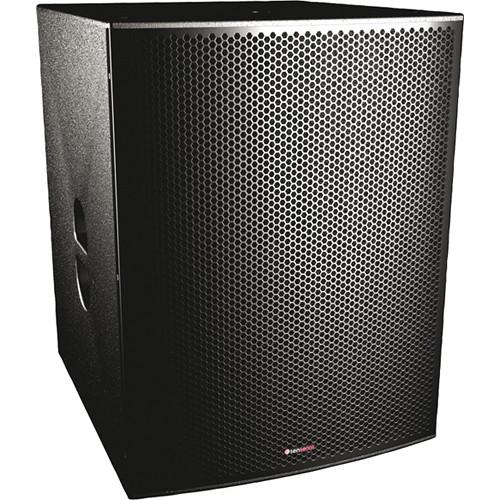

User Manual for American Audio Sense 18B 18" Passive Loudspeaker Click to enlarge the picture
Contents of the user manual for the American Audio Sense 18B 18" Passive
- Product category: PA Speakers American Audio
- Brand: American Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American Audio PA Speakers
|
User manual for the American Audio Sense 18B 18" Passive contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American Audio product will considerably shorten its lifespan!
|
Product description The Sense 18B 18" Passive Loudspeaker from American Audio is a professional-quality subwoofer that's ideal for bass reinforcement alongside the Sense series full-range loudspeakers for portable or installed applications in medium-sized venues. The rigid plywood cabinet has a durable black paint finish and a powder-coated steel grille with acoustic foam for lasting durability and performance quality.
The sub has an 18" aluminum basket woofer with a 100mm voice coil to deliver a powerful bass response with excellent dynamics and frequencies as low as 36Hz. The sub has an LSM speaker management system and can accept up to 2400W of peak amplifier power for a strong, distortion-free performance. The rear panel has a pair of NL4 Speakon inputs for wide compatibility with a variety of sound systems and devices. The cabinet has handles integrated into the sides for convenient transportation. There is also an M20 pole socket on the top panel for mounting a full-range speaker. - The compact and lightweight passive design is ideal for bass reinforcement alongside the Sense series full-range loudspeakers for portable or installed applications in medium-sized venues
- The rigid plywood cabinet has a durable black paint finish and a powder-coated steel grille with acoustic foam for lasting durability and performance quality
- The sub has an 18" aluminum basket woofer with a 100mm voice coil to deliver a powerful bass response with excellent dynamics and frequencies as low as 36Hz
- The sub has an LSM speaker management system and can accept up to 2400W of peak amplifier power for a strong, distortion-free performance
- The rear panel has a pair of NL4 Speakon inputs for wide compatibility with a variety of sound systems and devices
- The cabinet has handles integrated into the sides for convenient transportation. There is also an M20 pole socket on the top panel for mounting a full-range speaker
In the Box American Audio Sense 18B 18" Passive Loudspeaker 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American Audio Sense 18B 18" Passive Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican Audio Sense 18B Specs | | | Configuration | Passive Subwoofer | | Total Power Capacity | 600 W RMS
1200 W Program
2400 W Peak 400 to 800 W Amplifier at 8 Ohms Recommended | | System Impedance | 8 Ohms | | | | LF Driver | 1 x 18" / 45.72 cm Woofer | | LF Voice Coil | 3.93" / 100 mm | | | | Frequency Response | 42 Hz to 200 Hz -3 dB
36 Hz to 250 Hz -10 dB | | Coverage Angle | 90° H x 60° V | | Speaker Sensitivity | 103 dB SPL 136 dB Peak | | | | Audio I/O | 2 x speakON NL4 Input | | | | Mounting | 1 x M20 (Bottom) | | Handles | 1 | | Construction Material | Metal Grille, Plywood | | Dimensions | 20.5 x 25.6 x 23.6" / 520.0 x 650.0 x 600.0 mm | | Weight | 72.6 lb / 33 kg | | | | Package Weight | 48.0 lb | | Box Dimensions (LxWxH) | 25.5 x 24.0 x 20.0" |
