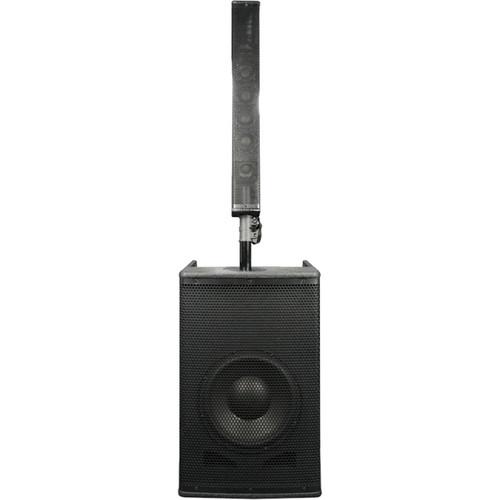

User Manual for American Audio STK-106W - 2-Way Mini-Array Sound System Click to enlarge the picture
Contents of the user manual for the American Audio STK-106W - 2-Way Mini-Array
- Product category: Portable PA Systems American Audio
- Brand: American Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American Audio Portable PA Systems
 |
User manual for the American Audio STK-106W - 2-Way Mini-Array contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American Audio product will considerably shorten its lifespan!
|

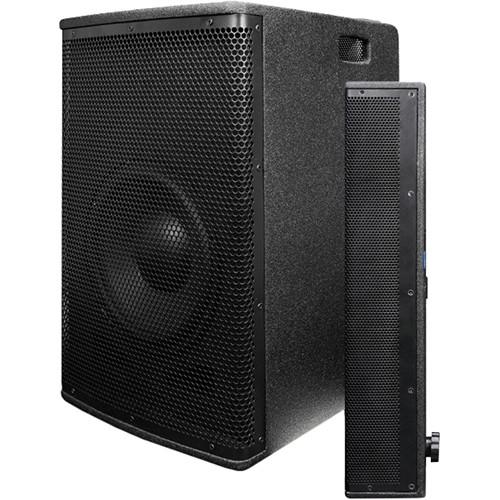

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The American Audio STK-106W is a versatile, 2-way mini-array powered sound system, well suited for mobile artists, DJs, live sound, and recorded music playback as well as vocal PA for presentations, events and parties. The system utilizes a 750W (1500W peak) Class-D amplifier, which delivers 500W to the 10" subwoofer and 250W to the 6 x 2" tweeter array, which combine to deliver a frequency response of 45 Hz to 20 kHz.
The solid plywood subwoofer enclosure houses the integrated six-channel mixer, which offers a variety of inputs including two combo XLR-1/4" mic/line inputs with reverb, two 1/4" or RCA line inputs, and a stereo 1/8" input for connecting a portable music player. Additionally, the mixer can pair for Bluetooth wireless audio streaming from a portable device. The mixer also features a master level control, wireless pairing to a second STK-106W, and RCA outputs for monitoring.

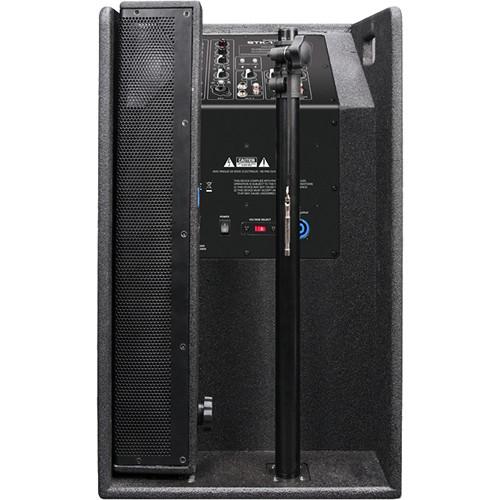

The American Audio STK-106W uses an adjustable mounting pole for the tweeter array and includes a speakON cable for connecting the integrated amplifier to the array. A padded cover is included as well as a standard IEC power cord. -
- 2-way portable array sound system
- 10" powered subwoofer
- 6 x 2" tweeter array
- Class-D amplification: 750W RMS (1500W peak)
- 6-channel mixer
- Channels 1-2: 2 x combo microphone/line inputs with reverb
- Channels 3-4: 2 x 1/4" or RCA stereo line inputs
- Channels 5-6: 1 x mini-stereo input jack or Bluetooth wireless stereo connectivity
- Adjustable mounting pole
- speakON cable for connecting array to powered subwoofer
- Padded cover
- Standard IEC power cord
- Outputs: Stereo monitor RCA output
- Master volume control
- Bluetooth wireless pairing to a second STK-106W unit
- Solid plywood housing
UPC: 818651020335 In the Box American Audio STK-106W - 2-Way Mini-Array Sound System Powered Subwoofer Tweeter Array Mounting Pole Padded Cover SpeakOn Cable Standard IEC Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American Audio STK-106W - 2-Way Mini-Array Sound System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican Audio STK106W Specs | Type | 2-way portable array system | | LF Driver | Subwoofer: 10.0" / 25.4 cm | | HF Driver | Tweeter Array: 6 x 2.0" / 5.1 cm | | Amplifier | Class-D | | Power Output | 500 W + 250 W, (1500 W peak) | | Frequency Response | 45 Hz to 20 kHz | | Mixer | Channels 1-2: 2 x XLR-1/4" / 6.35 mm combo mic/line inputs
Channels 3-4: 2 x 1/4" / 6.35 mm or stereo RCA inputs
Channels 5-6: 1 x stereo 1/8" / 3.5 mm inputs | | Bluetooth | Stereo wireless audio streaming to channels 5-6
Stereo wireless output for pairing with additional STK-106W | | Enclosure Material | Plywood | | Power Requirements | AC Input Switch Voltage; 110 to 220 VAC | | Dimensions | 11.8 x 19.5 x 18.4" / 300.0 x 495.0 x 466.1 mm | | Weight | 45.2 lb / 20.5 kg | | | | Package Weight | 46.9 lb | | Box Dimensions (LxWxH) | 25.0 x 19.0 x 17.0" |
