American Audio VMS5.0 DJ MIDI Controller

Search your instruction manual in PDF to download

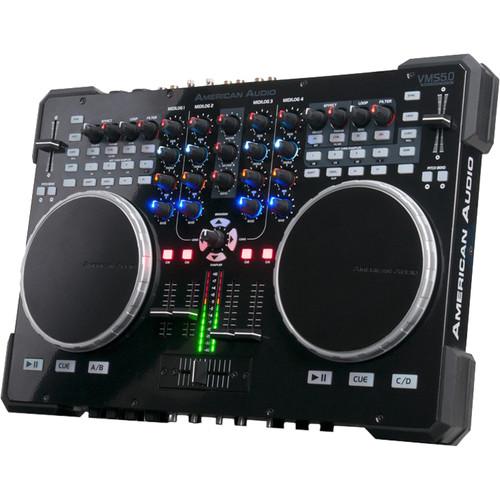

User Manual for American Audio VMS5.0 DJ MIDI Controller Analog Mixer

Click to enlarge the picture
American Audio VMS5.0 DJ MIDI Controller Analog Mixer Contents of the user manual for the American Audio VMS5.0 DJ MIDI Controller
  • Product category: DJ Controllers American Audio
  • Brand: American Audio
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for American Audio DJ Controllers

American Audio VMS5.0 DJ MIDI Controller Analog Mixer American Audio VMS5.0 DJ MIDI Controller Analog Mixer American Audio VMS5.0 DJ MIDI Controller Analog Mixer American Audio VMS5.0 DJ MIDI Controller Analog Mixer American Audio VMS5.0 DJ MIDI Controller Analog Mixer American Audio VMS5.0 DJ MIDI Controller Analog Mixer American Audio VMS5.0 DJ MIDI Controller Analog Mixer American Audio VMS5.0 DJ MIDI Controller Analog Mixer American Audio VMS5.0 DJ MIDI Controller Analog Mixer
User manual for the American Audio VMS5.0 DJ MIDI Controller contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any American Audio product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official American Audio user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a American Audio product will considerably shorten its lifespan!



Product description

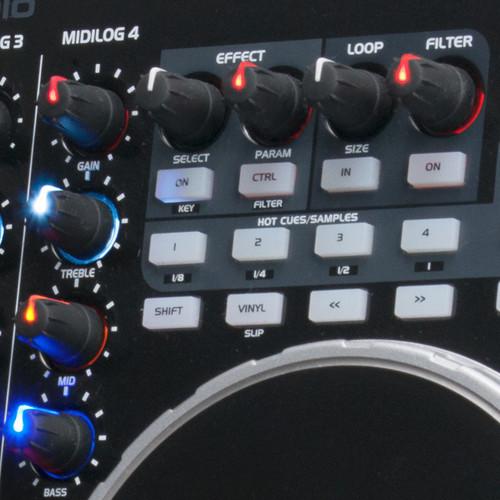

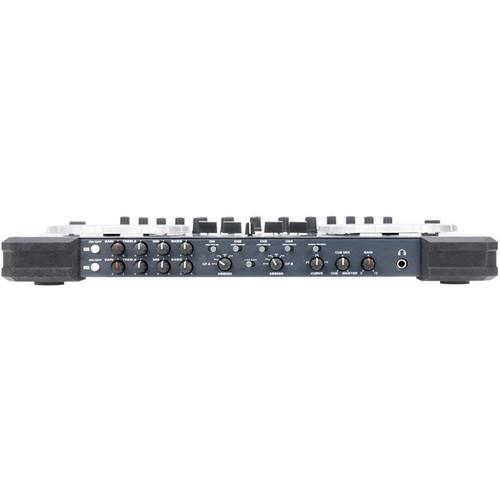

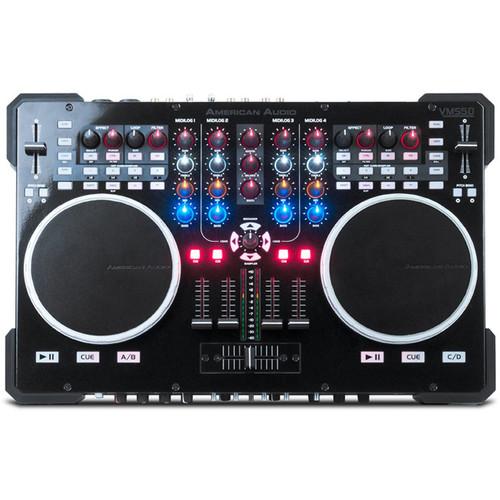

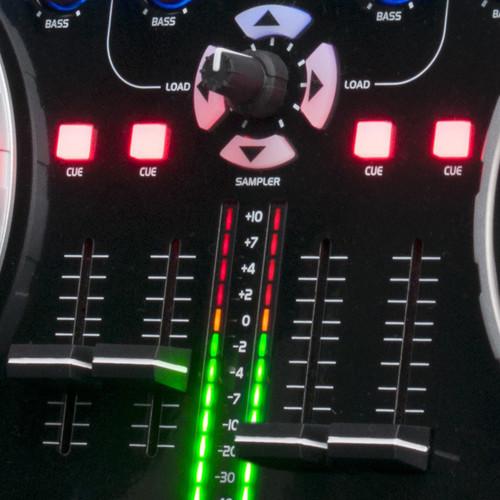

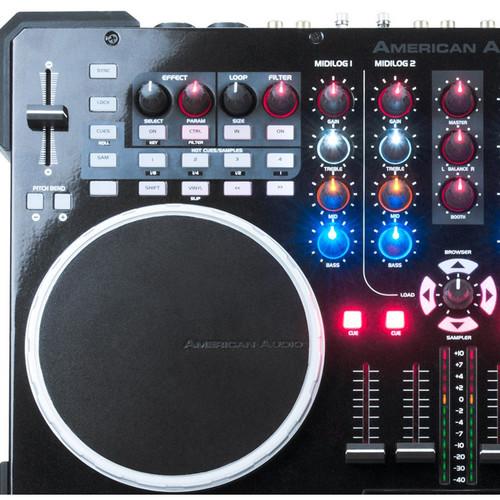

The VMS5.0 DJ MIDI Controller/Analog Mixer from American Audio is an all-in-one midi controller that allows DJs to control the software and music from their laptop (four deck and two deck DVS). You can use the standalone mixer as a traditional analog mixer with four line inputs, two phono inputs, and two microphone inputs. This device features 4 USB/Analog selectable MIDILOG (Midi & Analog) channels. It also has gain/treble/mid/bass EQ on all MIDILOG Channels.
    • 6" platters
    • User configurable sound card 4x4 (DVS-2 Deck) or 8x2 (4 Deck)
    • DSP D-core studio quality audio engine and Pro stage microphone circuitry
    • 6-channel mixer
    • Can be used as a stand alone mixer

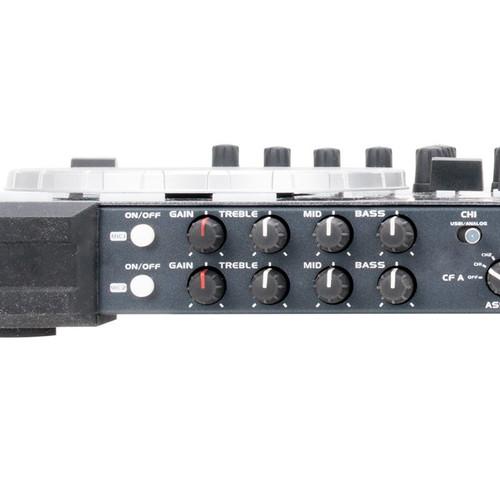

    • Gain and 3-band EQ on each mic
    • Illuminated knobs and buttons
    • Rotary browser with four function buttons
    • Rugged all metal chassis, industrial protective rubber corners
    • XLR & RCA master outputs
    • RCA booth output
    • 76 MIDI controls (36 x MIDI knobs, 7 x MIDI faders, 33 x MIDI buttons)
    • Inno-fader compatible
    • Virtual DJ 8LE custom version included
    • Includes video mixing, karaoke
    • Unlimited sampling
    • Inno-fader compatibility with curve control, assign, and reverse
    • 38 assignable rotary controllers, 5 assignable rotary encoders
    • 52 MIDI buttons have LED illuminations, including 18 with dual blue/red LEDs
    • 62 assignable MIDI buttons and switches
    • Dual 2000 point resolution touch sensitive turntable scratch controllers
    • Dual MIDI controls on all buttons and switches
    • Seven assignable linear fader controllers
    • Multi-functional rotary browser with four function buttons
Table of Contents




Upload User Manual

Have you got an user manual for the American Audio VMS5.0 DJ MIDI Controller Analog Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

American Audio VMS5.0 Specs

MIDI 52 x assignable MIDI buttons
5 x rotary encoders
7 x assignable linear faders
38 x MIDI assignable knobs
97 x total MIDI control
Analog Audio 48 kHz, 24-bit
USB Audio 44.1 kHz, 16-bit
Resolution 10-bit resolution on all analog fader controls
THD < 0.1%
Channel Separation > 60 dB
S/N Ratio > 85 dB
Audio Latency Analog Channel Audio Latency: < 1 msec
USB USB Modes:
4 x 4 mode for running software effects on phono/line analog channels
2 x 8 mode for running four software channels and master recording
Response Time 2 ms response on all buttons
4 ms response on all rotary and linear faders
1 ms USB latency

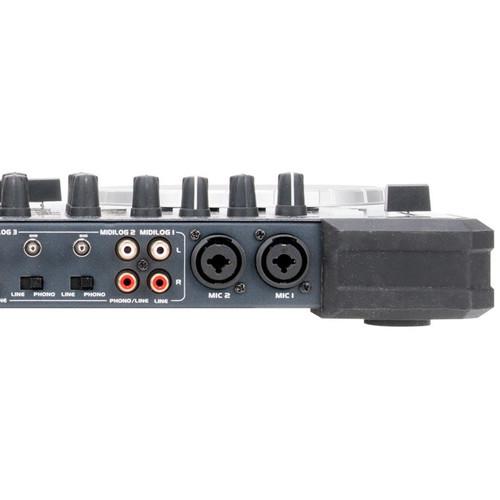

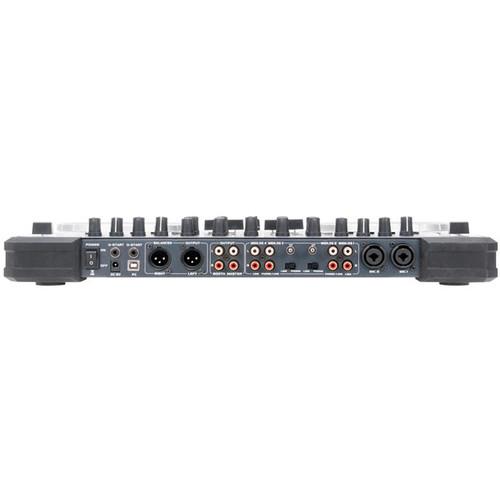

Analog Inputs 6 x analog inputs (2 x mic / 2 x phone / 4 x line)
Mixer 6-channel

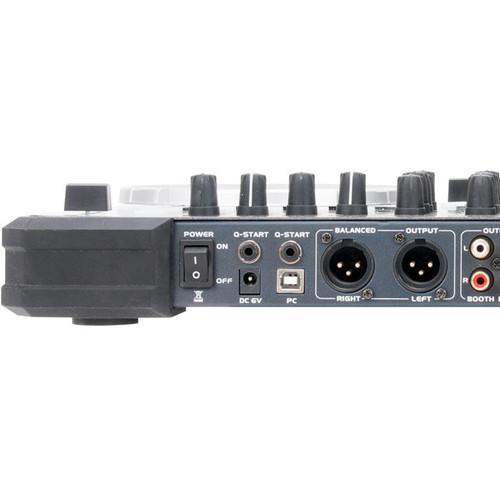

Output XLR and RCA master outputs
RCA booth output
Dimensions Not specified by the manufacturer
Weight Not specified by the manufacturer
