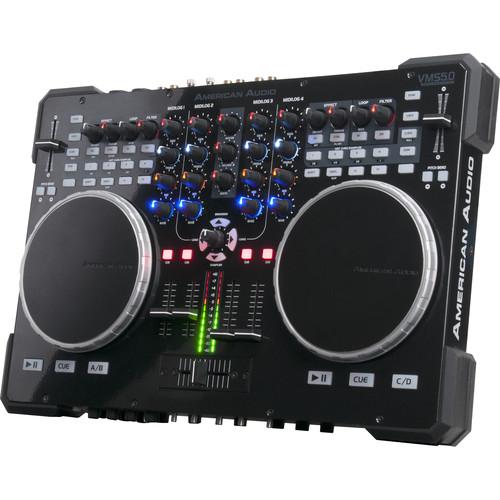

User Manual for American Audio VMS5 - 6-Channel MIDI Controller Analog Mixer Click to enlarge the picture
Contents of the user manual for the American Audio VMS5 - 6-Channel MIDI
- Product category: DJ Controllers American Audio
- Brand: American Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American Audio DJ Controllers
 |
User manual for the American Audio VMS5 - 6-Channel MIDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American Audio product will considerably shorten its lifespan!
|
Product description The VMS5 from American Audio is a MIDI controller with four USB / analog selectable MIDILOG (MIDI / Analog) channels and full analog mixing capabilities. The controller offers 76 MIDI controls including 36 knobs, 7 faders, and 33 buttons. The integrated soundcard is user configurable with 4x4 (DVS/2-deck) or 8x2 (4-deck) capabilities. The mixer offers RCA inputs for each of the four channels and channels 2 and 3 are switchable between line and phono inputs. The master output offers XLR and RCA outputs, while the booth output is offered on RCA. Each of the four channels and the two microphone input channels include controls for gain and a 3-band EQ with highs, mids, and lows controls. The knobs on the front panel feature LEDs for easy viewing in low-light performance situations. Each side of the controller is switchable between two decks and offers pitch controls, pitch bend, four hot cue buttons, effects, loop, filter, play/pause, and a jog wheel. The crossfader offers adjustable curve controls, can be reversed or assigned, and is replaceable. The VMS5 ships with a 6V DC power adapter. -
- DSP D-Core Inside: Studio-quality audio engine + pro-stage microphone circuitry
- User-Configurable Soundcard: 4x4 (DVS/2-Deck) or 8x2 (4-Deck)
- Bundled with Virtual DJ LE Software
- Gain and 3-band EQ on each channel
- XLR and RCA main outputs
- Separate RCA booth output
- MIDI Controller with 4 USB / Analog selectable MIDILOG (MIDI & Analog) channels
- 76x MIDI Controls: 36x MIDI Knobs, 7x MIDI Faders, and 33x MIDI Buttons
- All audio control faders, knobs, switches, and buttons smoothed, eliminating popping, wiper noise, and zipper noise
- On/Off soft startup and turnoff
- 2x phono/line selectable analog channels
- Two microphone channels with illuminated on/off switches and gain/treble/mid/bass EQs
- On/off cueing on each MIDILOG channel
- Split cueing headphones with rotary mix control
- Illuminated rubber knobs for ease of use in dark environments
- Solid 1.6mm-thick faceplate for extra durability
- Panel-mounted rotary knobs
- Full analog mixer operation if the computer crashes or with external power supply
- Innofader replaceable crossfader compatible (sold separately)
- Crossfader curve control
- Crossfader assign and reverse
- User-replaceable channel faders
- 12-position stereo master-output VU meter
UPC: 819730017666 In the Box American Audio VMS5 - 6-Channel MIDI Controller / Analog Mixer Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American Audio VMS5 - 6-Channel MIDI Controller Analog Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican Audio VMS5 Specs | Connectors | Main Out: 2 x XLR, 2 x RCA
Booth Out: 2 x RCA
Channel 1 (Line In): 2 x RCA
Channel 2 (Line/Phono In): 2 x RCA
Channel 3 (Line/Phono In): 2 x RCA
Channel 4 (Line In): 2 x RCA
Grounding Post: 2
Mic 1 & 2 In: 2 x Combo XLR/1/4" / 6.35 mm
Q-Start: 2 x 1/8" / 3.5 mm
Power: 6 VDC
USB: Type-B | | Controls | Knobs: 36
Faders: 7
Buttons: 33 | | EQ Section | Channels: 3-Band (Hi, Mid, Low)
Mic: 3-Band (Hi, Mid, Low) | | Crossfader | Replaceable (compatible with Innofader) | | Meter | 12-segment stereo master-output VU meter | | Dimension (L x W x H) | 19.0 x 12.8 x 1.5" / 482 x 324 x 38 mm | | Weight | 13.0 lb / 5.9 kg | | | | Package Weight | 19.15 lb | | Box Dimensions (LxWxH) | 23.3 x 17.4 x 8.2" |
