User Manual for American Audio WU-419VZ 4-Channel UHF Wireless Microphone System Click to enlarge the picture
Contents of the user manual for the American Audio WU-419VZ 4-Channel UHF Wireless
- Product category: Wireless Systems American Audio
- Brand: American Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American Audio Wireless Systems
 |
User manual for the American Audio WU-419VZ 4-Channel UHF Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American Audio product will considerably shorten its lifespan!
|

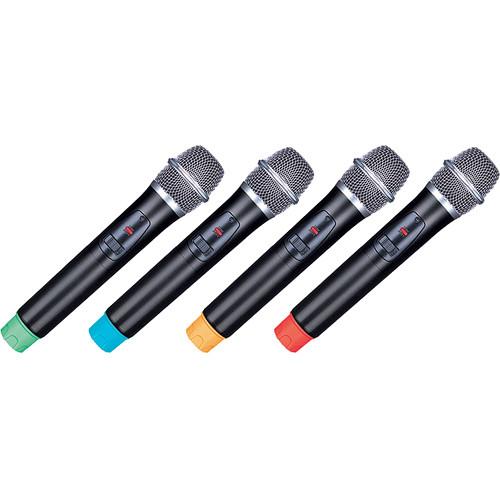

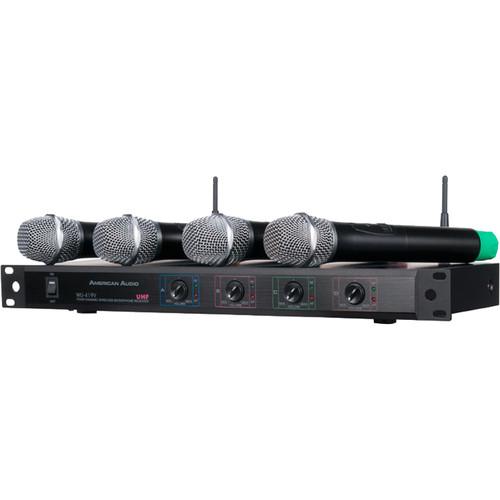

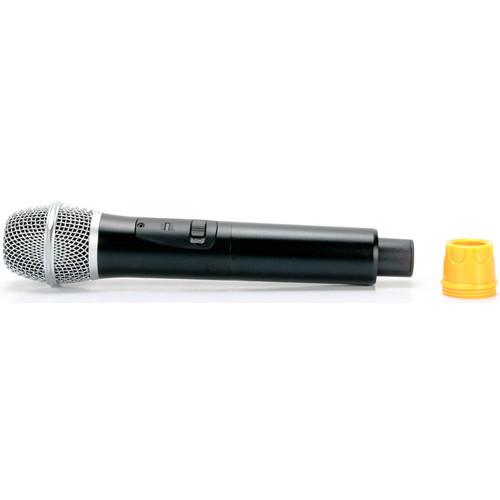

Product description Designed for use in small PAs, karaoke scenarios, schools, and houses of worship, the American Audio WU-419VZ is a UHF wireless microphone system comprising of four handheld wireless microphones and one rackable receiver. Four colored rings are also on hand to individuate each microphone. Each microphone is battery-powered, relying on two AA batteries. These batteries can be purchased separately.

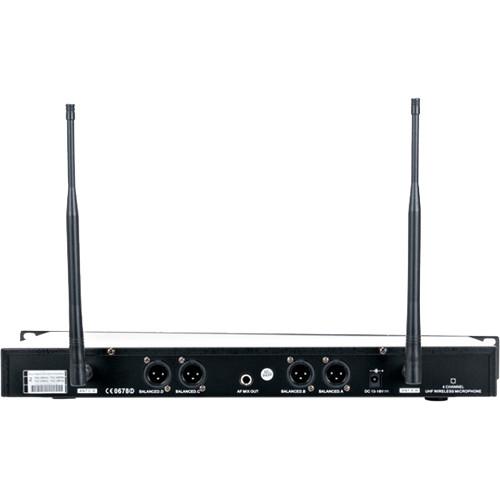

The wireless system has a range of 300', and transmits on four UHF bands (555.8, 551.4, 511.3, and 510 MHz). The receiver has four XLR outputs for the microphones and four individual volume knobs. Two removable antennae are included, as is a power cord. UPC: 818651025187 In the Box American Audio WU-419VZ 4-Channel UHF Wireless Microphone System 4 x Handheld Wireless Microphones 4 x Colored Rings for Microphones 4-Channel UHF Receiver 2 x Detachable UHF Antennas Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American Audio WU-419VZ 4-Channel UHF Wireless Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican Audio WU-419VZ Specs | Receiver Output | 4 x XLR Mic Outputs
1 x 1/4" Mixed Output | | Wireless Range | 300.0' / 91.4 m | | Dynamic Range | > 95 dB | | Total Harmonic Distortion | < 0.5% | | Signal to Noise Ratio | > 98 dB | | Frequency Response | 40 Hz to Approximately 18 Hz (3 dB) | | Audio Output Level | 0 to 400 mV (Balanced: 0 to 2 V) | | Power | 10 mW | | UHF | 4 Frequencies: 555.8, 551.4, 511.3, and 510.0 MHz | | Battery Life (approx.) | 6 to 10 Hours, Full Charge, 2 AA Batteries per Microphone (Batteries Available Separately) | | Rackmount Space | Receiver: 1 RU | | Dimensions (L x W x H) | Receiver: 19.0 x 10.4 x 1.9" / 482.0 x 260.0 x 49.0 mm | | Weight | Receiver: 4.3 lb / 1.9 kg |
