American DJ 12P HEX IP Heavy-Duty

Search your instruction manual in PDF to download

User Manual for American DJ 12P HEX IP Heavy-Duty RGBAW UV LED Wash Light

Click to enlarge the picture
American DJ 12P HEX IP Heavy-Duty RGBAW UV LED Wash Light Contents of the user manual for the American DJ 12P HEX IP Heavy-Duty
  • Product category: DJ & Effect Lights American DJ
  • Brand: American DJ
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for American DJ DJ & Effect Lights

American DJ 12P HEX IP Heavy-Duty RGBAW UV LED Wash Light American DJ 12P HEX IP Heavy-Duty RGBAW UV LED Wash Light American DJ 12P HEX IP Heavy-Duty RGBAW UV LED Wash Light American DJ 12P HEX IP Heavy-Duty RGBAW UV LED Wash Light American DJ 12P HEX IP Heavy-Duty RGBAW UV LED Wash Light American DJ 12P HEX IP Heavy-Duty RGBAW UV LED Wash Light American DJ 12P HEX IP Heavy-Duty RGBAW UV LED Wash Light American DJ 12P HEX IP Heavy-Duty RGBAW UV LED Wash Light
User manual for the American DJ 12P HEX IP Heavy-Duty contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any American DJ product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!



Product description

  • "First Look" at the ADJ HEX IP Pars - Prolight + Sound 2018
  • Lighting Help - What Do The IP Rating Numbers Mean?
  • ADJ HEX IP Series - 7P HEX IP, 12P HEX IP & 18P HEX IP

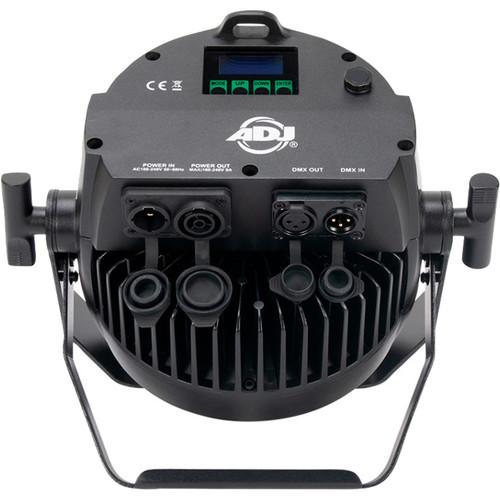

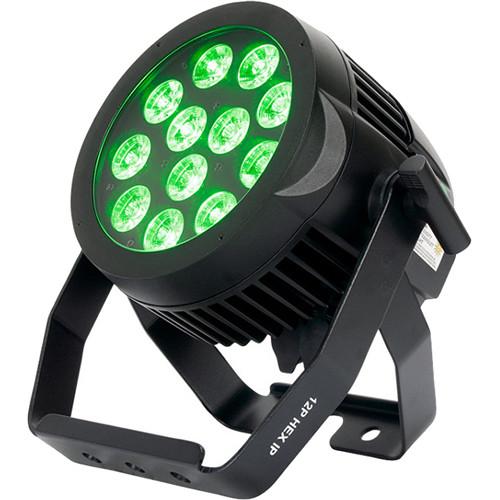

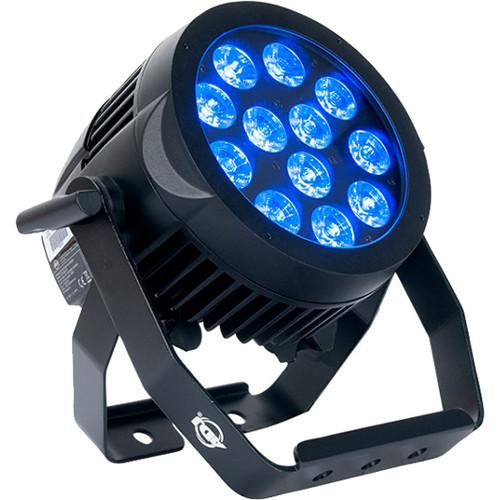

The American DJ 12P HEX IP is a heavy-duty RGBAW+UV (red, green, blue, amber, white + ultraviolet) LED PAR fixture designed to produce a wide variety of bright color washes with smooth color mixing for use in a variety of applications including touring, event production, and hire situations where equipment is continually transported, rigged, and derigged. The fixture is rated IP65, affording the unit to be safe from rain, snow, and dust.Equipped with twelve 12W (6-in-1) HEX LEDs that have a beam angle of 30°, it can be used to create wide washes of amber-infused white light at varying color temperatures, vibrant colors such as hot pinks, lime greens, and electric blues, or the classic UV glow for venue uplighting and heat-free illumination to stage performers. Featuring all-metal construction, the heavy-duty enclosure offers side-accessible power and DMX in/out sockets, allowing the 12P HEX IP to sit directly on the ground or inside a truss without the scissor yoke, ideal for architectural wall washing.Easy to operate and packed with creative options, the 12P HEX IP offers five modes of operation including Static Color, Sound-Active, RGBAW + UV Dimmer, Program, and DMX. Effects include color strobing and 0-100% electronic dimming. For full remote control of all features, the unit supports Remote Device Management (RDM) and can also be operated using the DMX mode with a choice of six channel options including 6, 6+, 9, 9+, and 12 channels. Other features include flicker-free operation (for video applications) and an auto-sensing power supply. You can also daisy-chain power for up to 12 units at 120V or 24 units at 240V. The fixture ships with a IP-rated power cord and a scissor yoke that can be used to create a variable-angle floor stand or for conventional mounting.
    • Outdoor rated (IP65)
    • 12W HEX (6-in-1) RGBAW+UV LEDs
    • 63 color macros
    • powerCON True 1 IP-rated in/out power connections
    • Remote Device Management (RDM)
In the Box American DJ 12P HEX IP Heavy-Duty RGBAW+UV LED Wash Light (IP65)
  • Power Cord
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the American DJ 12P HEX IP Heavy-Duty RGBAW UV LED Wash Light in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    American DJ 12P Hex IP Specs

    Light Source 12 x 12 W RGBAW+UV LEDs (red, green, blue, amber, white + ultraviolet)
    Life Expectancy: 50,000 hours
    Beam Angle 30°
    Operational Modes Static color
    RGBAW and UV dimmer
    Program
    Sound active
    DMX control
    Effects LED pulse and strobe
    Macros 63 x Built-in color macros
    Dimmer Curves Selectable Dim Curves: Standard, stage, TV, architectural, and theater
    Flicker Free Operation Yes
    Electronic Dimming 0 to 100%
    DMX Channel Modes 6, 6+, 9, 9+, 10, or 12
    DMX Connectors 3-pin XLR, in/out
    Remote Control Compatibility Wired digital communication network
    Supports RDM (Remote Device Management)
    Display/Controls Digital DMX display with 4-button menu for easy navigation
    Power Linking 12 units at 120 V
    24 units at 240 V
    Input Voltage 100 to 240 VAC, 50/60 Hz (auto-sensing)
    Maximum Power Draw 104.5 W
    Mounting Scissor yoke and safety eye
    Dimensions (L x W x H) 11.8 x 7.9 x 10.5" / 29.9 x 19.9 x 26.7 cm
    Weight 10.5 lb / 4.8 kg
    Package Weight 13.015 lb
    Box Dimensions (LxWxH) 14.7 x 14.0 x 13.3"
