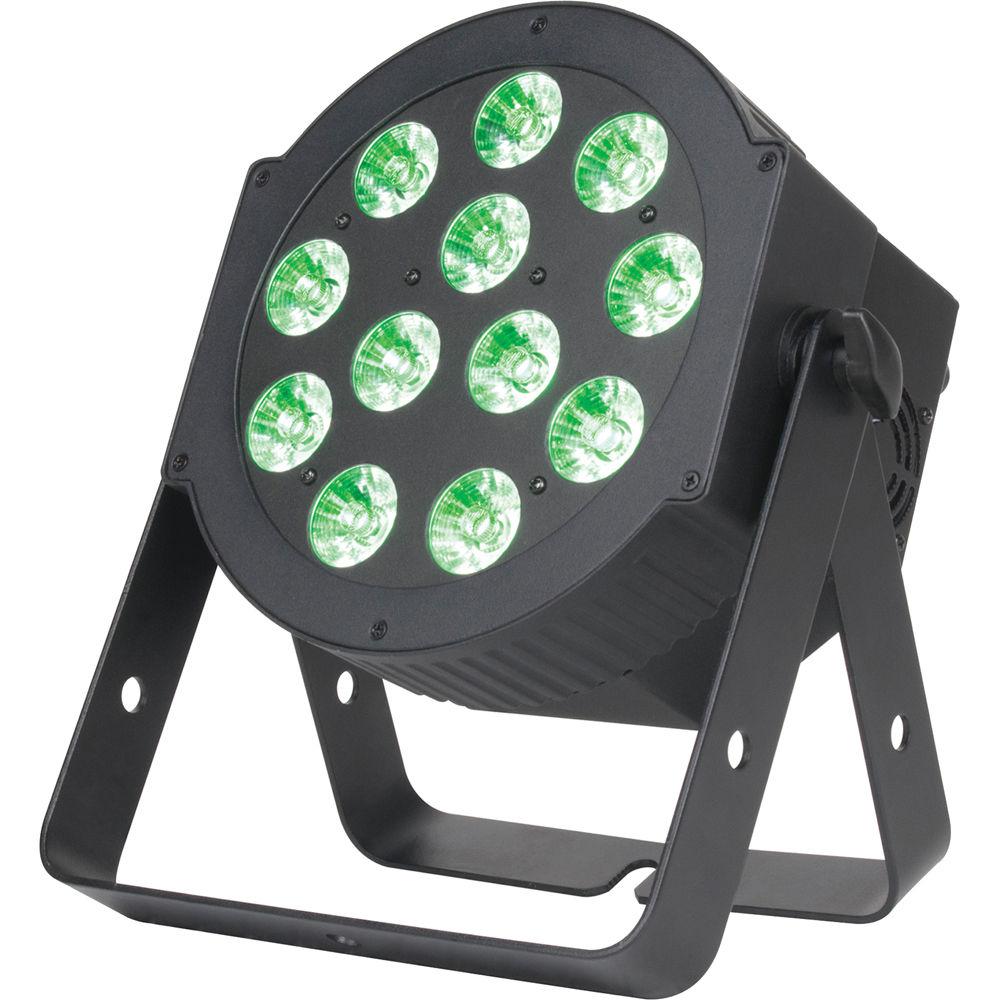

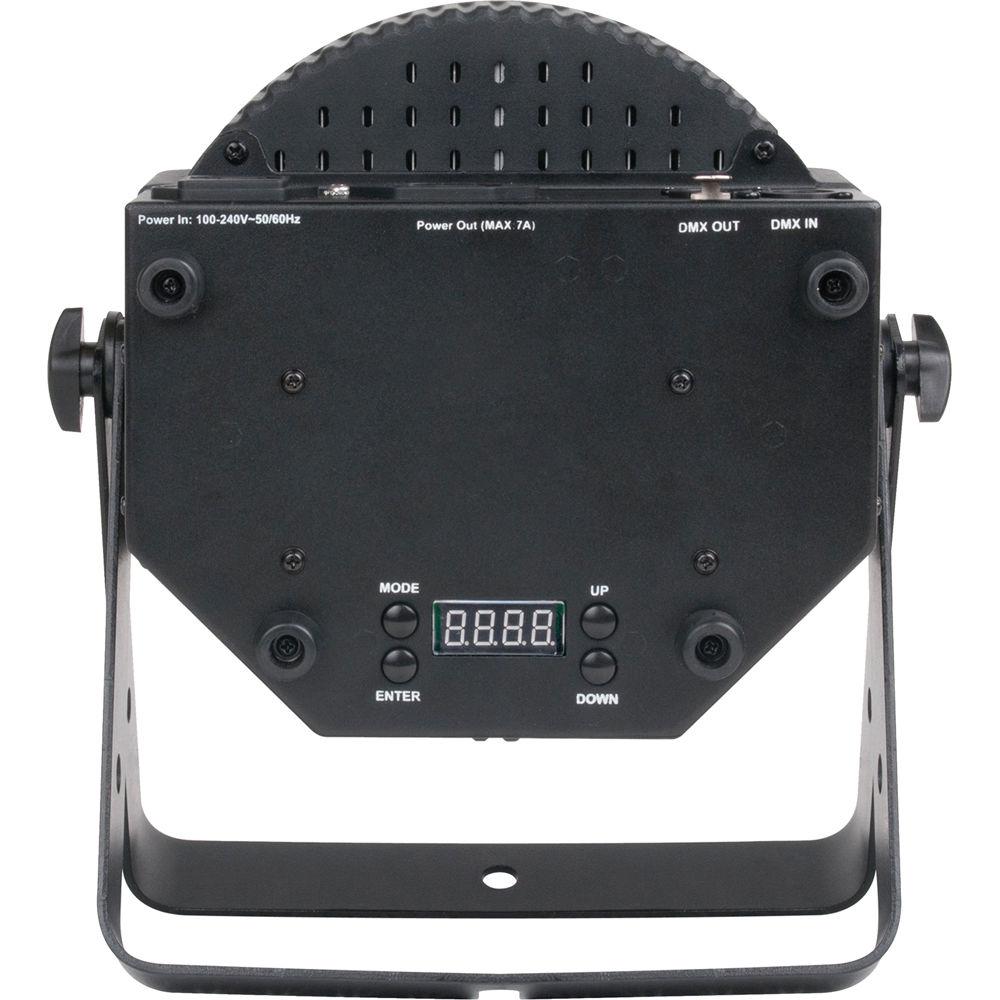

Product description The black 12P HEX from American DJ is a LED Par fixture with twelve 12-Watt, six-in-one HEX LEDs. It can be used to produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs for lighting stages, clubs, uplighting venues, and more.The 12P HEX's professional features include: 4 DMX modes (6, 7, 8, and 12 channel), 5 operational modes, 5 dimming curves, a flicker free operation, and a 4-button DMX menu with digital display. You can daisy-chain up to 6 units (110V) or 13 units (240V) together via the fixtures built-in IEC in/out power connectors.In addition, the 12P HEX is compatible with the Dotz Par RF, easy-to-use, wireless RF remote (sold separately). It can also be operated via a DMX controller or the unit's built-in programs. - LED pulse and strobe effect
- 5 Operational Modes: Static color mode, RGBAW & UV dimmer mode, program mode, sound active mode, and DMX controlled
- Dual yoke allows fixture to be hung or set on the ground

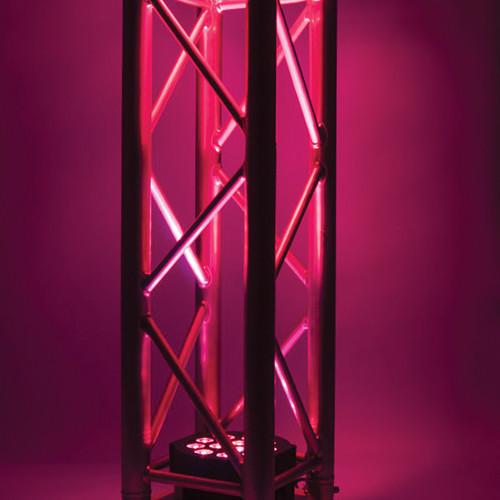

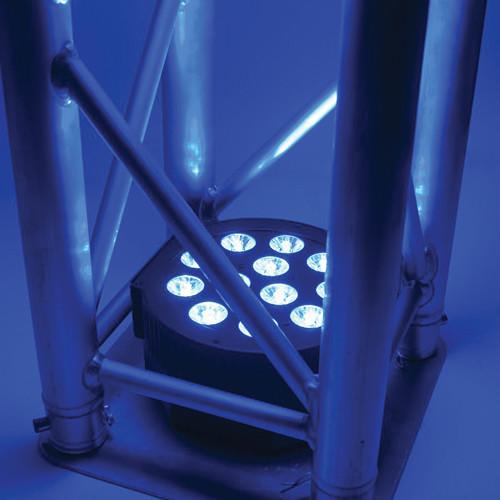

- Great as an architectural wall wash or for performance stages where traditional stage lighting emit an uncomfortable amount of heat onto performers

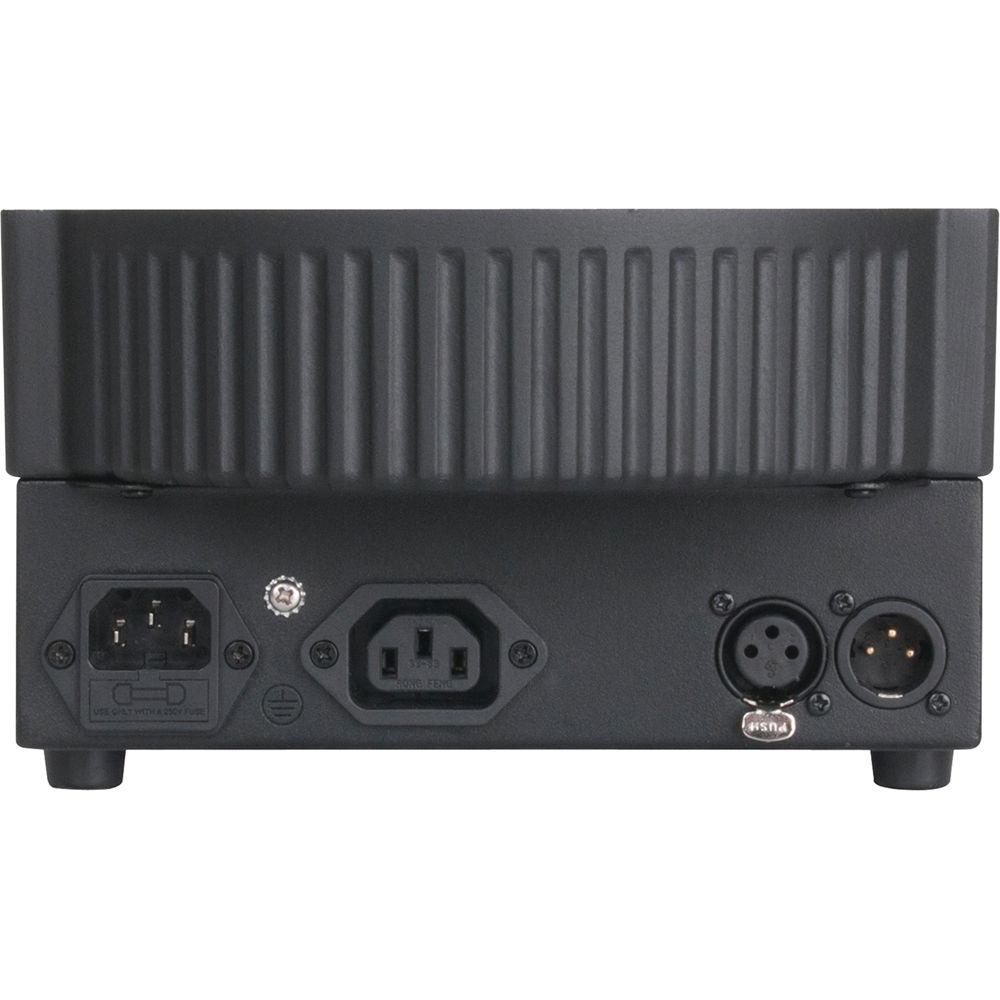

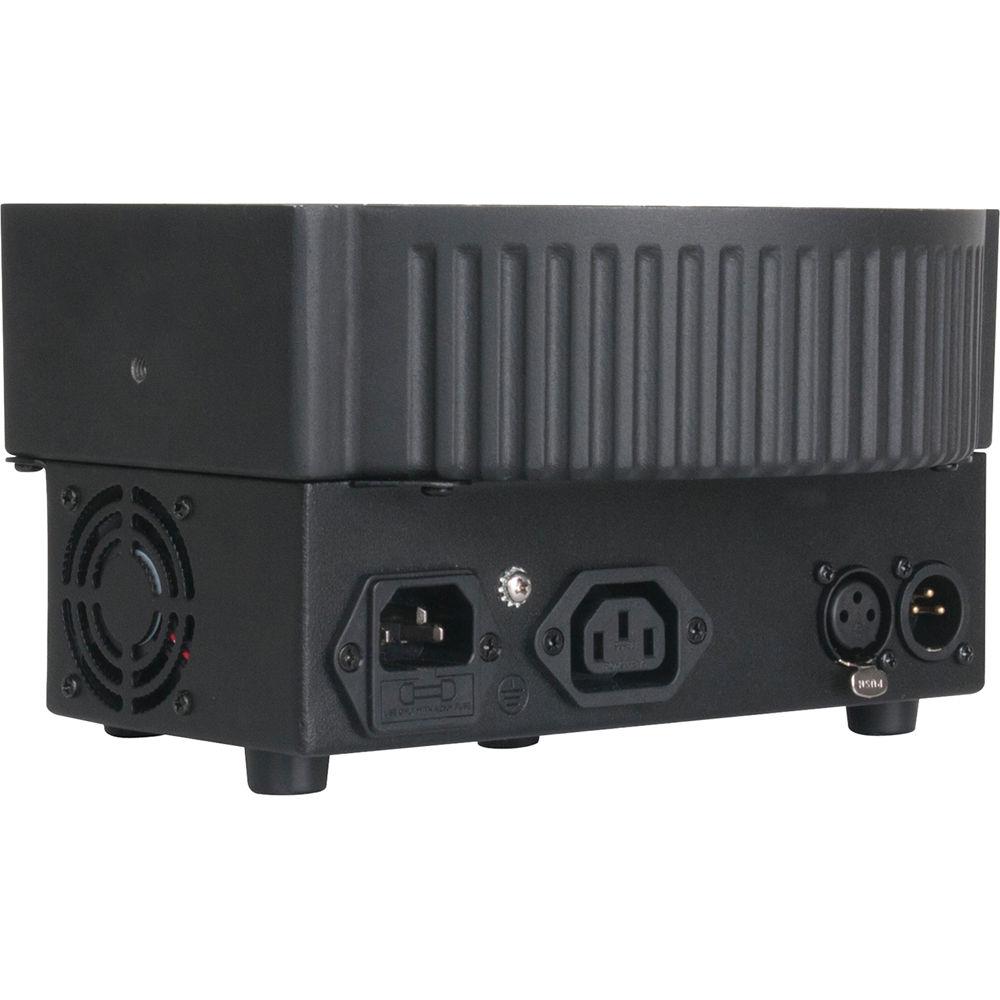

- Data linkable via 3-pin XLR cables
- Power linkable via IEC power cables
UPC: 819730013866 In the Box American DJ 12P Hex LED Par (Black) AC Power Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ 12P Hex LED Par in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ 12P Hex Specs | LEDs | 12x red, green, blue, amber, white and UV LED pixels | | DMX Channel Modes | 6, 7, 8 and 12 channel | | Operational Modes | Static color mode, RGBAW & UV dimmer mode, program mode, sound active mode, and DMX controlled | | Built-In Programs | 7 | | Macros | 63 built-in color macros | | Flicker Free Operation | Yes (no flickering on camera) | | Dimmer Curves | 5 selectable (standard, stage, TV, architectural, and theater) | | Effect | LED pulse and strobe | | Electronic Dimming | 0 to 100% | | Beam Angle | 30° | | Display | 4 button DMX digital display on rear panel | | Remote Control Compatibility | Dotz Par RF wireless remote control (sold separately) | | Yoke | Dual yoke | | Data Linkable | Via 3-pin XLR cables | | Power Linking | Via IEC power cables (6x 12P Hex's Max @ 110 V, 13x 12P Hex's Max @ 240 V) | | Light Source | 12x 12 W RGBAW + UV LEDs (rated at approximately 50,000 hours) | | Power Draw | 150 W total (all LED's @ full on) | | Multi Voltage | AC 110-250 V, 50/60 Hz (IEC power in/out) | | Dimensions (L x W x H) | 11.7 x 9.8 x 5.35" (298 x 249 x 136 mm) | | Weight | 8.6 lb (3.9 kg) | | | | Package Weight | 10.5 lb | | Box Dimensions (LxWxH) | 14.016 x 11.653 x 7.244" |
