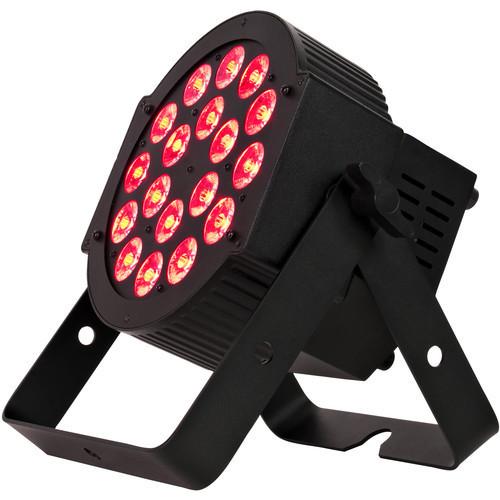

User Manual for American DJ 18P Hex LED Fixture Click to enlarge the picture
Contents of the user manual for the American DJ 18P Hex LED Fixture
- Product category: DJ & Effect Lights American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ DJ & Effect Lights
|
User manual for the American DJ 18P Hex LED Fixture contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|
Product description Equipped with 18 x 12W, 6-in-1 HEX LEDs, this 18P Hex LED Fixture from American DJ is suitable for lighting stages and uplighting large venues. With a 25° beam angle, it produces wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white, and UV LED.
This LED fixture is compatible with the Dotz Par wireless RF remote (sold separately). It can also be operated via a DMX controller or the unit's built-in programs. This fixture comes with a metal gel frame that can be used with a beam diffuser (sold separately) to soften the beam. - powerCON in and out connections
- Heavy-duty metal construction with gel frame
- Five operational modes and four DMX channel modes
- 4-button digital display for easy navigation
- Electronic dimming 0 - 100%
- Scissor yoke to be hung on the wall or set on the ground
- Compatible with Dotz Par RF (sold separately)
UPC: 819730019950 In the Box American DJ 18P Hex LED Fixture 3.3' powerCON Cable Gel Frame Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ 18P Hex LED Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ 18P Hex Specs | Beam Angle | 25° | | Light Source | 18 x 12 W Hex (RGBAW + UV) LEDs | | LED Life | 50,000 hours | | Refresh Rate | 3.6 kHz | | Operational Modes | Manual color, color fade, auto program, sound active, and DMX | | Power Input | powerCON in | | Power Passing Capability | powerCON out (daisy chain up to 4 units at 120 V, 8 units at 230 V) | | Control | 3-pin DMX | | DMX Channel Modes | 6, 7, 8, and 12 | | Input Voltage | 100 to 240 V, 50/60 Hz (auto sensing) | | Certifications | IP30: Dry area, no liquids | | Dimensions | 12 x 6.9 x 13" (304 x 174.8 x 330.4 mm) | | Weight | 12.9 lb (5.9 kg) | | | | Package Weight | 15.17 lb | | Box Dimensions (LxWxH) | 15.5 x 14.2 x 9.2" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 79 owners. Add your rating and experience with the product.
