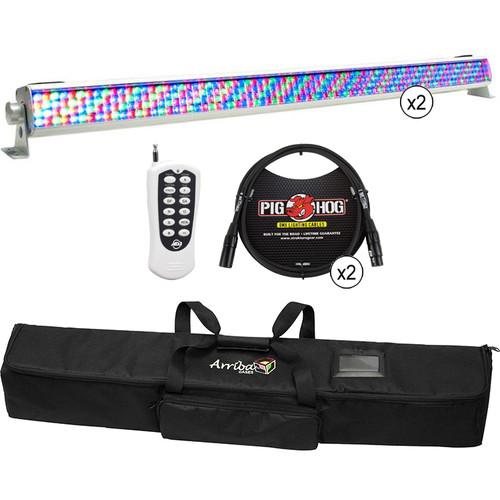

Product description The white American DJ Dual Mega Bar RGBA with Remote, Cable and Bag Kit from B&H includes two American DJ 42" Mega Bar RGBA fixtures, a black Arriba AC-425 DJ lighting case, an American DJ RFC wireless remote control, and two 5' Pig Hog 3-pin XLR DMX cables. It can be used for RGBA (Red, Green, Blue, and Amber) color mixing for stage, theater, or wall-washing applications in bars, restaurants, or clubs.Each Mega Bar RGBA features a total of 320 LEDs, with 64 red, 96 green, 96 blue, and 64 amber diodes. It can be operated by the ADJ RFC wireless remote to control features such as blackout, built-in programs, flash, DMX addressing, and RGB color change.Furthermore, the lighting case is a flexible, soft case that comes with 2 dividers and is suitable for mobile applications. It has 2 LED bar tubes and has skid feet at the bottom. There is an exterior accessory pocket, double-zipper pull closure, dual top-handle straps, and a clear ID window for your business card.Finally, the kit includes two Pig Hog 3-pin XLR DMX cables that are 5' in length and are overbuilt to stand up to the most grueling tour conditions. - 2 x American DJ Mega Bar RGBA (Limited-Edition White) The limited-edition white Mega Bar RGBA from American DJ is a compact, 42” (1m) linear bar fixture that offers the flexibility of RGBA (Red, Green, Blue, and Amber) color mixing for stage or wall washing. The fixture has a total of 320 LEDs, with 64 red, 96 green, 96 blue, and 64 amber diodes.
The Mega Bar RGBA can be operated by the ADJ RFC wireless remote (sold separately) to control what would normally require a DMX controller or adjustments done manually on the rear panel. By aiming the wireless remote at the unit and you can control features such as blackout, built-in programs, flash, DMX addressing, and RGB color change. You can also control this fixture with a DMX Controller, Sound Active mode, or in Auto mode. This fixture uses LEDs rated at 50,000 hours with a maximum power draw of 32W. The DMX controller addressing may also be changed by the unit’s 4-button LED display. There is no duty cycle on the Mega Bar RGBA, so it can run all night, plus you can daisy-chain the power from one unit to the next with the built-in IEC power inputs/outputs. The Mega Bar RGBA ships with mounting brackets and a power cord. Features - 42" (1m) indoor linear fixture with 320 x 10mm R/G/B/A LEDs (64 Red, 96 Green, 96 Blue, and 64 Amber)
- 7 DMX Channel Modes: 4, 6, 7, 9, 10, 18, or 34 channels
- 6 Operational Modes: Manual Color mode, Static Color Change mode, Auto (Program Run) mode, Sound Active mode, RGBA Manual Control mode, and DMX-512 mode
- Variable RGBA color mixing offers a seemingly unlimited color palette, suitable for stage or wall washing
- LED pulse and strobe effect
- Linkable via 3-pin XLR cable
- 4-button LED display on rear panel
- IEC AC outlet on rear to daisy chain power (up to 20 units)
- Compatible with ADJ RFC wireless remote control (sold separately)
- Includes mounting brackets to mount on a wall or set on the ground
- Magnet system on end-caps to connect multiple bars together
- Long-life LEDs (Rated at 50,000 hours)
- Run all night, no duty cycle
- Auto-Sensing Voltage: This fixture contains an automatic voltage switch, which can auto-sense the voltage when it is plugged into the power source
UPC: 819730019431 - Arriba Cases AC-425 DJ Lighting Case (Black) Primarily designed to protect BAND PIX &COLOR STRIP Type Lighting Fixtures, the black AC-425 Mobile DJ Lighting Case from Arriba Cases is used to house lighting fixtures from Chauvet, ADJ, Blizzard, and various other brands of Lighting fixtures. This flexible, soft case comes with 2 dividers that can be used to create 3 compartments on the inside. Suitable for mobile applications, it has 2 LED bar tubes and has skid feet at the bottom. This case features an exterior accessory pocket, double zipper pull closure, dual top handle straps with connector, and a clear ID window for your business card.
- Comes with 2 dividers that can be used to set up 3 compartments
- Suitable for all brands of lighting fixtures used in DJ, working band, and karaoke rig setups
- Great for mobile DJs, Karaoke rigs and working bands
- Extra wide mouth design allows gear to be extracted quickly
- Clear window to see into the bag, or for storing ID
UPC: 859459001737 - American DJ ADJ RFC Wireless Remote Control The ADJ RFC Wireless Remote Control from American DJ is an RF (radio frequency) wireless remote control designed for use with various LED fixtures. The ADJ RFC is capable of turning compatible lights on or off or blacking out, automatically running through built-in programs, program selection, Strobe Effect and controlling the speed of the Auto Run. It can also adjust the flash rate, adjust RGB colors and activate the Sound Active mode. (See specs for a complete compatibility list)
- Black Out: Turns fixture on/off
- Auto Run: Automatically runs through built-in programs
- Program Selection: Access unit's built-in programs
- Speed: Controls speed of Auto Run
- Sound Active: Activates Sound Active mode
- RGB Buttons: Adjusts RGB colors with the + and - buttons
- Buttons: Adjusts flash rate, speed of the Auto Run, and program selection
UPC: 819730010124 - 2 x Pig Hog 3-Pin XLR DMX Cable (5') Featuring extra-thick 8 mm wire, performance quality connectors, and tension-resistant stress relief, this 5' Pig Hog DMX Cable from Strukture is overbuilt precisely to stand up to the most grueling tour conditions imaginable. Consequently, Pig Hog cables have "no questions" lifetime guarantee. UPC: 672485347156
In the Box - 2 x Mega Bar RGBA (Limited-Edition White) wfyfxbzwua
- Power Cord (5.9')
- Mounting Brackets
- Limited 2-Year Warranty
- Arriba Cases - AC-425 DJ Lighting Case (Black)
- ADJ RFC Wireless Remote Control
- 2 x Pig Hog - 3-Pin XLR DMX Cable (5')
Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ 2 x White Mega Bar RGBA with Remote, Cable and Bag Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2 x American DJ Mega Bar RGBA (Limited-Edition White)
| Light Source | 320 x 10mm R/G/B/A LEDs
64 x Red, 96 x Green, 96 x Blue, 64 x Amber | | Life Expectancy | Up to 50,000 hours | | Illuminance | 650 lux at 6.56' (2 m)
275 lux at 13.12' (4 m) | | Beam Angle | 30° | | Colors | RGBA color mixing
48 x color macros | | Dimming | Electronic: 0 to 100% | | DMX Connectors | Input: XLR 3-pin
Output: XLR 3-pin | | DMX Channel Modes | 7 x Channel Modes: 4, 6, 7, 9, 10, 18, or 34 channels | | Input Voltage | 100 to 240 VAC, 50/60 Hz | | Power Connectors | Input: IEC
Output: IEC | | Power Cord Daisy Chain | 20 x fixtures maximum | | Power Draw | 32 W maximum | | Fuse | 1 A | | Working Position | Any safe working position | | Dimensions (L x W x H) | 41.75 x 3.00 x 5.75" (106 x 7.3 x 14.5 cm) | | Weight | 6 lb (2.7 kg) | | | | Box Dimensions (LxWxH) | 43.0 x 6.5 x 5.0" | - Arriba Cases AC-425 DJ Lighting Case (Black)
| | | Closure Type | Zipper | | Carry and Transport Options | 2 x Connecting Handstrap | | Exterior Dimensions (W x H x D) | 42.5 x 6.3 x 6" / 10.8 x 15.9 x 15.2 cm | | | | Box Dimensions (LxWxH) | 21.6 x 8.3 x 4.9" | - American DJ ADJ RFC Wireless Remote Control
| Compatible With | Jelly Go PAR64 RGBA
Jelly PAR Profile System
Mega Bar RGBA
Mega Go Bar 50 RGBA
Mega Go Flood BAR
Mega Go Flood PAR
Mega Go Flood PAR HO
Mega GO PAR64 RGBA
Mega PAR Profile System
Ultra Bar 6
Ultra BAr 9
Ultra Bar 12
Ultra Go PAR7X
Ultra Hex PAR 3
WiFly Par QA5
WiFly Par QA5 WH
WiFly Bar QA5
WiFly Bar RGBA
WiFly Go Flood Par
WiFly QA5 IP | | | | Box Dimensions (LxWxH) | 5.8 x 3.0 x 0.85" | - 2 x Pig Hog 3-Pin XLR DMX Cable (5')
| | | Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female | | Cable Length | 5' / 1.52 m | | | | Box Dimensions (LxWxH) | 8.5 x 7.5 x 0.75" |
