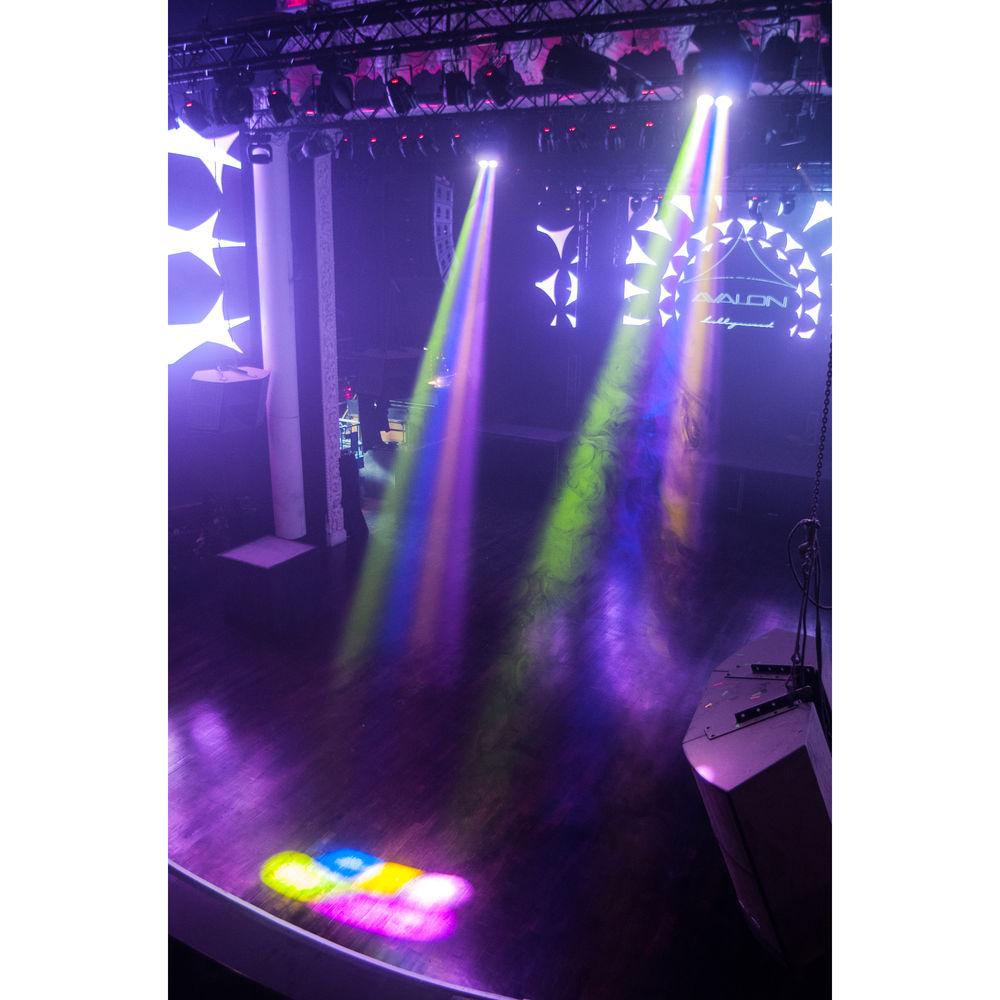

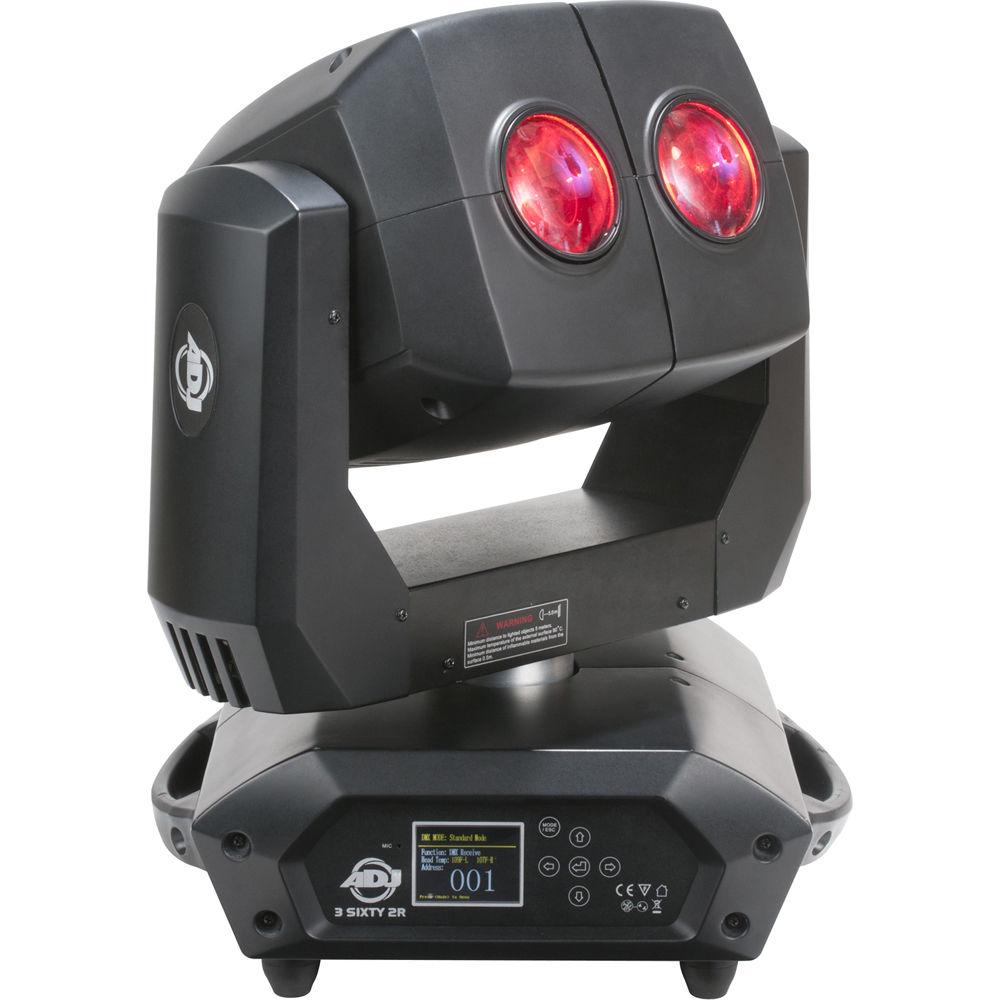

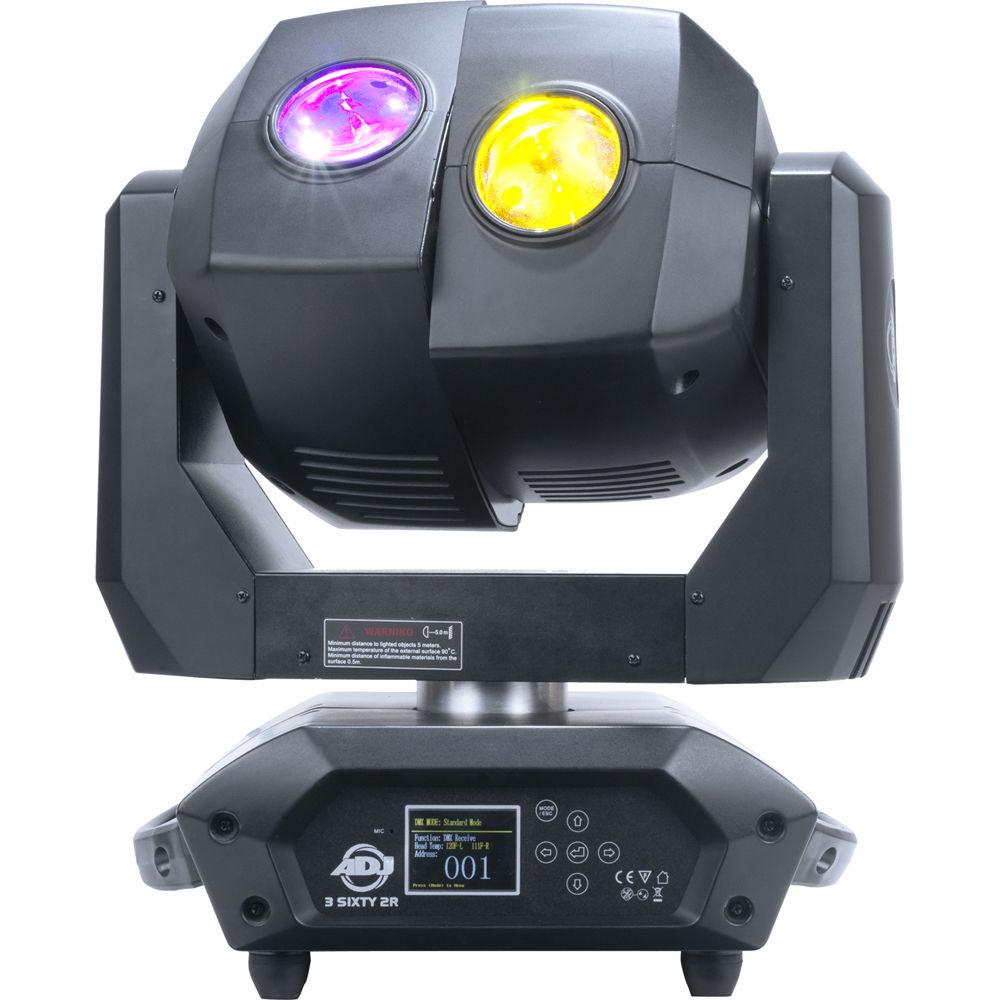

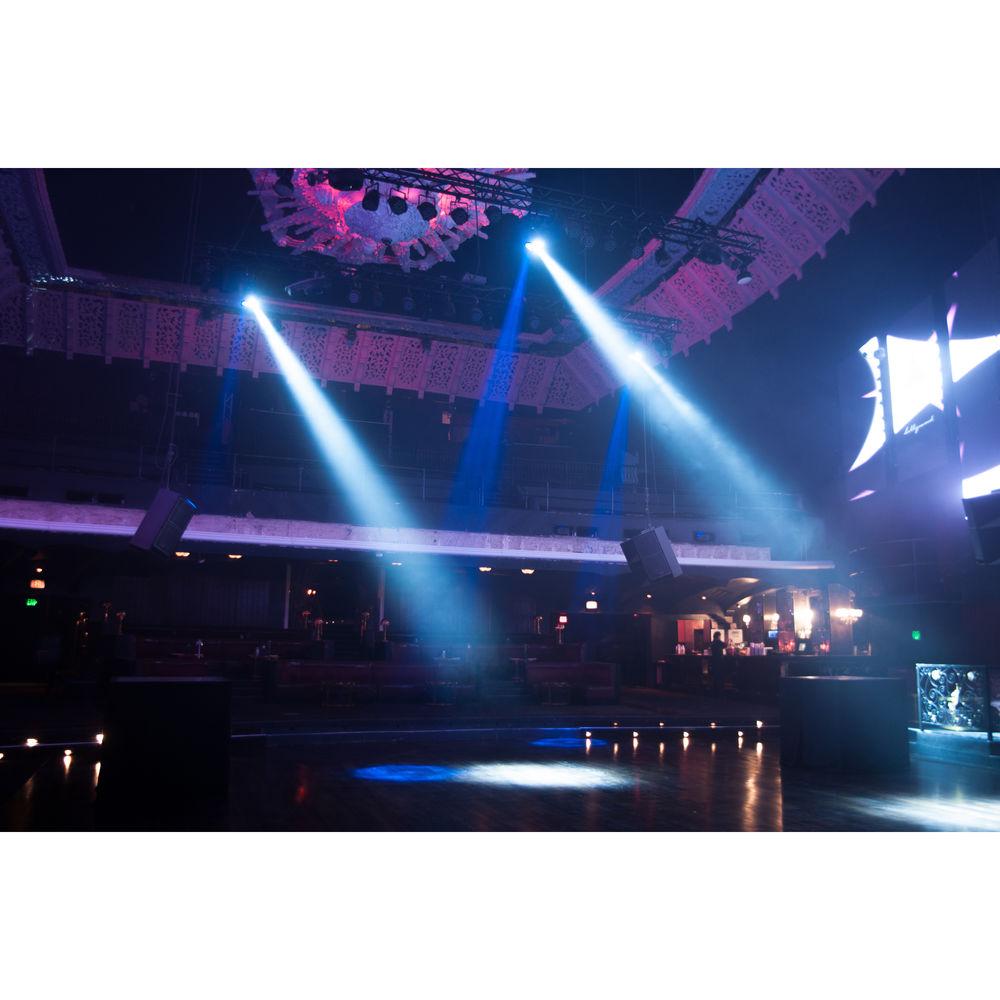

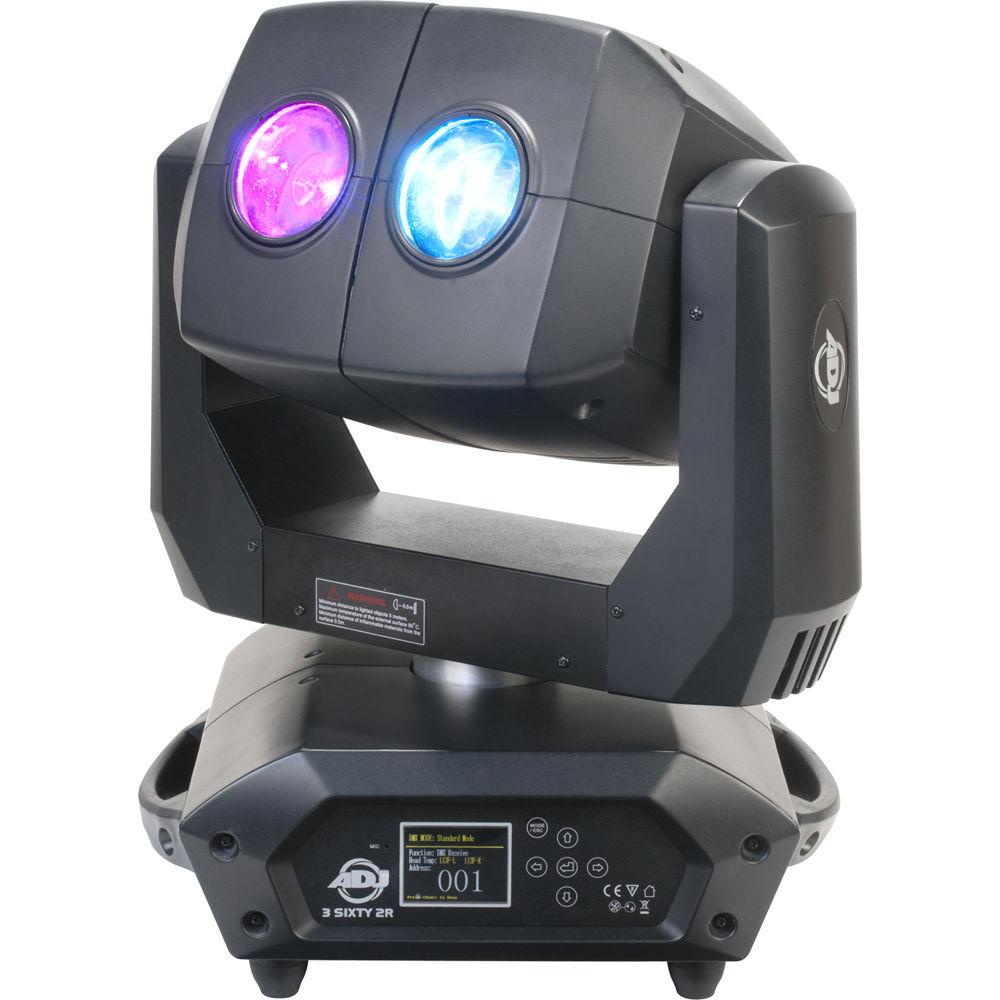

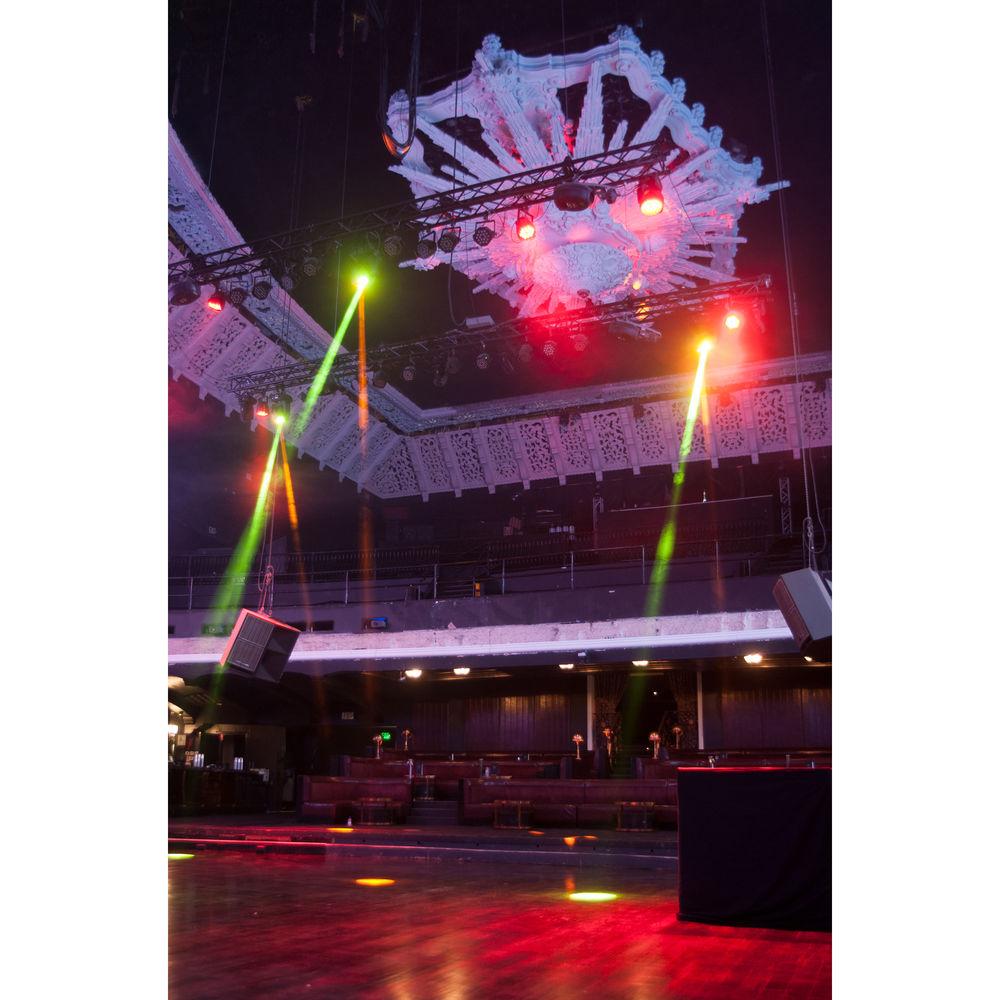

Product description The American DJ 3 Sixty 2R Dual Moving Head Light is designed for lighting installations and live performance applications such as at parties, bars, small venues, and clubs among others. The unit is powered by the Philips Platinum 2R, 135W fan cooled discharge lamp which is rated for 6,000 hours of lamp life.
The light provides a 4° beam angle and 13 colors plus white. It includes 14 gobos plus spot, as well as an 8-facet prism and frost filter for wash effects. A shutter enables pulse effect and random strobe slow to fast. For movement, the micro stepper motors enable 360° continuous pan, tilt, and rotation with auto X-Y position. The colors, gobos, and movement of each head are independent for a wide range of different combinations and effects.

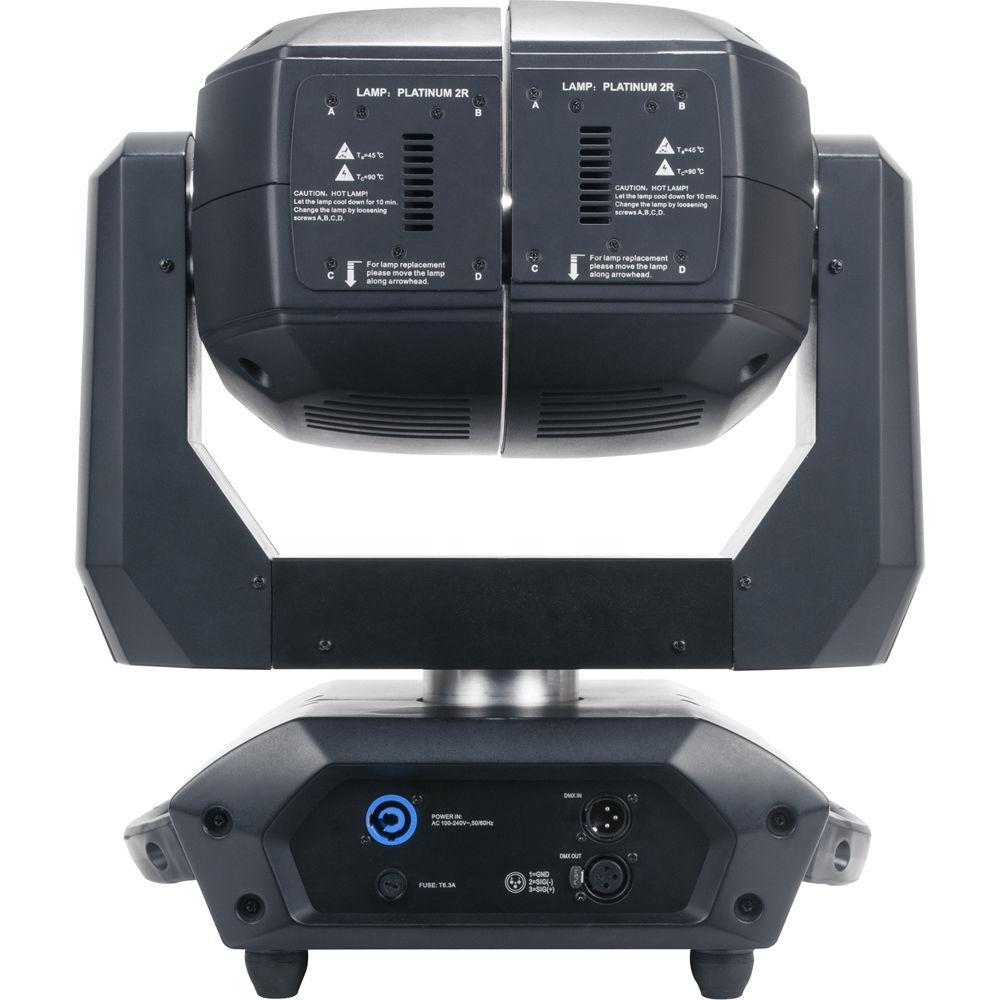

For controls the unit features a full color LCD with a 6-button interface and built-in programs. It can operate in 3 different modes: master/slave, sound activation using the built-in ambient microphone, and DMX control. For DMX control, the unit has 3 modes: standard, basic, and extended on DMX channels 21, 24, and 32. The back of the unit includes a DMX in and a DMX out cable connector for linking multiple units together to form complex lighting displays. In the Box American DJ 3 Sixty 2R Dual Moving Head Light Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ 3 Sixty 2R Dual Moving Head Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ 3 Sixty 2R Specs | Light Source | Phillips MSD platinum 2R discharge lamps | | Power Rating | 135 W per lamp | | Color Temperature | 8,000° K | | Bulb Life | 6000 hour | | Lux | At 10 M: 50460 | | Movements | 360° continuous pan
Tilt
Rotate | | Colors | 13 plus white | | Gobos | 14 rotating fixed | | Operational Modes | DMX, master/slave, and sound active | | DMX | Channel modes: standard, basic, extended (21, 24, 32 ch) | | Display | Full color LCD with six buttons | | Prism | 8-facet | | Beam Angle | 4° | | Compliance | RDMX
RDM | | Connectors | 1x DMX XLR-3F
1x DMX XLR-3M | | IP Rating | IP20 | | Power Consumption | 400 W | | Power Requirements | 100 to 240 VAC at 50/60 Hz powercon in | | Dimensions (L x W x H) | 17.00 x 13.00 x 18.75" (428 x 326 x 473 mm) | | Weight | 45.0 lb (20.5 kg) |
