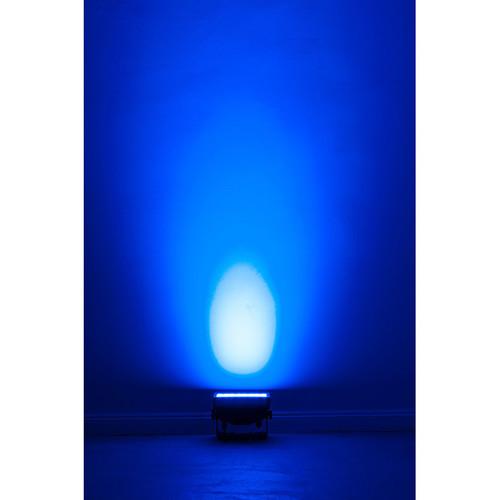

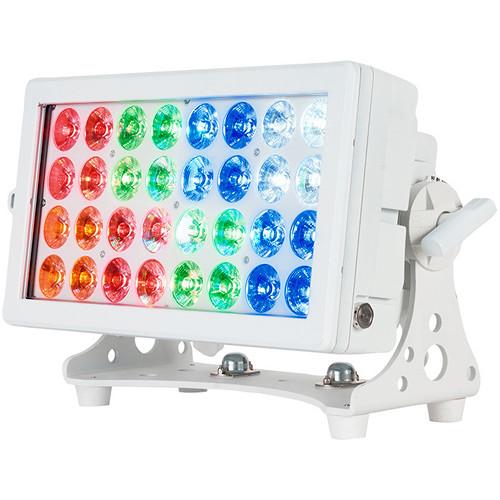

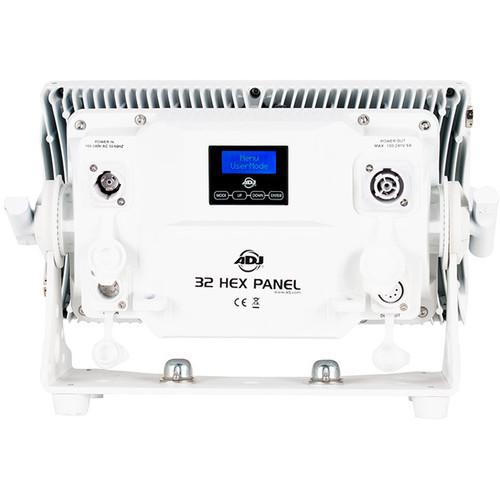

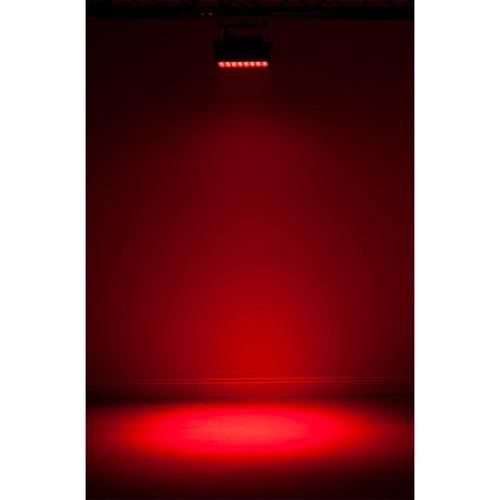

Product description The pearl American DJ 32 HEX Panel IP is an RGBAW+UV (red, green, blue, amber, white, ultraviolet) multifunctional wash / blinder / color strobe fixture designed to produce a wide variety of bright color washes with smooth color mixing for use in a variety of applications including touring, event production, and hire situations where equipment is continually transported, rigged, and derigged. The fixture is rated IP65, affording the unit to be safe from rain, snow, and dust.Equipped with thirty-two 12W (6-in-1) HEX LEDs that have a beam angle of 24°, it can be used to create wide washes of amber-infused white light at varying color temperatures, vibrant colors such as hot pinks, lime greens, and electric blues, or the classic UV glow for venue uplighting and heat-free illumination to stage performers. Featuring all-metal construction, the heavy-duty enclosure offers rear-accessible power and DMX in/out sockets with IP, allowing the 32 HEX IP to sit directly on the ground or mount to a truss. Additionally, the fixer includes a magnetic removable filter frame for softening the light and adjusting the dispersion.Easy to operate and packed with creative options, the fixture features 16-bit dimming for 0-100% smooth operation and five dimming curve modes. Effects include color strobe and eight individually controlled sections via Pixel Zone Control. For full remote control of all features, the unit supports Remote Device Management (RDM) and can also be operated using the DMX mode with multiple DMX channel modes. Other features include flicker-free operation and multiple settings for gamma brightness and LED refresh rate for film and video calibration. The 32 Hex Panel IP ships with an IP-rated power cord, a magnetic frost-filter frame, and a heavy-duty bracket that can be deployed for variable-angle floor operation or conventional mounting. -
- IP65 rated – protects from dust, sand, moisture, water
- All metal construction
- Includes heavy-duty bracket

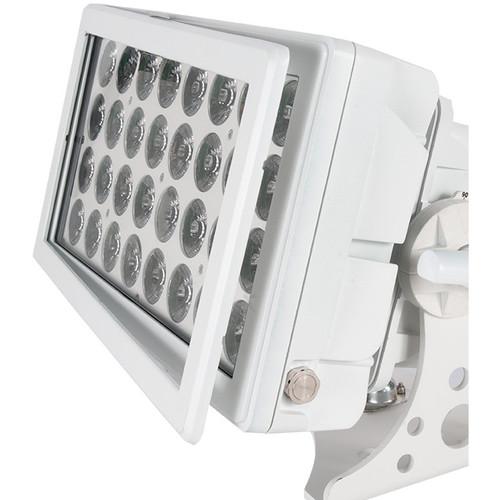

- Includes magnetic removable filter frame to add a diffusion filter
- Flicker free for film and broadcast
In the Box American DJ 32 HEX Panel IP - IP65 Rated Wash / Blinder / Color Strobe (Pearl) Power Cord Bracket Magnetic Diffusion Filter Frame Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ 32 HEX Panel IP - IP65 Rated Wash Blinder Color Strobe in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ 32 HEX Panel IP Specs | Light Source | 32 x 12 W RGBAW+UV LEDs (Red, Green, Blue, Amber, White, Ultraviolet)
Life Expectancy: 50,000 hours | | Beam Angle | 24° | | Pixel Operation | Pixel Zone Control: 8 Individually Controlled Sections | | Dimmer Curves | 5 | | Flicker Free Operation | Yes | | Gamma Adjustment | Multiple Settings | | Refresh Rate | LED: Multiple Settings | | Electronic Dimming | 0 to 100% | | DMX Channel Modes | Multiple Channels | | DMX Connectors | 5-Pin XLR, In/Out with IP Rubber Covers | | Remote Control Compatibility | Wired Digital Communication Network
Supports RDM (Remote Device Management) | | Display/Controls | OLED Touchscreen with Full Lettering | | Power | Input Voltage: 100 to 240 VAC, 50/60 Hz (Auto-Sensing)
Power Consumption: Not Specified by Manufacturer
Power Input/Output Connectors: Seetronic Powerkon IP65 (with Rubber Protective Covers over Connections) | | Dimensions (L x W x H) | 13.8 x 9.0 x 6.8" / 349.3 x 228.6 x 171.5 mm | | Weight | 24.3 lb / 11.0 kg |
