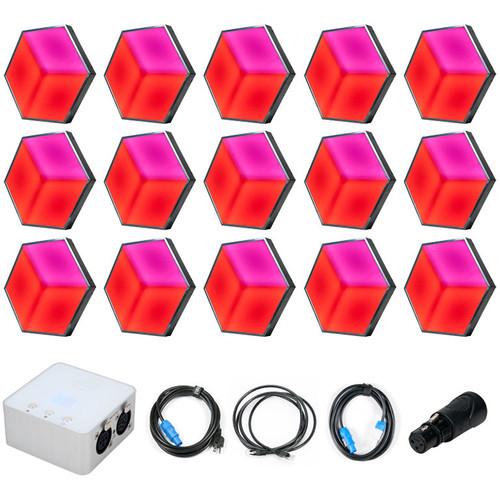

User Manual for American DJ 3D Vision Plus Sys 2 with 15 Vision Panels, MyDMX Software, and Cables Kit Click to enlarge the picture
Contents of the user manual for the American DJ 3D Vision Plus Sys
- Product category: DJ & Effect Lights American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ DJ & Effect Lights
|
User manual for the American DJ 3D Vision Plus Sys contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|
Product description The 3D Vision Plus Sys 2 Kit from American DJ is a package that includes fifteen 3D vision panels, myDMX control software, an MPC10 powerCON power cord, a PLC6 powerCON connector, and an ACRJ453PM XLR to RJ45 adapter (connects myDMX 2.1 to 3D Vision). It can be used to create visual effects for night clubs, bars, lounges, live stages, and mobile entertainers. In addition, the following accessories are sold separately: 3D Vision PL quick release panel lock to lock 3D Vision panels together, 3D Vision RB1 single panel rigging bar, and 3D Vision Encoder for 3D Vision, which is used to set the DMX address for each panel. - 3D Vision
- The 3D Vision panel is a hexagonal shaped LED panel with 3D visual effects when used in multiples. It is designed for nightclubs, lounges, bars, entertainment centers, stages, and mobile entertainers.
- MyDMX 2.1 Control Software
- DMX control software is designed to help make programming lightshows easier.
UPC: 818651025804 In the Box American DJ 3D Vision Plus Sys 2 with 15 Vision Panels, MyDMX Software, and Cables Kit 15 x 3D Vision Panels MyDMX 2.1 Control Software MPC10 powerCON Power Cord PLC6 powerCON Connector ACRJ453PM XLR to RJ45 Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ 3D Vision Plus Sys 2 with 15 Vision Panels, MyDMX Software, and Cables Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ 3D Vision Plus Specs | Light Source | 72 Pieces 3-in-1 RGB LEDs (Each Panel) | | Beam Angle | 180° | | Features & Functions | Hexagonal-Shaped LED panel Divided into Three Separate Sections for Three-Dimensional Appearance
Safety Hook on Rear Panel
M10 Thread on Rear Panel to Connect a Clamp to Secure to a Pipe
Wall Mount Slots on Rear Panel | | Control | 3 Operating Modes: Sound Active Mode (with Sound Sensitivity Adjustment), Auto Run Mode (16 Programs with Speed Adjustment), DMX Control
3 DMC Channel Modes: 3, 9, and 13
Master/Slave Set Up
4-Button Menu with Digital Display
With Wired Digital Communication Network | | Connections | PowerCON In/Out to Daisy-Chain Power
RJ45 In/Out DMX Protocol | | Electrical | Input Voltage: 100 to 250 VAC, 50/60 Hz | | Approvals | ETL Approved for 3D Vision Panels only | | Dimensions (L x W x H) | Vision Panels: 3.16 x 15.93 x 13.80" / 8.03 x 40.46 x 35.05 cm | | Weight | Vision Panels: 6.0 lb / 2.7 kg |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 22 owners. Add your rating and experience with the product.
